SPECsfs97_R1.v3 Result

Spinnaker Networks :	SpinServer 4100
SPECsfs97_R1.v3 =	36919 Ops/Sec (Overall Response Time = 1.86 msec)

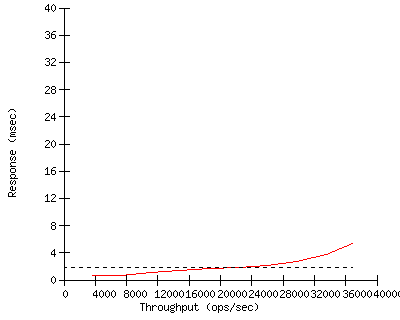

Performance

Throughput (ops/sec)	Response (msec)
3694	0.6
7332	0.7
11096	1.1
14777	1.4
18542	1.7
22270	1.9
25990	2.2
29714	2.7
33536	3.8
36919	5.4

Configuration

Server Configuration and Availability
Vendor	Spinnaker Networks
Hardware Available	June 2003
Software Available	June 2003
Date Tested	May 2003
SFS License Number	84
Licensee Locations	Pittsburgh, PA

CPU, Memory and Power

Model Name SpinServer 4100

Processor 2.8 GHz Intel Xeon

# of Processors 2

Primary Cache 12 K uops I + 8 KB D on-chip

Secondary Cache 512 KB on-chip

Other Cache N/A

UPS APC Smart-UPS 1000

Other Hardware none

Memory Size 4 GB

NVRAM Size 1.7 GB

NVRAM Type UPS backed write cache and mirrored local SCSI drives

NVRAM Description see notes

Server Software

OS Name and Version SpinFS 2.1

Other Software none

File System SpinFS

NFS version 3

Server Tuning

Buffer Cache Size default

# NFS Processes N/A

Fileset Size 352.9 GB

Network Subsystem
Network Type	Jumbo Frame Gigabit Ethernet
Network Controller Desc.	1316-0014-01 (PCI Adapter)
Number Networks	1 (N1)
Number Network Controllers	1
Protocol Type	UDP

Switch Type Extreme Summit 7i

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 1

Number of Disks 80

Number of Filesystems 1

File System Creation Ops default

File System Config 15 RAID-Groups of 5 disks each

Disk Controller 1316-0015-01 (2Gb FC-AL Adapter)

# of Controller Type 1 (dual-ported)

Number of Disks 80

Disk Type 1320-0008-01 (146GB, 10K RPM)

File Systems on Disks F1

Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators	8
Number of Processes per LG	23
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Dell PowerEdge 1550

Number and Type Processors 2x1.0-GHz Pentium III

Memory Size 1024 MB

Operating System Linux 2.4.9-31smp (Red Hat 7.2)

Compiler gcc 2.96

Compiler Options -O -DNO_T_TYPES -DUSE_INTTYPES

Network Type 3COM 3C996-T GigE, MTU=9000

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/../8 LG1 N1 F1 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/../8	LG1	N1	F1	N/A

Other Notes

The system under test was a single SpinServer 4100 with five 16-disk SpinStor 200 Arrays (2 Raid + 3 JBOD)
Both FC ports of the SpinServer 4100 were connected to the disk subsystem for performance and availability.
One RAID array had a single JBOD expansion array. One RAID array had two JBOD expansion arrays.
The two RAID arrays were chained together with redundant FC loops.
The single filesystem, F1, was comprised of 15 RAID-5 sets. Five additional disks were configured as hot spares.
Each RAID set had a strip size of 32 KB.
Server Tunings:
All network ports were set to use jumbo frames (MTU=9000).
All scheduled SpinShot jobs were disabled for reproducibility
Each SpinStor 200 RAID Array utilized dual RAID Controllers, each with 256 MB of battery-backed RAM.
The RAID Controller was configured with a Write-Back cache that switches to Write-Through mode when
the charge level of its battery is below 72 hours.
The SpinServer 4100 has 1.7 Gbytes of UPS backed cache that will survive a power failure or an operating
system crash. In the event of a power failure or low battery condition, the cache is written to
mirrored local SCSI disks. Recovery software restores the cache when power returns. This RAM is not used
by the operating system as general purpose memory but as NVRAM that is dedicated for caching disk reads
and writes. The UPS is guaranteed to have sufficient energy after a battery low condition to
flush the entire contents of the 1.7 GBytes of cache to local drives.
Spinnaker Networks, SpinServer, SpinStor, and SpinFS are trademarks of Spinnaker Networks in the United States.
All other trademarks belong to their respective owners and should be treated as such.

First published at SPEC.org on 10-Jun-2003

LG Type	LG1
LG Model	Dell PowerEdge 1550
Number and Type Processors	2x1.0-GHz Pentium III
Memory Size	1024 MB
Operating System	Linux 2.4.9-31smp (Red Hat 7.2)
Compiler	gcc 2.96
Compiler Options	-O -DNO_T_TYPES -DUSE_INTTYPES
Network Type	3COM 3C996-T GigE, MTU=9000
