SPECsfs97_R1.v3 Result

Procom Technology Inc. :NetFORCE 4200c (Failover Cluster)
SPECsfs97_R1.v3 =33175 Ops/Sec (Overall Response Time = 1.94 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
35601.4
71221.7
105421.7
141071.5
174621.8
209962.1
243342.3
277922.6
312683.1
331753.9

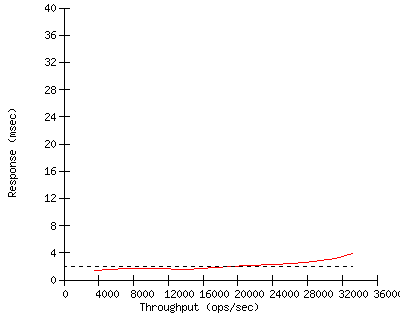

Performance Graph


Configuration

Server Configuration and Availability
Vendor Procom Technology Inc.
Hardware Available May 2003
Software AvailableJune 2003
Date TestedJuly 2003
SFS License Number80
Licensee LocationsIrvine, CA

CPU, Memory and Power
Model Name NetFORCE 4200c (Failover Cluster)
Processor 3.06GHz Xeon (533 MHz Front_side Bus)
# of Processors 2(one per node)
Primary Cache (12KBI + 8KBD) on chip
Secondary Cache 512KB
Other Cache N/A
UPS N/A
Other Hardware Brocade switch(SilkWorm 3200)
Memory Size 8 GB (system Memory:4GB per node)
NVRAM Size 8 GB (RAID controller:4GB per node)
NVRAM Type SDRAM Cache Memory
NVRAM Description3-days battery Protection

Server Software
OS Name and VersionNetFORCE Ver.4.2 M24B76
Other Software None
File System sfs2
NFS version 3

Server Tuning
Buffer Cache Size Default
# NFS Processes 70
Fileset Size 335.8 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. Gigabit Ethernet [PCI,1000Base-SX]
Number Networks 1
Number Network Controllers2 (one per node)
Protocol Type TCP

Switch Type Extreme Summit48i
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4 [Dual ports: two Per node]
Number of Disks 230 (115 per node)
Number of Filesystems 14
File System Creation OpsN/A
File System Config 23 RAID0 group of five disks on each node.

Disk Controller Integrated 2Gb Fibre Channel
# of Controller Type 4 [Model No: BA03052]
Number of Disks 230 (115 per node)
Disk Type Seagate ST3146807FC 146GB 10K RPM
File Systems on Disks Filesystem (vola1 vola2 ... vola7 volb1 volb2 ... volb7)
Special Config Notes See notes below.

Load Generator (LG) Configuration
Number of Load Generators 28
Number of Processes per LG4
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Intel Base
Number and Type ProcessorsPIII 700 MHz
Memory Size 256 MB
Operating System Redhat 7.0
Compiler gcc 2.96
Compiler Options -DNO_T_TYPES-DUSE_INTTYPES
Network Type Intel PCI 100Base-T

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1..14LG_11/vola1, /volb1, /vola2, /volb2; /vola3, /volb3, /vola4, /volb4; /vola5, /volb5, /vola6, /volb6; /vola7, /volb7, /vola1, /volb1; /vola2, /volb2, /vola3, /volb3; ...N/A


Other Notes


Generated on Mon Aug 11 16:27:41 2003 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 05-Aug-2003
