SPECsfs97_R1.v3 Result

Panasas, Inc. :	Panasas ActiveScale storage cluster (60 DirectorBlades)
SPECsfs97_R1.v3 =	305805 Ops/Sec (Overall Response Time = 1.76 msec)

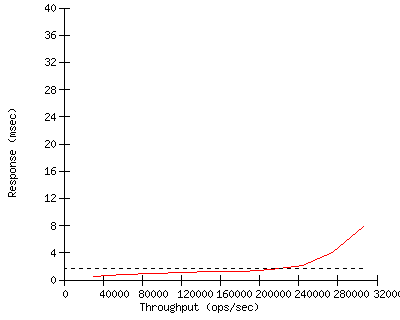

Performance

Throughput (ops/sec)	Response (msec)
29960	0.5
60864	0.8
91010	0.9
120848	1.1
151840	1.2
182446	1.3
212602	1.6
243676	2.1
274040	4.0
305805	7.8

Configuration

Server Configuration and Availability
Vendor	Panasas, Inc.
Hardware Available	October 2003
Software Available	January 2004
Date Tested	October 2003
SFS License Number	250
Licensee Locations	Fremont, CA

CPU, Memory and Power

Model Name Panasas ActiveScale storage cluster (60 DirectorBlades)

Processor 2.4 GHz Intel LV Xeon

# of Processors 60 (1 per DirectorBlade)

Primary Cache 12K uops I + 8KB D on-chip

Secondary Cache 512KB on-chip

Other Cache N/A

UPS Integrated into Panasas Shelf

Other Hardware N/A

Memory Size 240 GB (4 GB per DirectorBlade)

NVRAM Size All memory is UPS protected

NVRAM Type UPS-protected DRAM

NVRAM Description Cache commit with UPS protection, flushed to local disk on failure with recovery software (see notes)

Server Software

OS Name and Version Panasas ActiveScale V 1.2

Other Software N/A

File System Panasas ActiveScale File System

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 3000 (50 per DirectorBlade)

Fileset Size 2900.9 GB

Network Subsystem
Network Type	Gigabit Ethernet (standard 1500 byte frames)
Network Controller Desc.	Integrated Broadcom NetXtreme BCM5703
Number Networks	1 (N1)
Number Network Controllers	60 (1 per DirectorBlade)
Protocol Type	TCP

Switch Type Extreme BlackDiamond 6816

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 60 (each GE NIC is also an iSCSI HBA)

Number of Disks 540 (270 OSD StorageBlades - 2 disks per blade)

Number of Filesystems 60 (see notes)

File System Creation Ops default

File System Config 10 Bladesets, RAID 5 per file, RAID width of 10 blades (see notes)

Disk Controller Integrated Broadcom NetXtreme BCM5703 (as iSCSI HBA and host NIC)

# of Controller Type 18

Number of Disks 324 (162 OSD StorageBlades - 2 disks per blade)

Disk Type 100300-001 240 GB StorageBlade (two 120GB, 7200 RPM, S-ATA disks per blade)

File Systems on Disks V1 .. V36

Special Config Notes see notes

Disk Controller Integrated Broadcom NetXtreme BCM5703 (as iSCSI HBA and host NIC)

# of Controller Type 12

Number of Disks 216 (108 OSD StorageBlades - 2 disks per blade)

Disk Type 100100-001 160 GB StorageBlade (two 80GB, 7200 RPM, ATA/100 disks per blade)

File Systems on Disks V37 .. V60

Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators	45
Number of Processes per LG	60
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model ASA SuperMicro SuperServer

Number and Type Processors 2.4 GHz Intel Pentium 4 Xeon

Memory Size 1024 MB

Operating System Red Hat Linux 7.3, kernel 2.4.21

Compiler gcc 2.96

Compiler Options -O -DNO_T_TYPES -DUSE_INTTYPES

Network Type Intel Pro/1000 Gigabit Ethernet, MTU = 1500

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/../45 LG1 N1 V1, V2, .. V60 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/../45	LG1	N1	V1, V2, .. V60	N/A

Other Notes

Configuration:
The Panasas ActiveScale storage cluster under test was comprised of 270 StorageBlades and 60 DirectorBlades joined over a Gigabit Ethernet network.
Each DirectorBlade contained one processor, 4 GB memory, Gigabit Ethernet port, and local disk providing metadata management to the storage cluster and NFS access to the Panasas ActiveScale filesystem (PanFS).
Each DirectorBlade stores filesystem data and metadata on StorageBlades using the Object-based Storage Device (OSD) protocol which is transported over iSCSI over Gigabit Ethernet.
Each StorageBlade contained one processor, 512 MB memory, Gigabit Ethernet port, and two local disks (RAID 0) storing filesystem objects and running the Object-based Storage Device (OSD) protocol module over Gigabit Ethernet. Total over entire 270 StorageBlades, the storage subsystem contained 270 processors, 135 GB memory, and 270 Gigabit Ethernet ports.
All load generators, DirectorBlades and StorageBlades were interconnected via an Extreme BlackDiamond 6816 with Gigabit Ethernet and standard 1500 byte frames.
Each rack-mounted shelf contained 9 StorageBlades, 2 DirectorBlades, a UPS (redundant power supplies, and a battery), and a Gigabit Ethernet switch card that linked the 11 blade slots to one Gigabit Ethernet uplink.
The cluster was configured with 10 Bladesets, each grouping 27 StorageBlades providing the ability to recover from any single StorageBlade failure in a Bladeset. Each file is split into objects, 10 objects maximum, one object per StorageBlade. RAID 5 is computed over the objects that comprise the file.
Each virtual volume stores objects on any blade in its Bladeset as needed.
The cluster was configured with 60 virtual volumes, 6 virtual volumes per Bladeset. Each virtual volume was a subdirectory of the single namespace mapped under the system root (/V1, /V2 .. /V60)
Each DirectorBlade had the ability to serve any of the volumes over NFS and was the owner of one virtual volume.
Stable Storage:
All memory in the DirectorBlade was used by the system for general purpose memory and dynamically-sized data cache.
There was an integral UPS for each shelf which provides sufficient power in the event of AC power loss to flush the DirectorBlade and StorageBlade caches to their local disks. Recovery software in the DirectorBlade is able to recover all committed data and metadata operations when power is restored.
Uniform Access Requirements (UAR):
Each client uniformly mounted all virtual volumes V1-V60, one process per volume.
db1:/V1, db2:/V2, db3:/V3, db4:/V4, db5:/V5, db6:/V6, db7:/V7, db8:/V8, db9:/V9, db10:/V10,
db11:/V11, db12:/V12, db13:/V13, db14:/V14, db15:/V15, db16:/V16, db17:/V17, db18:/V18, db19:/V19, db20:/V20,
db21:/V21, db22:/V22, db23:/V23, db24:/V24, db25:/V25, db26:/V26, db27:/V27, db28:/V28, db29:/V29, db30:/V30,
db31:/V31, db32:/V32, db33:/V33, db34:/V34, db35:/V35, db36:/V36, db37:/V37, db38:/V38, db39:/V39, db40:/V40,
db41:/V41, db42:/V42, db43:/V43, db44:/V44, db45:/V45, db46:/V46, db47:/V47, db48:/V48, db49:/V49, db50:/V50,
db51:/V51, db52:/V52, db53:/V53, db54:/V54, db55:/V55, db56:/V56, db57:/V57, db58:/V58, db59:/V59, db60:/V60.
This mounting pattern assured that all DirectorBlades and all StorageBlades observed uniform load from all clients.
The single namespace UAR requirement was not met by the configuration of this SPECsfs97_R1 test, even though the system under test is a single namespace cluster. Accordingly, we report this test as a 60 filesystem cluster, consistent with other multiple node tests in systems without single namespace capabilities.
Panasas, ActiveScale storage cluster, PanFS, DirectorBlade, and StorageBlade are trademarks of Panasas, Inc.

First published at SPEC.org on 10-Dec-2003

LG Type	LG1
LG Model	ASA SuperMicro SuperServer
Number and Type Processors	2.4 GHz Intel Pentium 4 Xeon
Memory Size	1024 MB
Operating System	Red Hat Linux 7.3, kernel 2.4.21
Compiler	gcc 2.96
Compiler Options	-O -DNO_T_TYPES -DUSE_INTTYPES
Network Type	Intel Pro/1000 Gigabit Ethernet, MTU = 1500
