SPECsfs97_R1.v3 Result

Sun Microsystems, Inc. :	Sun Fire V250
SPECsfs97_R1.v3 =	17613 Ops/Sec (Overall Response Time = 1.75 msec)

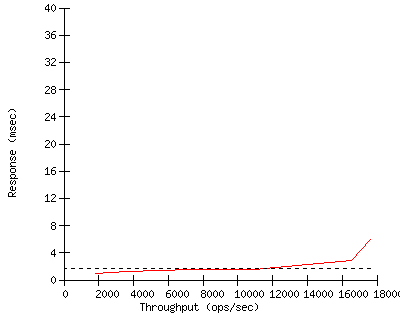

Performance

Throughput (ops/sec)	Response (msec)
1818	0.9
3641	1.3
5470	1.4
7296	1.6
9137	1.5
10983	1.6
12816	2.0
14663	2.4
16519	2.9
17613	5.9

Configuration

Server Configuration and Availability
Vendor	Sun Microsystems, Inc.
Hardware Available	October 2003
Software Available	December 2003
Date Tested	December 2003
SFS License Number	6
Licensee Locations	Santa Clara, CA

CPU, Memory and Power

Model Name Sun Fire V250

Processor 1.28GHz UltraSPARC IIIi

# of Processors 2

Primary Cache 32KBI + 64KBD on chip

Secondary Cache 1MB on chip

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 8 GB

NVRAM Size 8 GB (1 GB per Sun StorEdge 6020 RAID Controller)

NVRAM Type Sun StorEdge 6020 write cache

NVRAM Description auto-sensing WB/WT depending on battery charge

Server Software

OS Name and Version Solaris 9 12/03

Other Software N/A

File System UFS

NFS version 3

Server Tuning

Buffer Cache Size dynamic

# NFS Processes dynamic, up to a maximum of 1024

Fileset Size 174.1 GB

Network Subsystem
Network Type	on-board 10/100/1000-Mbps BaseT
Network Controller Desc.	Gigabit Ethernet
Number Networks	1 (N1)
Number Network Controllers	1
Protocol Type	UDP

Switch Type Extreme / Summit 7i (fibre) and Asante GX5-2400 (copper)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 3 (1 on-board Ultra 160 SCSI, 2 PCI Dual FC Adptrs)

Number of Disks 113

Number of Filesystems 16 (F1-F16)

File System Creation Ops default

File System Config (2) 230GB file systems per 14-disk RAID0 LUN

Disk Controller On-board Ultra160 SCSI

# of Controller Type 1

Number of Disks 1

Disk Type Seagate Cheetah 36GB 10K rpm (ST-336607LW)

File Systems on Disks OS, swap

Special Config Notes N/A

Disk Controller Sun StorEdge 2Gb PCI Dual FC Network Adapter

# of Controller Type 2

Number of Disks 112

Disk Type Seagate Cheetah 36GB 15K rpm (ST-336753FC)

File Systems on Disks F1-8,F9-16

Special Config Notes 4 file systems on 2 RAID 0 LUNs per Sun StorEdge 6120HA Array (see Other Notes)

Load Generator (LG) Configuration
Number of Load Generators	3
Number of Processes per LG	32
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Sun Enterprise 420R

Number and Type Processors 4x450MHz UltraSPARC II

Memory Size 4GB

Operating System Solaris 9 8/03

Compiler Forte Developer 7 C 5.4 2002/03/09

Compiler Options -xarch=v9 -DPORTMAP -lm -lsocket -lnsl

Network Type Sun GigabitEthernet PCI adapter 2.0

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1,2,3 LG1 N1 /F1-16, /F1-16 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1,2,3	LG1	N1	/F1-16, /F1-16	N/A

Other Notes

Tuning:
rlim_fd_max=70000, rlim_fd_cur=70000, autoup=600, tune_t_fsflushr=10
maxphys=1048576, maxusers=2048, lotsfree=1024, tcp_conn_hash_size=262144
bufhwm=1048576, ncsize=2097152, ufs_ninode=1048576, segmap_percent=70
ufs_HW=4194304, ufs_LW=1048576
There were 2 Sun StorEdge 2Gb PCI Dual FC Network Adapters in the
tested configuration. Each connects to 2 Sun FCAL 7-port hubs.
Both channels of a Sun StorEdge 6120HA array are connected to each
hub, for a total of 4 Sun StorEdge 6120HA arrays in the tested
configuration, 2 Sun StorEdge 6120HA arrays per Sun StorEdge 2Gb Dual
FC Network Adapter.
Each Sun StorEdge 6120HA array consists of 2 6020 subarrays of 14
disks each, configured as one RAID 0 LUN striped across 14 disks. Two
file systems were configured on each RAID 0 LUN.
Sun StorEdge 6120HA arrays include redundant batteries with
sufficient capacity to allow an orderly shutdown of the array in
the case of AC power loss. In case AC power is lost, the array
will run from the batteries for a time sufficient to flush all data
in its cache to disk, after which the array will shutdown.

First published at SPEC.org on 05-Feb-2004

LG Type	LG1
LG Model	Sun Enterprise 420R
Number and Type Processors	4x450MHz UltraSPARC II
Memory Size	4GB
Operating System	Solaris 9 8/03
Compiler	Forte Developer 7 C 5.4 2002/03/09
Compiler Options	-xarch=v9 -DPORTMAP -lm -lsocket -lnsl
Network Type	Sun GigabitEthernet PCI adapter 2.0
