SPECsfs97_R1.v3 Result

Hitachi Data Systems :Lightning NAS Blade - 2 Cluster
SPECsfs97_R1.v3 =72650 Ops/Sec (Overall Response Time = 2.16 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
72061.7
145121.8
217181.7
290921.6
365471.5
438351.6
512311.9
585962.5
656533.9
726507.1

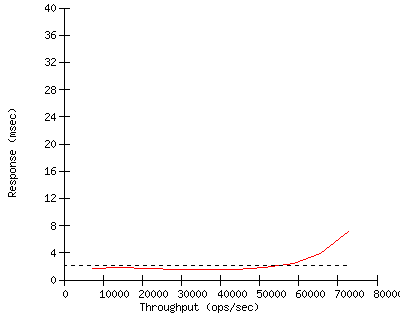

Performance Graph


Configuration

Server Configuration and Availability
Vendor Hitachi Data Systems
Hardware Available Nov 2003
Software AvailableNov 2003
Date TestedNov 2003
SFS License Number45
Licensee LocationsSan Diego, USA

CPU, Memory and Power
Model Name Lightning NAS Blade - 2 Cluster
Processor Intel Pentium-IV Xeon 1.60Ghz
# of Processors 4 cores, 4 chips, 1 core/chip (1 per NAS Blade)
Primary Cache 12KB (I + 8KB D) on chip
Secondary Cache 512KB (I + D) on chip
Other Cache N/A
UPS Integrated into Lightning 9980V System
Other Hardware N/A
Memory Size 79448MB (9980V Cache + NAS Embedded Cache - See Notes)
NVRAM Size 65536MB (9980V Cache)
NVRAM Type UPS-Protected DRAM
NVRAM DescriptionSee Notes

Server Software
OS Name and VersionNAS Software Version 02.00 (based on Linux kernel 2.4.17)
Other Software N/A
File System HIXFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 512 (128 per NAS Blade)
Fileset Size 696.3 GB

Network Subsystem
Network Type Gigabit Ethernet : Jumbo Frame Gigabit (9000 byte frames)
Network Controller Desc. Intel PRO/1000MT (2 per NAS Blade)
Number Networks 1
Number Network Controllers4 Ethernet Ports (See Notes)
Protocol Type UDP

Switch Type Cisco Catalyst 6506
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 1
Number of Disks 128
Number of Filesystems 32 (fs00, fs01, .., fs31)
File System Creation Opsdefault
File System Config RAID Level 0+1, 128 Physical Disks, 4 Disks per File System

Disk Controller Integrated into Lightning NAS Blade
# of Controller Type 1
Number of Disks 128
Disk Type Hitachi DKR2D-J072FC, 72GB 10K RPM
File Systems on Disks fs00, fs01, .., fs31
Special Config Notes See Notes

Load Generator (LG) Configuration
Number of Load Generators 4
Number of Processes per LG128
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Dell PowerEdge1750
Number and Type Processors2 x 2.4GHz Xeon
Memory Size 1GB Memory
Operating System Linux Redhat 7.2
Compiler gcc 2.95.2
Compiler Options default
Network Type Intel PRO/1000MT 1000BASE-T

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1..4LG1N1fs00, fs01, .., fs31N/A


Other Notes


Generated on Thu Apr 14 14:55:28 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 06-Jul-2004
