SPECsfs97_R1.v3 Result

Exanet Inc. :ExaStore EX600FC
SPECsfs97_R1.v3 =203182 Ops/Sec (Overall Response Time = 1.08 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
201280.6
403540.8
608150.8
810590.8
1015960.9
1218011.1
1425071.2
1627511.5
1830321.8
2031822.6

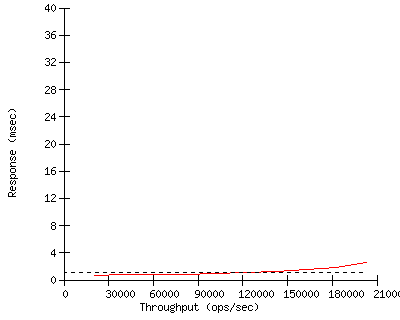

Performance Graph


Configuration

Server Configuration and Availability
Vendor Exanet Inc.
Hardware Available Sep 2004
Software AvailableOct 2004
Date TestedSep 2004
SFS License Number211
Licensee LocationsHertzlia, Israel

CPU, Memory and Power
Model Name ExaStore EX600FC
Processor Intel(R) Xeon(TM) CPU 3.20GHz
# of Processors 12 cores, 12 chips, 1 core/chip
Primary Cache 12 K uops I + 8 KBD on chip
Secondary Cache 512KB(I+D) on chip
Other Cache L3 2048 KB
UPS APC SmartUPS 10001U
Other Hardware None
Memory Size 72 GB (12 GB per node)
NVRAM Size 84 GB (all node memory is UPS protected, and 1 GB per 2882 storage controller)
NVRAM Type Node: UPS-protected DRAM, Storage Controller: Battery-backed RAM
NVRAM DescriptionSee notes

Server Software
OS Name and VersionExaOS V2.0
Other Software N/A
File System ExaFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 24 (4 per node)
Fileset Size 1934.0 GB

Network Subsystem
Network Type Jumbo Frame Gigabit Ethernet (MTU 9000)
Network Controller Desc. Intel(R) PRO/1000 MT Dual Port Server Adapter
Number Networks 2 (N1 - Server, N2 - Cluster)
Number Network Controllers12 (2 per nodes: 2 ports server, 2 ports cluster)
Protocol Type UDP

Switch Type Nortel Baystack 5510 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 12 (2 per node)
Number of Disks 348
Number of Filesystems 1 (F1)
File System Creation Opsdefault
File System Config 24 RAID-Groups of 14 disks each

Disk Controller Adaptec ZCR (zero-channel RAID) 2010S
# of Controller Type 6 (1 per node)
Number of Disks 12 (2 per node)
Disk Type Fujitsu 36 GB 10K RPM
File Systems on Disks OS, write cache dump files
Special Config Notes N/A

Disk Controller Fibre Channel: QLogic Corp. QLA2342 Dual Port Fibre Channel Adapter
# of Controller Type 6 (1 per node, dual ported)
Number of Disks 336
Disk Type Seagate Cheetah ST 373453 FC 73GB 15K RPM
File Systems on Disks F1
Special Config Notes See notes

Load Generator (LG) Configuration
Number of Load Generators 24
Number of Processes per LG24
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model SuperServer 5013C-T
Number and Type Processors1x2.8 GHz Pentium 4, 1MB cache
Memory Size 1024 MB
Operating System Linux 2.4
Compiler gcc 3.2
Compiler Options -g -DNO_T_TYPES -DUSE_INTTYPES -DLinux
Network Type Intel e1000 Gigabit Ethernet, MTU = 9000

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../24LG1N1F1N/A


Other Notes


Generated on Wed Oct 13 14:29:53 2004 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 13-Oct-2004
