SPECsfs97_R1.v3 Result

Sun Microsystems, Inc. :	Sun StorageTek 5320C NAS
SPECsfs97_R1.v3 =	53548 Ops/Sec (Overall Response Time = 2.53 msec)

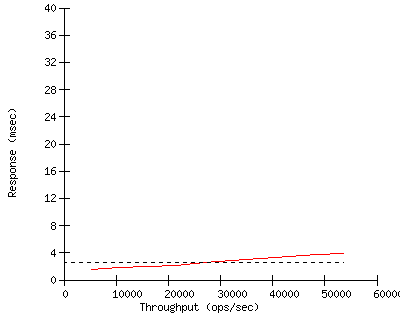

Performance

Throughput (ops/sec)	Response (msec)
5367	1.5
10728	1.8
16027	2.0
21520	2.2
26897	2.6
32322	2.9
37711	3.2
43209	3.5
48455	3.7
53548	3.9

Configuration

Server Configuration and Availability
Vendor	Sun Microsystems, Inc.
Hardware Available	July 2006
Software Available	July 2006
Date Tested	June 2006
SFS License Number	6
Licensee Locations	Irvine, CA

CPU, Memory and Power

Model Name Sun StorageTek 5320C NAS

Processor AMD 2.6GHz Opteron(TM) 252 processor

# of Processors 2 cores, 2 chips, 1 core/chip (1 core per node)

Primary Cache 64 KB I + 64 KB D on chip per chip

Secondary Cache 1MB (I+D) on chip per chip

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 8 GB (4GB per node)

NVRAM Size 8 GB (2GB per 5320 RAID EU controller tray)

NVRAM Type Sun StorageTek 5320 RAID EU

NVRAM Description Write-Back with battery backup

Server Software

OS Name and Version Sun StorageTek NAS OS Ver 4.20B63

Other Software N/A

File System N/A

NFS version 3

Server Tuning

Buffer Cache Size Default

# NFS Processes 240 (120 per node)

Fileset Size 512.5 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	Integrated Gigabit Ethernet
Number Networks	2 (N1 - Service, N2 - Cluster)
Number Network Controllers	4 (2 per node)
Protocol Type	TCP

Switch Type Cisco Catalyst 4000 and Summit 5i.(See notes)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 4( Dual port) (2 per node)

Number of Disks 352

Number of Filesystems 88 (Node 1:F1-F44, Node 2: F45-F88)

File System Creation Ops default

File System Config each R5 LUN houses (1) 252GB file system

Disk Controller 5320 RAID EU controller

# of Controller Type 4

Number of Disks 352

Disk Type Seagate ST314680F 146GB 10k RPM FC

File Systems on Disks F1-F88 (Alternating accross each controller.)

Special Config Notes 88 3+1 RAID 5 LUNs( See notes)

Load Generator (LG) Configuration
Number of Load Generators	22
Number of Processes per LG	8
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Intel Base

Number and Type Processors 2.4 GHz P4

Memory Size 1GB

Operating System Redhat 9.0

Compiler gcc (GCC) 3.2.2 20030222 (RedHat linux 3.2.2-5)

Compiler Options Default

Network Type Intel embedded Gigabit Ethernet Controller

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1,12 LG1 N1 /F1-4,/F45-48 N/A

2,13 LG1 N1 /F5-8,/F49-52 N/A

3,14 LG1 N1 /F9-12,/F53-56 N/A

4,15 LG1 N1 /F13-16,/F57-60 N/A

5,16 LG1 N1 /F17-20,/F61-64 N/A

6,17 LG1 N1 /F21-24,/F65-68 N/A

7,18 LG1 N1 /F25-28,/F69-72

8,19 LG1 N1 /F29-32,/F73-76 N/A

9,20 LG1 N1 /F33-36,/F77-80 N/A

10,21 LG1 N1 /F37-40,/F81-84 N/A

11,22 LG1 N1 /F41-44,/F85-88 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1,12	LG1	N1	/F1-4,/F45-48	N/A
2,13	LG1	N1	/F5-8,/F49-52	N/A
3,14	LG1	N1	/F9-12,/F53-56	N/A
4,15	LG1	N1	/F13-16,/F57-60	N/A
5,16	LG1	N1	/F17-20,/F61-64	N/A
6,17	LG1	N1	/F21-24,/F65-68	N/A
7,18	LG1	N1	/F25-28,/F69-72
8,19	LG1	N1	/F29-32,/F73-76	N/A
9,20	LG1	N1	/F33-36,/F77-80	N/A
10,21	LG1	N1	/F37-40,/F81-84	N/A
11,22	LG1	N1	/F41-44,/F85-88	N/A

Other Notes

OS Tuning:
Checkpoint disabled on all volumes: disabled via menu
NFS worker threads set to 120: set nfs.nworker 120
Disable system monitor: set sysmon.test.enable yes
Disable directory audit: =sfs2_no_dir_audit=1
Disable file system read ahead: =sfs2_nrax=0
Disable file system access time update: fsctl atime disable *
Maximum queued HBA commands limited to 128: set qlogic.isp.maxthrottle 128
The storage subsystem consists of (4) dual-controller Sun StorageTek
NAS 5320 RAID EU controller trays with cache mirroring disabled,
and (20) Sun StorageTek NAS 5320 RAID EU F expansion trays, totalling
352 drives. (88) 3+1 RAID 5 LUNs are configured.
All LUNs are available to both NAS heads
via the SAN switches, with each head having primary server
responsibility for (44) LUNs. (2) Brocade Silkworm 4100 and 3900
switches instantiate the fabric. In the case that a NAS head fails,
the remaining head automatically assumes responsibility for LUNs
belonging to the failed head.
There are (88) LUNs.Node 1: F1 is on first port of first controller,F2 is on first port of second controller,
F3 is on second port of first controller, F4 is on second port of second controller, and etc.
Node 2: F45 is on first port of first controller,F46 is on first port of second controller,
F47 is on second port of first controller, F48 is on second port of second controller, and etc.
Each 252GB file system is built from a
single segment, with each segment residing on one RAID5 LUN, (1) file
system per LUN.
the Ethernet switches are interconnected thought single Gigabit port.
There are eleven clients and a cluster node on each one.
One port goes to each of the FC switches from each dual HBA.
Controller arrays provide battery-backed cache memory. In the
case that line power is lost, battery power is sufficient to
preserve cache contents for 72 hours minimum. If the batteries
are depleted to the extent that they cannot maintain memory for
72 hours, the controller will automatically switch to write-
through mode.
The tested system is a failover cluster composed of (2) nodes.
There are (2) gigabit ports per node. (1) port is used for
heartbeat and administration. The other port is used for file
system serving. Each node is the owner of (44) file systems and
has the capability of taking over the partner node file system
The network under test utilized GigaBit ethernet with standard frame size.

First published at SPEC.org on 21-Jul-2006

LG Type	LG1
LG Model	Intel Base
Number and Type Processors	2.4 GHz P4
Memory Size	1GB
Operating System	Redhat 9.0
Compiler	gcc (GCC) 3.2.2 20030222 (RedHat linux 3.2.2-5)
Compiler Options	Default
Network Type	Intel embedded Gigabit Ethernet Controller
