SPECsfs97_R1.v3 Result

Hitachi Data Systems :Hitachi High performance NAS Platform 2200, 2 node active/active cluster
SPECsfs97_R1.v3 =192915 Ops/Sec (Overall Response Time = 1.72 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
202050.5
401840.8
606391.0
808871.2
1013971.5
1215331.8
1420562.2
1626322.9
1825994.0
1929155.6

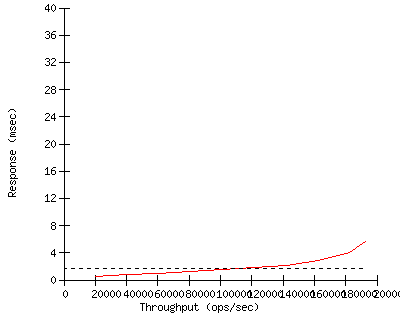

Performance Graph


Configuration

Server Configuration and Availability
Vendor Hitachi Data Systems
Hardware Available February 2006
Software AvailableMarch 2007
Date TestedMay 2007
SFS License Number0000xx
Licensee LocationsSanta Clara, CA

CPU, Memory and Power
Model Name Hitachi High performance NAS Platform 2200, 2 node active/active cluster
Processor 1.2 GHz PPC 7457B + FPGAs
# of Processors 2 core, 2 chip, 1 core/chip + 14 FPGAs
Primary Cache 64KBD(I+D) on chip per cpu
Secondary Cache 512KB(I+D) on chip per cpu
Other Cache 16 GB in Hitachi High performance NAS Platform servers
UPS N/A
Other Hardware Redundant Brocade 4100 FC switches between Hitachi High performance NAS Platform server and USP 1100
Memory Size 47.6 GB in Hitachi High performance NAS Platform servers (not including other_cache_size and NVRAM), 80 GB in HDS USP 1100
NVRAM Size 4 GB in Hitachi High performance NAS Platform servers
NVRAM Type DIMM
NVRAM Description72 hour battery backed

Server Software
OS Name and VersionSU 4.3
Other Software N/A
File System BlueArc Silicon File System with Cluster Name Space (CNS)
NFS version 3

Server Tuning
Buffer Cache Size N/A
# NFS Processes N/A
Fileset Size 1933.8 GB

Network Subsystem
Network Type Integrated
Network Controller Desc. 6-port, 1Gbps Ethernet, aggregated
Number Networks 1 (N1)
Number Network Controllers2
Protocol Type TCP

Switch Type Two stacked Dell PowerConnect 6248 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4
Number of Disks 384
Number of Filesystems 1 namespace (NS1,see notes)
File System Creation Ops4KB block size
File System Config 16 Individual file system volumes (v0...v15) aggregated using CNS to present a single, unified namespace (/r), 8 volumes per node

Disk Controller Integrated quad port 4Gbps FC
# of Controller Type 2
Number of Disks 192
Disk Type Seagate Cheetah 146GB 15K RPM
File Systems on Disks NS1 = /r
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 28
Number of Processes per LG32
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model AMAX 1U
Number and Type Processors2x2.8 GHz Xeon
Memory Size 1 GB
Operating System Linux Fedora Core 5
Compiler SFS97_R1 precompiled binaries
Compiler Options N/A
Network Type Integrated Intel Pro/1000MT

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
2LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
3LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
4LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
5LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
6LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
7LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
8LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
9LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
10LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
11LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
12LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
13LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
14LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
15LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
16LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
17LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
18LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
19LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
20LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
21LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
22LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
23LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
24LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
25LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
26LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A
27LG1N1/r/v0, /r/v0, /r/v0, /r/v0, /r/v1, /r/v1, /r/v1, /r/v1, /r/v2, /r/v2, /r/v2, /r/v2, /r/v3, /r/v3, /r/v3, /r/v3, /r/v4, /r/v4, /r/v4, /r/v4, /r/v5, /r/v5, /r/v5, /r/v5, /r/v6, /r/v6, /r/v6, /r/v6, /r/v7, /r/v7, /r/v7, /r/v7N/A
28LG1N1/r/v8, /r/v8, /r/v8, /r/v8, /r/v9, /r/v9, /r/v9, /r/v9, /r/v10, /r/v10, /r/v10, /r/v10, /r/v11, /r/v11, /r/v11, /r/v11, /r/v12, /r/v12, /r/v12, /r/v12, /r/v13, /r/v13, /r/v13, /r/v13, /r/v14, /r/v14, /r/v14, /r/v14, /r/v15, /r/v15, /r/v15, /r/v15N/A


Other Notes


Generated on Tue Jul 31 18:44:23 2007 by SPEC SFS97 HTML Formatter
Copyright © 1997-2007 Standard Performance Evaluation Corporation

First published at SPEC.org on 03-Jul-2007
