SPECweb96 Result

Dell Computer Corp.:PowerEdge 4400/800
Microsoft:IIS 5.0 and SWC 2.0
SPECweb96 = 10800


Performance

Throughput
(ops/sec)
Response
(msec)
10804.6
21604.8
32405.1
43205.4
54005.7
64806.2
75586.5
86425.9
97205.9
108007.1

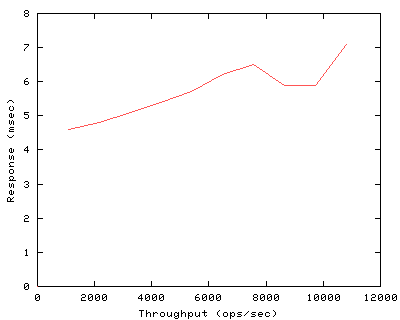

Performance Graph


Configuration

Availability Dates
Hardware Feb-2000
HTTP Software Feb-2000
Operating SystemFeb-2000

Hardware
Vendor Dell Computer Corp.
Model PowerEdge 4400/800
Processor 800MHz Pentium III
# of Processors 1
Primary Cache 16KBI+16KBD on chip
Secondary Cache 256KB(I+D) ATC
Other Cache
Memory 4GB
Disk Subsystem 5 9GB 10K RPM Drive
Disk ControllersOnboard Adaptec Ultra-SCSI
Other Hardware 4 Alteon ACEswitch 180

Software
Operating SystemWindows 2000 Advanced Server
File System TypeNTFS
Other Software None

HTTP Software
Vendor Microsoft
HTTP Software IIS 5.0 and SWC 2.0
# of "threads" 1
Server Cache Microsoft Scalable Web Cache 2.0
Log Mode Binary CLF

Test Sponsor
Test Date Feb-2000
Tested By Dell Computer Corp.
SPEC License55

Network
# of Controllers 3
Network ControllersAlteon ACEnic PCI
# of Nets 3
Type of Nets Jumbo Frame Gigabit
Network Speed 1000Mb/s
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators15
# of Processes Each 7
Model Dell Precision 410
Processor 450MHz PentiumII
# of Processors 2
Memory 128MB
Network Controller Alteon ACEnic PCI
Operating System Microsoft Windows 2000 Professional
Compiler Microsoft Visual C++ 5.0

Benchmark Configuration
Maximum Requested Load 10800
Maximum Fileset Size (MB)2270


Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
10801080035.0%35.0%0.00%3.707.75
150.0%50.0%0.00%4.1425.64
214.0%14.0%0.00%7.1126.14
31.0%1.0%0.00%22.1736.96
21602160035.0%35.0%0.00%4.0011.42
150.0%50.0%0.00%4.3115.54
214.0%14.0%0.00%7.4525.62
31.0%1.0%0.00%23.0340.83
32403240035.0%35.0%0.00%4.2414.82
150.0%50.0%0.00%4.5617.33
214.0%14.0%0.00%7.6525.49
31.0%1.0%0.00%23.1933.18
43204320035.0%35.0%0.00%4.4915.11
150.0%50.0%0.00%4.8618.64
214.0%14.0%0.00%7.9729.15
31.0%1.0%0.00%23.9744.32
54005400035.0%35.0%0.00%4.8213.73
150.0%50.0%0.00%5.2217.81
214.0%14.0%0.00%8.2828.61
31.0%1.0%0.00%24.4841.10
64806480035.0%35.0%0.00%5.2615.12
150.0%50.0%0.00%5.7118.83
214.0%14.0%0.00%8.6626.22
31.0%1.0%0.00%25.4032.58
75607558035.0%35.0%0.00%5.5614.90
150.0%50.0%0.00%6.0317.56
214.0%14.0%0.00%8.9425.24
31.0%1.0%0.00%26.2540.06
86408642035.0%35.0%0.00%5.0013.24
150.0%50.0%0.00%5.3815.43
214.0%14.0%0.00%8.5825.25
31.0%1.0%0.00%25.7641.44
97209720035.0%35.0%0.00%5.0011.70
150.0%50.0%0.00%5.3614.51
214.0%14.0%0.00%8.6223.12
31.0%1.0%0.00%25.7635.46
1080010800035.0%35.0%0.00%6.1011.27
150.0%50.0%0.00%6.5114.43
214.0%14.0%0.00%9.9525.09
31.0%1.0%0.00%28.6144.45


Tue Mar 7 13:55:42 2000

First published at SPEC.org on 22-Feb-2000
