SPECweb96 Result

IBM:RS/6000 43P-260
Zeus Technology Ltd:Zeus 1.3.3
SPECweb96 = 2654


Performance

Throughput
(ops/sec)
Response
(msec)
2755.8
5506.0
8255.9
11006.5
13756.9
16507.7
19258.8
220010.4
247513.4
265427.0

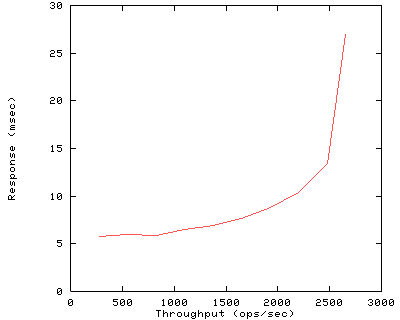

Performance Graph


Configuration

Availability Dates
Hardware Oct-98
HTTP Software Oct-98
Operating SystemFeb-99

Hardware
Vendor IBM
Model RS/6000 43P-260
Processor 200 MHz Power-3 630
# of Processors 2
Primary Cache 32KBI+64KBD on chip
Secondary Cache 4MB(I+D) off chip
Other Cache None
Memory 4096MB
Disk Subsystem 3 9.1GB 16 Bits SCSI Disk Drive
Disk ControllersWide/Fast-20 SCSI I/O Controller
Other Hardware ForeRunner LE 155 ATM Switch

Software
Operating SystemAIX 4.3.2
File System TypeJFS
Other Software None

HTTP Software
Vendor Zeus Technology Ltd
HTTP Software Zeus 1.3.3
# of "threads" 3
Server Cache See Below
Log Mode Common Log Format

Test Sponsor
Test Date Oct-98
Tested By IBM Austin
SPEC License11

Network
# of Controllers 3
Network ControllersIBM PCI 155 Mbps ATM Adapter
# of Nets 3
Type of Nets ATM
Network Speed 155 Mb/sec
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators6
# of Processes Each 12
Model RS/6000 7043-240
Processor 233 MHz PwrPC 604e
# of Processors 2
Memory 256MB
Network Controller IBM PCI 155 Mbps ATM
Operating System AIX 4.3.2
Compiler IBM Cset++ Version 3.1.3

Benchmark Configuration
Maximum Requested Load 2750
Maximum Fileset Size (MB)1147


Notes

OS Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
275275035.0%35.0%0.00%4.456.59
150.0%50.0%0.00%5.077.00
214.0%14.0%0.00%9.199.83
31.0%1.0%0.00%40.3039.30
550550035.0%35.0%0.00%4.606.58
150.0%50.0%0.00%5.257.01
214.0%14.0%0.00%9.4910.01
31.0%1.0%0.00%43.1342.32
825825035.0%35.0%0.00%4.376.49
150.0%50.0%0.00%5.066.94
214.0%14.0%0.00%9.7010.28
31.0%1.0%0.00%45.9545.60
11001100035.0%35.0%0.00%4.906.96
150.0%50.0%0.00%5.597.39
214.0%14.0%0.00%10.6111.20
31.0%1.0%0.00%50.7450.52
13751375035.0%35.0%0.00%5.207.34
150.0%50.0%0.00%5.917.77
214.0%14.0%0.00%11.1911.96
31.0%1.0%0.00%55.2755.58
16501650035.0%35.0%0.00%5.857.97
150.0%50.0%0.00%6.568.36
214.0%14.0%0.00%12.3213.15
31.0%1.0%0.00%61.7462.20
19251925035.0%35.0%0.00%6.889.46
150.0%50.0%0.00%7.559.63
214.0%14.0%0.00%13.9415.07
31.0%1.0%0.00%70.0071.41
22002200035.0%35.0%0.00%8.2410.75
150.0%50.0%0.00%8.9111.13
214.0%14.0%0.00%16.0717.51
31.0%1.0%0.00%81.6483.32
24752475035.0%35.0%0.00%10.8713.50
150.0%50.0%0.00%11.5313.98
214.0%14.0%0.00%20.0121.39
31.0%1.0%0.00%103.40106.74
27502654035.0%35.0%0.00%23.0525.36
150.0%50.0%0.00%23.5825.64
214.0%14.0%0.00%35.0036.45
31.0%1.0%0.00%225.29242.26


Tue Nov 10 14:53:59 1998

First published at SPEC.org on 03-Nov-1998
