SPECweb96 Result

Hewlett-Packard:	NetServer LXr 8000
Hewlett-Packard/Microsoft:	IIS 4.0 and NetServer Web Cache v1.0

SPECweb96 = 3606

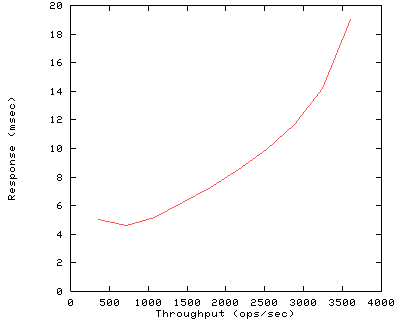

Performance

Throughput (ops/sec)	Response (msec)
360	5.0
721	4.6
1081	5.2
1442	6.2
1802	7.3
2163	8.5
2523	9.9
2884	11.7
3245	14.2
3606	19.0

Configuration

Availability Dates
Hardware	Nov-98
HTTP Software	May-99
Operating System	Oct-98

Hardware

Vendor Hewlett-Packard

Model NetServer LXr 8000

Processor Pentium II Xeon 400MHz

# of Processors 2

Primary Cache 16KBI+16KBD on chip

Secondary Cache 1MB(I+D) off chip

Other Cache None

Memory 2.0 GB

Disk Subsystem 5 4GB 10K RPM Drive

Disk Controllers 1 Ultra2 SCSI

Other Hardware

Software

Operating System Microsoft Windows NT Server 4.0 EE SP 4

File System Type NTFS

Other Software None

HTTP Software

Vendor Hewlett-Packard/Microsoft

HTTP Software IIS 4.0 and NetServer Web Cache v1.0

# of "threads" 1

Server Cache HP NetServer Web Cache v1.0

Log Mode Binary CLF

Test Sponsor
Test Date	Oct-98
Tested By	Hewlett-Packard
SPEC License	3

Network

# of Controllers 6

Network Controllers DEC DEFPA-MB

# of Nets 6

Type of Nets FDDI over UTP

Network Speed 100Mb/s

MSL (sec) 30 (Non RFC1122)

Time-Wait (sec) 60 (Non RFC1122)

Load Generators

# of Load Generators 6

# of Processes Each 24

Model Hewlett-Packard Kayak XU

Processor Pentium II 450MHz

# of Processors 2

Memory 128MB

Network Controller DEC DEFPA FDDI over UTP

Operating System Microsoft Windows NT Workstation 4.0 SP 4

Compiler Microsoft Visual C++ 5.0

Benchmark Configuration

Maximum Requested Load 3605

Maximum Fileset Size (MB) 1313

Notes

Network Notes

The DEC DEFPA-MB cards are dual attach station (DAS) FDDI over category 5 twisted pair.
No hubs were employed, each of the 10 networks is connected as a ring using both attachments.
Each network included one card in the SUT and one of the clients.
client 1(prime) on 1st segment, client 2 on 2nd segment, client 3 on 3rd segment, and so on .
MTU size = 4352 bytes

Other Notes

Using Microsoft Internet Information Server 4.0 and HP NetServer Web Cache v1.0
Performance Boost for Foreground Application=NONE ---Do not raise the priority of the foreground application, default is halfway.
Disable IIS Windows NT Challenge/Response ---Disables IIS user information encryption, default is enabled.
Added Registry Entry Tcpip/Parameters/MaxFreeTcbs=0x53020 ---Increases the TCB timewait table to 340000 entries, default is 2000.
Added Registry Entry Tcpip/Parameters/MaxHashTableSize=0x10000 ---Sets TCB hash table size to 65,536 entries, default is 512.
Added Registry Entry Tcpip/Parameters/TcpTimedWaitDelay=0x3c ---Sets TIME_WAIT parameter to 60 seconds (non-RFC 1122), default is 240.
Set NDIS/Parameters/ProcessorAffinityMask to 0 ---Forces processor that handled interrupt to also handle that DPC, default is any processor.
One 4GB 7200RPM disk for OS, 4 4GB 10KRPM disk for web pages and logs and pagefile.
Network interrupts affinitized as follows: NICs 1, 3 and 5 to processor 0, NICs 2, 4 and 6 to 1

Test Run Details

Detailed Statistics
Load	Throughput	Class	Target Mix	Actual Mix	Error Percent	Mean Response	Std Dev Response
360	360	0	35.0%	35.1%	0.00%	3.30	4.02
		1	50.0%	49.9%	0.00%	3.86	4.40
		2	14.0%	14.0%	0.00%	10.04	11.17
		3	1.0%	1.0%	0.00%	53.67	54.44
721	721	0	35.0%	35.0%	0.00%	2.94	3.42
		1	50.0%	50.0%	0.00%	3.52	3.84
		2	14.0%	14.0%	0.00%	9.20	9.71
		3	1.0%	1.0%	0.00%	49.48	48.75
1081	1081	0	35.0%	35.0%	0.00%	3.50	4.10
		1	50.0%	50.0%	0.00%	4.04	4.46
		2	14.0%	14.0%	0.00%	10.24	11.08
		3	1.0%	1.0%	0.00%	52.60	52.22
1442	1442	0	35.0%	35.0%	0.00%	4.37	5.01
		1	50.0%	50.0%	0.00%	4.87	5.37
		2	14.0%	14.0%	0.00%	11.83	12.97
		3	1.0%	1.0%	0.00%	56.29	56.30
1802	1802	0	35.0%	35.0%	0.00%	5.29	6.03
		1	50.0%	50.0%	0.00%	5.74	6.34
		2	14.0%	14.0%	0.00%	13.69	15.21
		3	1.0%	1.0%	0.00%	61.28	61.77
2163	2163	0	35.0%	35.0%	0.00%	6.38	7.16
		1	50.0%	50.0%	0.00%	6.81	7.48
		2	14.0%	14.0%	0.00%	15.78	17.50
		3	1.0%	1.0%	0.00%	66.63	67.55
2523	2523	0	35.0%	35.0%	0.00%	7.58	8.38
		1	50.0%	50.0%	0.00%	8.00	8.71
		2	14.0%	14.0%	0.00%	18.26	20.11
		3	1.0%	1.0%	0.00%	72.43	72.85
2884	2884	0	35.0%	35.0%	0.00%	9.06	9.83
		1	50.0%	50.0%	0.00%	9.47	10.16
		2	14.0%	14.0%	0.00%	21.31	23.33
		3	1.0%	1.0%	0.00%	80.48	81.19
3244	3245	0	35.0%	35.0%	0.00%	11.13	11.81
		1	50.0%	50.0%	0.00%	11.54	12.06
		2	14.0%	14.0%	0.00%	25.62	27.17
		3	1.0%	1.0%	0.00%	90.42	90.49
3605	3606	0	35.0%	35.0%	0.00%	15.27	15.54
		1	50.0%	50.0%	0.00%	15.72	15.92
		2	14.0%	14.0%	0.00%	33.58	34.38
		3	1.0%	1.0%	0.00%	109.13	108.30

Tue Dec 8 3:35:09 1998

First published at SPEC.org on 10-Nov-1998
