SPECweb96 Result

IBM:Netfinity 8500R
Microsoft:IIS 5.0 and SWC 2.0
SPECweb96 = 22688


Performance

Throughput
(ops/sec)
Response
(msec)
23104.6
46205.1
69305.6
92396.1
115506.8
138607.7
161718.6
1848110.4
2079313.6
2268818.1

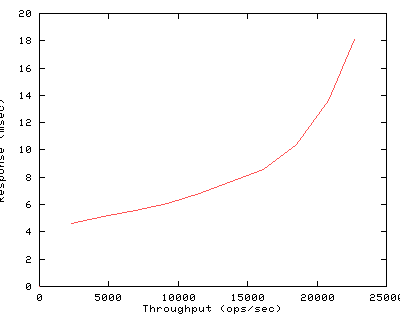

Performance Graph


Configuration

Availability Dates
Hardware Sep-99
HTTP Software Dec-99
Operating SystemOct-99

Hardware
Vendor IBM
Model Netfinity 8500R
Processor 550MHz Pentium III Xeon
# of Processors 8
Primary Cache 32KB
Secondary Cache 2MB
Other Cache None
Memory 4GB
Disk Subsystem 4 9.1GB 10K RPM drives
Disk ControllersWide Ultra SCSI
Other Hardware 4 Alteon ACEswitch 180

Software
Operating SystemWindows 2000 Advanced Server
File System TypeNTFS
Other Software None

HTTP Software
Vendor Microsoft
HTTP Software IIS 5.0 and SWC 2.0
# of "threads" 1
Server Cache SWC 2.0
Log Mode Binary CLF

Test Sponsor
Test Date Sep-99
Tested By IBM
SPEC License11

Network
# of Controllers 8
Network ControllersAlteon ACEnic PCI
# of Nets 8
Type of Nets Jumbo Frame Gigabit
Network Speed 1000 Mb
MSL (sec) 30 (Non RFC1122)
Time-Wait (sec) 60 (Non RFC1122)

Load Generators
# of Load Generators24
# of Processes Each 18
Model Intellistation Z Pro
Processor 450Mhz Pentium II Xeon
# of Processors 2
Memory 256MB
Network Controller Alteon ACEnic PCI
Operating System Windows 2000 Professional
Compiler Microsoft Visual C++ 5.0

Benchmark Configuration
Maximum Requested Load 23100
Maximum Fileset Size (MB)3319


Notes

Network Notes

Other Notes


Test Run Details

Detailed Statistics
Load Throughput Class Target Mix Actual Mix Error Percent Mean Response Std Dev Response
23102310035.0%35.0%0.00%3.868.98
150.0%50.0%0.00%4.017.88
214.0%14.0%0.00%7.2416.63
31.0%1.0%0.00%25.7328.28
46204620035.0%35.0%0.00%4.2911.62
150.0%50.0%0.00%4.4613.84
214.0%14.0%0.00%7.7114.67
31.0%1.0%0.00%27.0137.46
69306930035.0%35.0%0.00%4.7813.73
150.0%50.0%0.00%4.8912.00
214.0%14.0%0.00%8.2113.52
31.0%1.0%0.00%28.0632.74
92409239035.0%35.0%0.00%5.3112.38
150.0%50.0%0.00%5.4313.05
214.0%14.0%0.00%8.8317.68
31.0%1.0%0.00%29.4031.81
1155011550035.0%35.0%0.00%5.9914.46
150.0%50.0%0.00%6.0913.20
214.0%14.0%0.00%9.4815.34
31.0%1.0%0.00%31.3540.51
1386013860035.0%35.0%0.00%6.8915.28
150.0%50.0%0.00%6.9714.40
214.0%14.0%0.00%10.4516.23
31.0%1.0%0.00%33.3537.55
1617016171035.0%35.0%0.00%7.7213.01
150.0%50.0%0.00%7.8215.00
214.0%14.0%0.00%11.5719.51
31.0%1.0%0.00%35.8737.50
1848018481035.0%35.0%0.00%9.4115.29
150.0%50.0%0.00%9.4713.53
214.0%14.0%0.00%13.9219.09
31.0%1.0%0.00%40.0942.37
2079020793035.0%35.0%0.00%12.3817.93
150.0%50.0%0.00%12.4416.54
214.0%14.0%0.00%18.2321.86
31.0%1.0%0.00%45.8749.95
23100226880.0%0.0%0.00%
0.0%0.0%0.00%
0.0%0.0%0.00%
0.0%0.0%0.00%


Thu Sep 30 3:15:03 1999

First published at SPEC.org on 21-Sep-1999
