SPECpower_ssj2008
Copyright © 2008 Standard Performance Evaluation Corporation
| Super Micro Computer, Inc. Supermicro 6025B-TR+ (Intel Xeon processor 5160) | SPECpower_ssj2008 = 318 overall ssj_ops/watt | ||||
| Test Sponsor: | Intel Corp. | SPEC License #: | 13 | Hardware Availability: | Nov-2007 |
| Tested By: | Intel Corp. | Test Location: | Hillsboro, Oregon, USA | Software Availability: | Nov-2007 |
| System Source: | Single Supplier | Test Date: | Nov 27, 2007 | Publication: | Feb 13, 2008 |

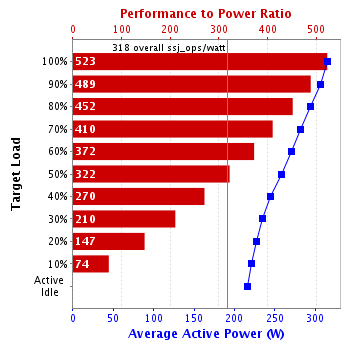

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Power (W) | |
| 100% | 99.4% | 164,569 | 315 | 523 |
| 90% | 90.5% | 149,804 | 307 | 489 |
| 80% | 80.2% | 132,866 | 294 | 452 |
| 70% | 69.9% | 115,705 | 282 | 410 |
| 60% | 60.8% | 100,657 | 270 | 372 |
| 50% | 50.1% | 82,986 | 258 | 322 |
| 40% | 39.9% | 66,154 | 245 | 270 |
| 30% | 29.8% | 49,369 | 235 | 210 |
| 20% | 20.2% | 33,456 | 227 | 147 |
| 10% | 9.8% | 16,300 | 221 | 73.6 |
| Active Idle | 0 | 216 | 0 | |
| ∑ssj_ops / ∑power = | 318 | |||
| Hardware | |
|---|---|
| Hardware Vendor: | Super Micro Computer, Inc. |
| Model: | Supermicro 6025B-TR+ (Intel Xeon processor 5160) |
| CPU Name: | Intel Xeon processor 5160 |
| CPU Characteristics: | Dual-Core 3.0GHz, 4 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 3000 |
| CPU(s) Enabled: | 4 cores, 2 chips, 2 cores/chip |
| Hardware Threads / Core: | 1 |
| CPU(s) Orderable: | 1,2 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4x 2GB |
| Memory Details: | Hynix HYMP525F72BP4D2-Y5 AB-T 2GB 2Rx4 PC2-5300F-555-11 FBDIMM; slots 1A, 2A, 3A, 4A populated |
| Power Supply Quantity and Rating (W): | 2 x 700W |
| Power Supply Details: | ABLECOM PWS-702A-1R Redundant Module Switching Power Supply |
| Disk Drive: | 1 x Western Digital WD360ADFD 36GB SATA |
| Disk Controller: | Intel 631xESB/6321ESB Serial ATA Storage Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Embedded Intel PRO/1000 EB Network Connection with I/O Acceleration |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 Enterprise x64 Edition |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) 1.6.0_02 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3500m -Xmx3500m -Xns2900m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | JVM 1 to 03, JVM 2 to 0C |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 3500 |
| JVM Maximum Heap (MB): | 3500 |
| JVM Address Bits: | 64 |
| Benchmark Version: | SPECpower_ssj2008 0.23 |
| Director Location: | SUT |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Computer Corporation |
| Model: | Dell LATITUDE D600 |
| CPU Description: | Intel Pentium M processor 1.6 GHz |
| Memory amount (GB): | 1.0 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows XP |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.4.0-90-89592-1.5.0_12-20070928-1715-windows-ia32, compiled mode) |
| CCS Version: | 0.21 |
| Power Analyzer | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G533352 |
| Connectivity: | RS-232 |
| Calibration Institute: | NIST |
| Accredited by: | Intel Oregon Calibration Lab |
| Calibration Label: | CCN 20-24428 |
| Date of Calibration: | 13-Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Temperature Sensor | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Digi Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Target Load | Electrical Data | Environmental Data | |||
|---|---|---|---|---|---|
| Average Voltage (V) | Average Current (A) | Average Power Factor | Average Power (W) | Minimum Ambient Temperature (°C) | |
| 100% | 119 | 2.72 | 0.972 | 315 | 23.9 |
| 90% | 119 | 2.65 | 0.971 | 307 | 23.9 |
| 80% | 119 | 2.55 | 0.968 | 294 | 23.9 |
| 70% | 119 | 2.45 | 0.965 | 282 | 23.9 |
| 60% | 119 | 2.36 | 0.963 | 270 | 23.9 |
| 50% | 119 | 2.25 | 0.961 | 258 | 23.9 |
| 40% | 119 | 2.14 | 0.959 | 245 | 23.9 |
| 30% | 120 | 2.05 | 0.958 | 235 | 23.9 |
| 20% | 120 | 1.99 | 0.957 | 227 | 23.9 |
| 10% | 120 | 1.94 | 0.955 | 221 | 23.9 |
| Active Idle | 120 | 1.89 | 0.954 | 216 | 23.9 |
| Line Standard | Average Power Factor | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|---|
| 120V / 60 Hz / 1 phase / 2 wires | 0.962 | 23.9 | 62 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 164,295 | ||
| Calibration 2 | 165,423 | ||
| Calibration 3 | 165,793 | ||
| ssj_ops@calibrated=165,608 | |||
| 100% | 99.4% | 165,608 | 164,569 |
| 90% | 90.5% | 149,047 | 149,804 |
| 80% | 80.2% | 132,487 | 132,866 |
| 70% | 69.9% | 115,926 | 115,705 |
| 60% | 60.8% | 99,365 | 100,657 |
| 50% | 50.1% | 82,804 | 82,986 |
| 40% | 39.9% | 66,243 | 66,154 |
| 30% | 29.8% | 49,682 | 49,369 |
| 20% | 20.2% | 33,122 | 33,456 |
| 10% | 9.8% | 16,561 | 16,300 |
| Active Idle | 0 | 0 | |
