Super Micro Computer, Inc. Supermicro 6025B-TR+ (Intel Xeon processor E5345) SPECpower_ssj2008 = 385 overall ssj_ops/watt
Test Sponsor: Intel Corp. SPEC License #: 13 Test Method: Single Node
Tested By: Intel Corp. Test Location: Hillsboro, Oregon, USA Test Date: Jan 11, 2008
Hardware Availability: Nov-2007 Software Availability: Nov-2007 Publication: Feb 13, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.3% 234,339 357 657
90% 90.6% 213,922 351 609
80% 80.5% 190,011 342 555
70% 70.0% 165,187 332 497
60% 59.4% 140,111 321 437
50% 50.0% 118,051 310 381
40% 40.1% 94,664 298 318
30% 30.5% 72,005 286 252
20% 20.2% 47,624 274 174
10% 10.0% 23,600 260 90.8
Active Idle 0 245 0
∑ssj_ops / ∑power = 385

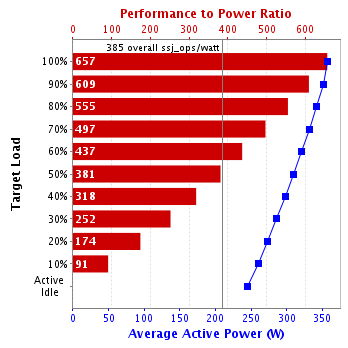

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Supermicro 6025B-TR+ (Intel Xeon processor E5345)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Super Micro Computer, Inc.
Model: Supermicro 6025B-TR+ (Intel Xeon processor E5345)
Form Factor: --
CPU Name: Intel Xeon processor E5345
CPU Characteristics: Quad-Core 2.33GHz, 8 MB L2, 1333 MHz system bus
CPU Frequency (MHz): 2333
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip / chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4x 2GB
Memory Details: Hynix HYMP525F72BP4D2-Y5 AB-T 2GB 2Rx4 PC2-5300F-555-11 FBDIMM; slots 1A, 2A, 3A, 4A populated
Power Supply Quantity and Rating (W): 2 x 700W
Power Supply Details: ABLECOM PWS-702A-1R Redundant Module Switching Power Supply
Disk Drive: 1 x Western Digital WD360ADFD 36GB SATA
Disk Controller: Intel 631xESB/6321ESB Serial ATA Storage Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Embedded Intel PRO/1000 EB Network Connection with I/O Acceleration
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Server Balanced Processor Power and Performance
Operating System (OS): Microsoft Windows Server 2003 Enterprise x64 Edition
OS Version: SP1
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) 1.6.0_02 (build P27.4.0-10-90053-1.6.0_02-20071009-1827-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3500m -Xmx3500m -XXaggressive -Xgc:genpar -Xns2900m -XXlazyunlocking -XXcallprofiling -XXtlasize:min=4k,preferred=512k -XXthroughputcompaction -XXgcthreads:4
JVM Affinity: JVM 1 to 0F, JVM 2 to F0
JVM Instances: 4
JVM Initial Heap (MB): 3500
JVM Maximum Heap (MB): 3500
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: SUT
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Computer Corporation
Model: Dell LATITUDE D600
CPU Description: Intel Pentium M processor 1.6 GHz
Memory amount (GB): 1.0
Software
Operating System (OS): Microsoft Windows XP
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.4.0-90-89592-1.5.0_12-20070928-1715-windows-ia32, compiled mode)
CCS Version: 1.1
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91G533352
Connectivity: RS-232
Input Connection: --
Calibration Institute: NIST
Accredited by: Intel Oregon Calibration Lab
Calibration Label: CCN 20-24428
Date of Calibration: 13-Nov-2007
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.0-d02d2dbe
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Digi Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 357 24.1
90% 351 24.1
80% 342 24.1
70% 332 24.1
60% 321 24.1
50% 310 24.1
40% 298 24.1
30% 286 24.1
20% 274 24.1
10% 260 24.1
Active Idle 245 24.1
Line Standard Minimum Temperature (°C) Elevation (m)
120V / 60 Hz / 1 phase / 2 wires 24.1 62
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     235,570
Calibration 2     237,039
Calibration 3     235,034
ssj_ops@calibrated=236,037
100% 99.3% 236,037 234,339
90% 90.6% 212,433 213,922
80% 80.5% 188,829 190,011
70% 70.0% 165,226 165,187
60% 59.4% 141,622 140,111
50% 50.0% 118,018 118,051
40% 40.1% 94,415 94,664
30% 30.5% 70,811 72,005
20% 20.2% 47,207 47,624
10% 10.0% 23,604 23,600
Active Idle   0 0

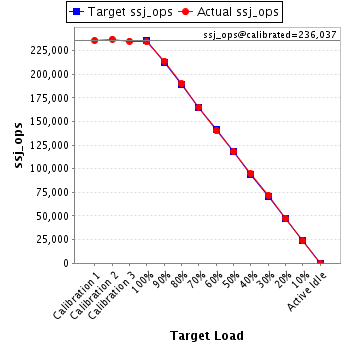

Graph of results
