SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge 1950 III (Intel Xeon E5440) | SPECpower_ssj2008 = 712 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 7, 2008 |
| Hardware Availability: | Mar-2008 | Software Availability: | Oct-2007 | Publication: | Feb 27, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

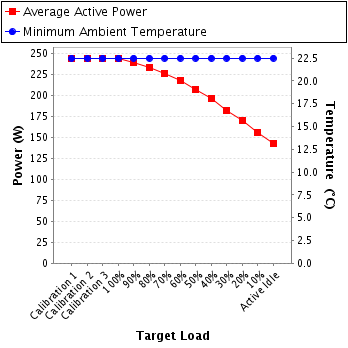

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 244 | 22.5 |
| Calibration 2 | 244 | 22.5 |
| Calibration 3 | 244 | 22.5 |
| 100% | 244 | 22.5 |
| 90% | 239 | 22.5 |
| 80% | 233 | 22.5 |
| 70% | 226 | 22.5 |
| 60% | 218 | 22.5 |
| 50% | 208 | 22.5 |
| 40% | 196 | 22.5 |
| 30% | 183 | 22.5 |
| 20% | 170 | 22.5 |
| 10% | 156 | 22.5 |
| Active Idle | 143 | 22.5 |

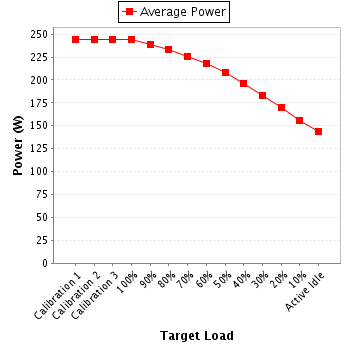

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G643889 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1458 |
| Date of Calibration: | 24-Oct-2007 |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Controller |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Controller |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | -- | 1.22 | -- | 0.965 | 244 | -- |
| Calibration 2 | 208 | -- | 1.22 | -- | 0.965 | 244 | -- |
| Calibration 3 | 208 | -- | 1.22 | -- | 0.965 | 244 | -- |
| 100% | 208 | -- | 1.22 | -- | 0.965 | 244 | -- |
| 90% | 208 | -- | 1.19 | -- | 0.964 | 239 | -- |
| 80% | 208 | -- | 1.16 | -- | 0.962 | 233 | -- |
| 70% | 208 | -- | 1.13 | -- | 0.959 | 226 | -- |
| 60% | 208 | -- | 1.09 | -- | 0.956 | 218 | -- |
| 50% | 208 | -- | 1.05 | -- | 0.952 | 208 | -- |
| 40% | 208 | -- | 0.994 | -- | 0.947 | 196 | -- |
| 30% | 208 | -- | 0.932 | -- | 0.942 | 183 | -- |
| 20% | 208 | -- | 0.874 | -- | 0.936 | 170 | -- |
| 10% | 208 | -- | 0.803 | -- | 0.931 | 156 | -- |
| Active Idle | 208 | -- | 0.743 | -- | 0.926 | 143 | -- |
