SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| SGI Altix XE320 Single Node (2.5 GHz, Intel Xeon processor E5420) | ssj_ops@100% = 287,032 ssj_ops@100% per JVM = 71,758 |
||||
| Test Sponsor: | SGI | SPEC License #: | 4 | Test Method: | Single Node |
| Tested By: | SGI | Test Location: | Mountain View,CA, USA | Test Date: | May 5, 2008 |
| Hardware Availability: | Jun-2008 | Software Availability: | Apr-2008 | Publication: | Jun 4, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 288,811 | ||
| Calibration 2 | 290,254 | ||
| Calibration 3 | 289,625 | ||
| ssj_ops@calibrated=289,940 | |||
| 100% | 99.0% | 289,940 | 287,032 |
| 90% | 90.2% | 260,946 | 261,659 |
| 80% | 80.0% | 231,952 | 231,992 |
| 70% | 69.8% | 202,958 | 202,393 |
| 60% | 60.2% | 173,964 | 174,556 |
| 50% | 50.4% | 144,970 | 146,029 |
| 40% | 39.9% | 115,976 | 115,637 |
| 30% | 30.2% | 86,982 | 87,535 |
| 20% | 20.1% | 57,988 | 58,312 |
| 10% | 10.0% | 28,994 | 28,937 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Altix XE320 Single Node (2.5 GHz, Intel Xeon processor E5420) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | SGI |
| Model: | Altix XE320 Single Node (2.5 GHz, Intel Xeon processor E5420) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon E5420 |
| CPU Characteristics: | 2.5 GHz, 12 MB L2 Cache, Quad-Core, 1333 MHz System Bus |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4x4096 MB |
| Memory Details: | SGI part # 9010127, 4GB DDR2 667 CL5 ECC Slots 1,3,5,7 |
| Power Supply Quantity and Rating (W): | 1 x 980 |
| Power Supply Details: | SGI part # 060-0262-001 |
| Disk Drive: | 1 x 250GB 7200 RPM SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | Integrated 2 x Intel Gigabit Ethernet (80003ES2LAN, e1000 driver) |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled(See SUT Notes) |
| Operating System (OS): | SUSE Linux Enterprise Server 10 (x86_64) |
| OS Version: | 10 SP1 |
| Filesystem: | xfs |
| JVM Vendor: | BEA Systems, Inc |
| JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1523-linux-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3400m -Xns3200m -Xmx3400m -XXaggressive -XXlazyunlocking -XXthroughputcompaction -Xlargepages -Xgc:genpar -XXcallprofiling -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | numactl --physcpubind[0,2][4,6][1,3][5,7] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 3400 |
| JVM Maximum Heap (MB): | 3400 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |

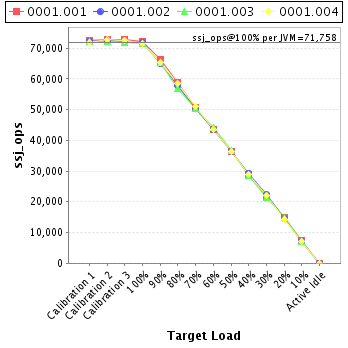

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 72,096 |
| 0001.002 | 71,860 |
| 0001.003 | 71,607 |
| 0001.004 | 71,468 |
| ssj_ops@100% | 287,032 |
| ssj_ops@100% per JVM | 71,758 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 72,608 | ||
| Calibration 2 | 72,847 | ||
| Calibration 3 | 72,902 | ||
| ssj_ops@calibrated=72,874 | |||
| 100% | 98.9% | 72,874 | 72,096 |
| 90% | 90.9% | 65,587 | 66,225 |
| 80% | 80.7% | 58,299 | 58,776 |
| 70% | 69.5% | 51,012 | 50,624 |
| 60% | 59.5% | 43,725 | 43,393 |
| 50% | 50.0% | 36,437 | 36,440 |
| 40% | 39.6% | 29,150 | 28,865 |
| 30% | 29.6% | 21,862 | 21,563 |
| 20% | 20.3% | 14,575 | 14,763 |
| 10% | 10.3% | 7,287 | 7,504 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 72,299 | ||
| Calibration 2 | 72,498 | ||
| Calibration 3 | 72,175 | ||
| ssj_ops@calibrated=72,336 | |||
| 100% | 99.3% | 72,336 | 71,860 |
| 90% | 89.8% | 65,103 | 64,964 |
| 80% | 80.0% | 57,869 | 57,834 |
| 70% | 69.8% | 50,635 | 50,458 |
| 60% | 60.1% | 43,402 | 43,463 |
| 50% | 50.5% | 36,168 | 36,499 |
| 40% | 40.6% | 28,935 | 29,361 |
| 30% | 30.8% | 21,701 | 22,258 |
| 20% | 20.0% | 14,467 | 14,475 |
| 10% | 10.0% | 7,234 | 7,204 |
| Active Idle | 0 | 0 | |

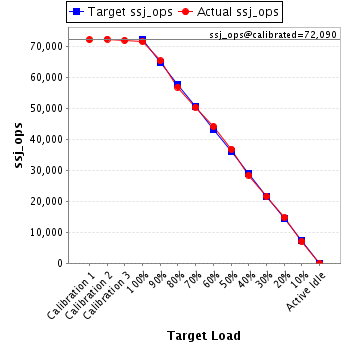

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 72,060 | ||
| Calibration 2 | 72,261 | ||
| Calibration 3 | 71,919 | ||
| ssj_ops@calibrated=72,090 | |||
| 100% | 99.3% | 72,090 | 71,607 |
| 90% | 90.6% | 64,881 | 65,281 |
| 80% | 78.8% | 57,672 | 56,823 |
| 70% | 69.8% | 50,463 | 50,347 |
| 60% | 61.2% | 43,254 | 44,085 |
| 50% | 51.0% | 36,045 | 36,779 |
| 40% | 39.4% | 28,836 | 28,423 |
| 30% | 29.9% | 21,627 | 21,539 |
| 20% | 20.5% | 14,418 | 14,771 |
| 10% | 9.8% | 7,209 | 7,033 |
| Active Idle | 0 | 0 | |

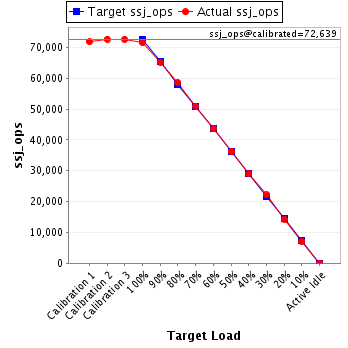

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 71,845 | ||
| Calibration 2 | 72,649 | ||
| Calibration 3 | 72,630 | ||
| ssj_ops@calibrated=72,639 | |||
| 100% | 98.4% | 72,639 | 71,468 |
| 90% | 89.7% | 65,375 | 65,189 |
| 80% | 80.6% | 58,111 | 58,560 |
| 70% | 70.2% | 50,848 | 50,964 |
| 60% | 60.0% | 43,584 | 43,615 |
| 50% | 50.0% | 36,320 | 36,311 |
| 40% | 39.9% | 29,056 | 28,988 |
| 30% | 30.5% | 21,792 | 22,175 |
| 20% | 19.7% | 14,528 | 14,304 |
| 10% | 9.9% | 7,264 | 7,196 |
| Active Idle | 0 | 0 | |
