NEC Corporation ECO CENTER ssj_ops@100% = 288,502
ssj_ops@100% per JVM = 72,126
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Jul 14, 2008
Hardware Availability: Oct-2008 Software Availability: Apr-2008 Publication: Jul 31, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     289,968
Calibration 2     290,412
Calibration 3     290,394
ssj_ops@calibrated=290,403
100% 99.3% 290,403 288,502
90% 90.5% 261,363 262,944
80% 80.1% 232,322 232,748
70% 69.8% 203,282 202,628
60% 60.3% 174,242 175,063
50% 50.2% 145,202 145,808
40% 40.1% 116,161 116,311
30% 29.8% 87,121 86,541
20% 19.9% 58,081 57,866
10% 10.2% 29,040 29,558
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ECO CENTER
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: ECO CENTER
Form Factor: --
CPU Name: Intel Xeon L5420
CPU Characteristics: Quad-Core, 2.5 GHz, 2 x 6 MB L2 Cache, 1333 MHz system bus
CPU Frequency (MHz): 2500
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared/2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: DDR2-667 CL5 5300P; slots 1 and 2 populated
Power Supply Quantity and Rating (W): 1 x 780
Power Supply Details: NEC ECO-POWER781-AC
Disk Drive: 1 x 160GB 5.4K RPM 2.5inch SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Server Balanced Processor Power and Performance
Operating System (OS): Microsoft Windows Server 2003 R2 Enterprise x64 Edition Service Pack 2
OS Version: SP2
Filesystem: NTFS
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1760m -Xmx1760m -Xns1350m -XXaggressive -XXlargePages -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=1024k
JVM Affinity: start /affinity [03, 0C, 30, C0]
JVM Instances: 8
JVM Initial Heap (MB): 1760
JVM Maximum Heap (MB): 1760
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 71,740
0001.002 72,616
0001.003 72,335
0001.004 71,812
ssj_ops@100% 288,502
ssj_ops@100% per JVM 72,126

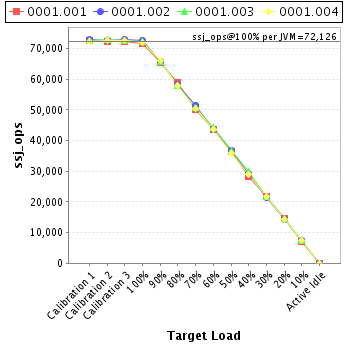

Graph of per-instance results
JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,510
Calibration 2     72,252
Calibration 3     72,345
ssj_ops@calibrated=72,299
100% 99.2% 72,299 71,740
90% 90.6% 65,069 65,528
80% 81.4% 57,839 58,840
70% 69.2% 50,609 50,027
60% 60.4% 43,379 43,688
50% 50.3% 36,149 36,338
40% 39.3% 28,919 28,437
30% 30.3% 21,690 21,876
20% 20.1% 14,460 14,566
10% 9.9% 7,230 7,137
Active Idle   0 0
Graph of results
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,806
Calibration 2     72,521
Calibration 3     72,983
ssj_ops@calibrated=72,752
100% 99.8% 72,752 72,616
90% 90.3% 65,477 65,676
80% 79.9% 58,202 58,105
70% 70.9% 50,927 51,561
60% 59.8% 43,651 43,539
50% 50.7% 36,376 36,885
40% 40.1% 29,101 29,166
30% 29.4% 21,826 21,375
20% 19.8% 14,550 14,425
10% 10.2% 7,275 7,421
Active Idle   0 0
Graph of results
JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,525
Calibration 2     73,043
Calibration 3     72,497
ssj_ops@calibrated=72,770
100% 99.4% 72,770 72,335
90% 90.2% 65,493 65,645
80% 79.7% 58,216 58,001
70% 69.7% 50,939 50,720
60% 60.7% 43,662 44,170
50% 50.4% 36,385 36,666
40% 40.9% 29,108 29,794
30% 29.7% 21,831 21,624
20% 19.9% 14,554 14,500
10% 10.3% 7,277 7,525
Active Idle   0 0
Graph of results
JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     72,127
Calibration 2     72,595
Calibration 3     72,570
ssj_ops@calibrated=72,582
100% 98.9% 72,582 71,812
90% 91.1% 65,324 66,095
80% 79.6% 58,066 57,802
70% 69.3% 50,808 50,320
60% 60.2% 43,549 43,666
50% 49.5% 36,291 35,920
40% 39.8% 29,033 28,915
30% 29.9% 21,775 21,666
20% 19.8% 14,516 14,376
10% 10.3% 7,258 7,475
Active Idle   0 0
Graph of results
