Fujitsu Siemens Computers PRIMERGY RX100 S5 (Intel Xeon X3360) SPECpower_ssj2008 = 1,015 overall ssj_ops/watt
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, NRW, Germany Test Date: Sep 10, 2008
Hardware Availability: Sep-2008 Software Availability: Jul-2008 Publication: Sep 24, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 114 20.6
Calibration 2 115 20.6
Calibration 3 115 20.6
100% 115 20.6
90% 112 20.6
80% 109 20.6
70% 105 20.6
60% 99.9 20.6
50% 93.5 20.6
40% 87.3 20.6
30% 80.0 20.6
20% 74.3 20.6
10% 68.6 20.6
Active Idle 63.0 20.6

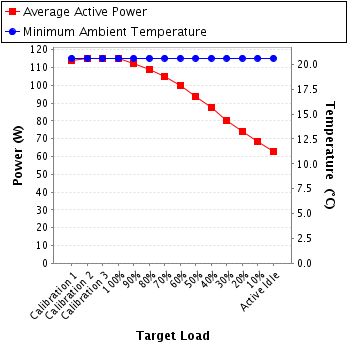

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11770806
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: ZES
Calibration Label: 11770806.1f
Date of Calibration: 25-Jun-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250V 0.548 0.60A 0.906 114 --
Calibration 2 230 250V 0.552 0.60A 0.907 115 --
Calibration 3 230 250V 0.553 0.60A 0.907 115 --
100% 230 250V 0.553 0.60A 0.907 115 --
90% 230 250V 0.542 0.60A 0.903 112 --
80% 230 250V 0.529 0.60A 0.898 109 --
70% 230 250V 0.515 0.60A 0.889 105 --
60% 230 250V 0.495 0.60A 0.878 99.9 --
50% 229 250V 0.471 0.60A 0.865 93.5 --
40% 229 250V 0.447 0.60A 0.851 87.3 --
30% 229 250V 0.418 0.60A 0.834 80.0 --
20% 229 250V 0.396 0.60A 0.818 74.3 --
10% 229 250V 0.371 0.60A 0.807 68.6 --
Active Idle 230 250V 0.335 0.60A 0.818 63.0 --
Power details for pwr1
