Acer Incorporated Altos R520 SPECpower_ssj2008 = 731 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, Taiwan, R.O.C. Test Date: Sep 12, 2008
Hardware Availability: Nov-2007 Software Availability: May-2008 Publication: Oct 9, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 270 25.1
Calibration 2 271 25.1
Calibration 3 271 25.1
100% 269 25.1
90% 257 25.1
80% 246 25.1
70% 234 25.1
60% 222 25.1
50% 211 25.1
40% 198 25.1
30% 188 25.1
20% 176 25.1
10% 165 25.1
Active Idle 155 25.1

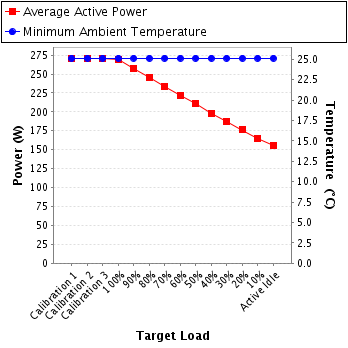

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 08-06-BCC-159-01
Date of Calibration: 16-Jun-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300V 1.33 2A 0.945 270 --
Calibration 2 215 300V 1.33 2A 0.944 271 --
Calibration 3 216 300V 1.33 2A 0.944 271 --
100% 216 300V 1.32 2A 0.944 269 --
90% 216 300V 1.27 2A 0.942 257 --
80% 216 300V 1.21 2A 0.939 246 --
70% 216 300V 1.16 2A 0.937 234 --
60% 215 300V 1.10 2A 0.935 222 --
50% 215 300V 1.05 2A 0.933 211 --
40% 215 300V 0.992 2A 0.929 198 --
30% 215 300V 0.942 2A 0.927 188 --
20% 215 300V 0.887 2A 0.924 176 --
10% 215 300V 0.836 2A 0.920 165 --
Active Idle 214 300V 0.790 2A 0.917 155 --
Power details for pwr1
