SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Acer Incorporated Altos R520 | ssj_ops@100% = 307,704 ssj_ops@100% per JVM = 76,926 |
||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, R.O.C. | Test Date: | Sep 12, 2008 |
| Hardware Availability: | Nov-2007 | Software Availability: | May-2008 | Publication: | Oct 9, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 306,833 | ||
| Calibration 2 | 308,440 | ||
| Calibration 3 | 309,279 | ||
| ssj_ops@calibrated=308,859 | |||
| 100% | 99.6% | 308,859 | 307,704 |
| 90% | 89.9% | 277,973 | 277,588 |
| 80% | 79.7% | 247,088 | 246,177 |
| 70% | 69.5% | 216,202 | 214,566 |
| 60% | 59.7% | 185,316 | 184,249 |
| 50% | 50.4% | 154,430 | 155,612 |
| 40% | 40.1% | 123,544 | 123,921 |
| 30% | 30.3% | 92,658 | 93,635 |
| 20% | 20.0% | 61,772 | 61,850 |
| 10% | 10.2% | 30,886 | 31,371 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Altos R520 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Altos R520 |
| Form Factor: | -- |
| CPU Name: | Intel Xeon E5450 |
| CPU Characteristics: | 3.00 GHz, 2x6 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 3000 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4 GB |
| Memory Details: | DDR2-667 CL5 FBDIMM; slots 1, 3, 5 and 7 populated |
| Power Supply Quantity and Rating (W): | 1 x 650 |
| Power Supply Details: | COLDWATT CWA2-0650-10-IT01 Redundant Power Supply |
| Disk Drive: | 1 x Hitachi HTS541616J9SA00 160GB 5400 RPM SATA |
| Disk Controller: | onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x onboard Intel PRO/1000 gigabit network interface controller with Intel I/O Acceleration Technology |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Power and Performance) |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | BEA JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=512k |
| JVM Affinity: | start /affinity [03, 0C, 30, C0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 3600 |
| JVM Maximum Heap (MB): | 3600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |

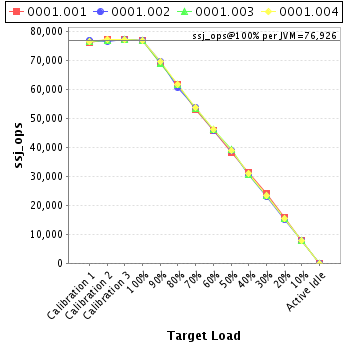

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 76,846 |
| 0001.002 | 77,102 |
| 0001.003 | 76,859 |
| 0001.004 | 76,897 |
| ssj_ops@100% | 307,704 |
| ssj_ops@100% per JVM | 76,926 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 76,446 | ||
| Calibration 2 | 77,220 | ||
| Calibration 3 | 77,386 | ||
| ssj_ops@calibrated=77,303 | |||
| 100% | 99.4% | 77,303 | 76,846 |
| 90% | 89.5% | 69,573 | 69,158 |
| 80% | 79.8% | 61,842 | 61,712 |
| 70% | 68.7% | 54,112 | 53,119 |
| 60% | 59.4% | 46,382 | 45,926 |
| 50% | 49.6% | 38,652 | 38,359 |
| 40% | 40.7% | 30,921 | 31,498 |
| 30% | 31.1% | 23,191 | 24,035 |
| 20% | 20.3% | 15,461 | 15,730 |
| 10% | 10.2% | 7,730 | 7,850 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 77,101 | ||
| Calibration 2 | 76,749 | ||
| Calibration 3 | 77,286 | ||
| ssj_ops@calibrated=77,018 | |||
| 100% | 100.1% | 77,018 | 77,102 |
| 90% | 90.5% | 69,316 | 69,686 |
| 80% | 78.9% | 61,614 | 60,774 |
| 70% | 70.1% | 53,912 | 53,994 |
| 60% | 59.4% | 46,211 | 45,781 |
| 50% | 50.5% | 38,509 | 38,878 |
| 40% | 39.9% | 30,807 | 30,704 |
| 30% | 29.9% | 23,105 | 23,045 |
| 20% | 19.6% | 15,404 | 15,062 |
| 10% | 10.0% | 7,702 | 7,704 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 76,806 | ||
| Calibration 2 | 77,022 | ||
| Calibration 3 | 77,318 | ||
| ssj_ops@calibrated=77,170 | |||
| 100% | 99.6% | 77,170 | 76,859 |
| 90% | 89.6% | 69,453 | 69,116 |
| 80% | 80.1% | 61,736 | 61,784 |
| 70% | 69.4% | 54,019 | 53,583 |
| 60% | 59.8% | 46,302 | 46,146 |
| 50% | 50.9% | 38,585 | 39,256 |
| 40% | 39.6% | 30,868 | 30,548 |
| 30% | 30.1% | 23,151 | 23,253 |
| 20% | 20.3% | 15,434 | 15,639 |
| 10% | 10.4% | 7,717 | 8,016 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 76,480 | ||
| Calibration 2 | 77,449 | ||
| Calibration 3 | 77,288 | ||
| ssj_ops@calibrated=77,368 | |||
| 100% | 99.4% | 77,368 | 76,897 |
| 90% | 90.0% | 69,632 | 69,629 |
| 80% | 80.0% | 61,895 | 61,907 |
| 70% | 69.6% | 54,158 | 53,870 |
| 60% | 60.0% | 46,421 | 46,396 |
| 50% | 50.6% | 38,684 | 39,119 |
| 40% | 40.3% | 30,947 | 31,172 |
| 30% | 30.1% | 23,211 | 23,301 |
| 20% | 19.9% | 15,474 | 15,419 |
| 10% | 10.1% | 7,737 | 7,801 |
| Active Idle | 0 | 0 | |
