SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Powerleader PR2510D2 | SPECpower_ssj2008 = 1,135 overall ssj_ops/watt | ||||
| Test Sponsor: | Powerleader Company | SPEC License #: | 3494 | Test Method: | Single Node |
| Tested By: | Powerleader Company | Test Location: | Shenzhen,Guangdong,China | Test Date: | Sep 22, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Jul-2008 | Publication: | Oct 14, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

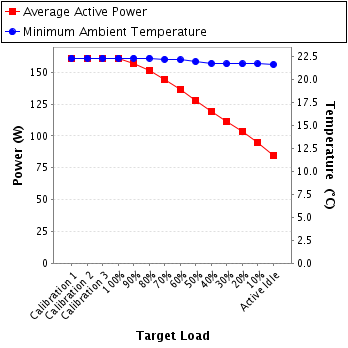

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 161 | 22.3 |
| Calibration 2 | 161 | 22.3 |
| Calibration 3 | 161 | 22.3 |
| 100% | 161 | 22.3 |
| 90% | 157 | 22.3 |
| 80% | 151 | 22.3 |
| 70% | 144 | 22.2 |
| 60% | 136 | 22.1 |
| 50% | 128 | 21.9 |
| 40% | 120 | 21.8 |
| 30% | 112 | 21.7 |
| 20% | 104 | 21.7 |
| 10% | 94.6 | 21.7 |
| Active Idle | 84.6 | 21.6 |

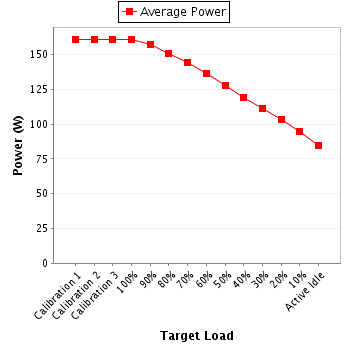

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H330404 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | CNAS |
| Accredited by: | Shenzhen Calibration Station of Aqsiq |
| Calibration Label: | 082012072 |
| Date of Calibration: | 04-Aug-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 212 | 300 | 0.811 | 2 | 0.936 | 161 | -- |
| Calibration 2 | 212 | 300 | 0.810 | 2 | 0.936 | 161 | -- |
| Calibration 3 | 212 | 300 | 0.812 | 2 | 0.936 | 161 | -- |
| 100% | 213 | 300 | 0.806 | 2 | 0.935 | 161 | -- |
| 90% | 213 | 300 | 0.790 | 2 | 0.932 | 157 | -- |
| 80% | 213 | 300 | 0.766 | 2 | 0.928 | 151 | -- |
| 70% | 212 | 300 | 0.739 | 2 | 0.923 | 144 | -- |
| 60% | 212 | 300 | 0.702 | 2 | 0.915 | 136 | -- |
| 50% | 212 | 300 | 0.666 | 2 | 0.906 | 128 | -- |
| 40% | 212 | 300 | 0.627 | 2 | 0.897 | 120 | -- |
| 30% | 213 | 300 | 0.592 | 2 | 0.887 | 112 | -- |
| 20% | 213 | 300 | 0.556 | 2 | 0.874 | 104 | -- |
| 10% | 213 | 300 | 0.516 | 2 | 0.860 | 94.6 | -- |
| Active Idle | 213 | 300 | 0.470 | 2 | 0.843 | 84.6 | -- |
