Fujitsu Siemens Computers PRIMERGY RX200 S4 (Intel Xeon L5430) | ssj_ops@100% = 325,499 ssj_ops@100% per JVM = 81,375 |
||||
Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, NRW, Germany | Test Date: | 16.02.2009 |
Hardware Availability: | Sep-2008 | Software Availability: | May-2009 | Publication: | Mar 11, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 330,799 | ||
Calibration 2 | 327,352 | ||
Calibration 3 | 326,879 | ||
ssj_ops@calibrated=327,115 | |||
100% | 99.5% | 327,115 | 325,499 |
90% | 89.8% | 294,404 | 293,730 |
80% | 80.5% | 261,692 | 263,471 |
70% | 70.1% | 228,981 | 229,234 |
60% | 60.3% | 196,269 | 197,278 |
50% | 50.0% | 163,558 | 163,573 |
40% | 39.7% | 130,846 | 129,826 |
30% | 30.4% | 98,135 | 99,336 |
20% | 20.2% | 65,423 | 66,142 |
10% | 10.0% | 32,712 | 32,703 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | PRIMERGY RX200 S4 (Intel Xeon L5430) |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Fujitsu Siemens Computers |
Model: | PRIMERGY RX200 S4 (Intel Xeon L5430) |
Form Factor: | -- |
CPU Name: | Intel Xeon L5430 |
CPU Characteristics: | 2.66GHz, 2x6MB L2 cache, 1333MHz system bus |
CPU Frequency (MHz): | 2667 |
CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
Hardware Threads: | 8 (1 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
Tertiary Cache: | None |
Other Cache: | None |
Memory Amount (GB): | 8 |
# and size of DIMM: | 4 x 2048 MB |
Memory Details: | 2GB 2Rx8 PC2-5300F ECC CL5; slots 1A, 1B, 1C, 1D populated |
Power Supply Quantity and Rating (W): | 1 x 650 |
Power Supply Details: | Delta Electronics, Inc DPS-650JB C |
Disk Drive: | 1 x Seagate (3.5", SATA, 250GB, 7.2krpm) |
Disk Controller: | Integrated SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x Broadcom BCM5708C NetXtreme II GigE (onboard) |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled ("Balanced" power scheme) |
Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition + SP2 |
OS Version: | Version 6.0.6002 Service Pack 2, v.641 Build 6002 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-8-109238-1.6.0_05-20090130-1408-windows-x86_64) |
JVM Command-line Options: | -Xms1700m -Xmx1700m -Xns1500m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXthroughputcompaction -XX:+UseStringCache |
JVM Affinity: | start /affinity [0x03,0x30,0x0C,0xC0] |
JVM Instances: | 8 |
JVM Initial Heap (MB): | 1700 |
JVM Maximum Heap (MB): | 1700 |
JVM Address Bits: | 64 |
Boot Firmware Version: | -- |
Management Firmware Version: | -- |
Workload Version: | SSJ 1.1.3 |
Director Location: | Controller |
Other Software: | None |

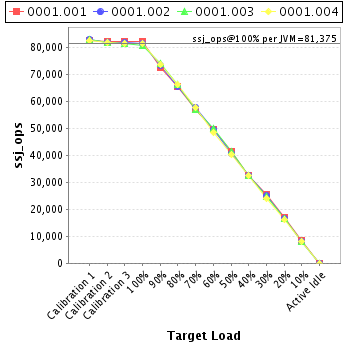

JVM Instance | ssj_ops@100% |
---|---|
0001.001 | 82,019 |
0001.002 | 81,549 |
0001.003 | 80,606 |
0001.004 | 81,325 |
ssj_ops@100% | 325,499 |
ssj_ops@100% per JVM | 81,375 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,537 | ||
Calibration 2 | 82,052 | ||
Calibration 3 | 82,067 | ||
ssj_ops@calibrated=82,060 | |||
100% | 100.0% | 82,060 | 82,019 |
90% | 88.5% | 73,854 | 72,644 |
80% | 79.8% | 65,648 | 65,502 |
70% | 69.4% | 57,442 | 56,926 |
60% | 60.2% | 49,236 | 49,370 |
50% | 50.6% | 41,030 | 41,509 |
40% | 39.6% | 32,824 | 32,464 |
30% | 30.9% | 24,618 | 25,385 |
20% | 20.8% | 16,412 | 17,037 |
10% | 10.3% | 8,206 | 8,446 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 83,006 | ||
Calibration 2 | 81,871 | ||
Calibration 3 | 81,742 | ||
ssj_ops@calibrated=81,806 | |||
100% | 99.7% | 81,806 | 81,549 |
90% | 89.7% | 73,626 | 73,369 |
80% | 80.2% | 65,445 | 65,623 |
70% | 70.7% | 57,265 | 57,863 |
60% | 60.5% | 49,084 | 49,507 |
50% | 49.7% | 40,903 | 40,640 |
40% | 39.7% | 32,723 | 32,496 |
30% | 30.5% | 24,542 | 24,962 |
20% | 20.2% | 16,361 | 16,541 |
10% | 10.0% | 8,181 | 8,171 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,772 | ||
Calibration 2 | 81,636 | ||
Calibration 3 | 81,547 | ||
ssj_ops@calibrated=81,592 | |||
100% | 98.8% | 81,592 | 80,606 |
90% | 90.8% | 73,432 | 74,120 |
80% | 81.2% | 65,273 | 66,245 |
70% | 69.7% | 57,114 | 56,865 |
60% | 61.2% | 48,955 | 49,919 |
50% | 50.5% | 40,796 | 41,232 |
40% | 39.7% | 32,637 | 32,386 |
30% | 30.4% | 24,477 | 24,818 |
20% | 20.2% | 16,318 | 16,491 |
10% | 9.7% | 8,159 | 7,912 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,485 | ||
Calibration 2 | 81,793 | ||
Calibration 3 | 81,522 | ||
ssj_ops@calibrated=81,658 | |||
100% | 99.6% | 81,658 | 81,325 |
90% | 90.1% | 73,492 | 73,597 |
80% | 80.9% | 65,326 | 66,100 |
70% | 70.5% | 57,160 | 57,580 |
60% | 59.4% | 48,995 | 48,482 |
50% | 49.2% | 40,829 | 40,191 |
40% | 39.8% | 32,663 | 32,480 |
30% | 29.6% | 24,497 | 24,170 |
20% | 19.7% | 16,332 | 16,073 |
10% | 10.0% | 8,166 | 8,175 |
Active Idle | 0 | 0 |
