Sun Microsystems, Inc. Sun Netra X4250 SPECpower_ssj2008 = 437 overall ssj_ops/watt
Test Sponsor: Sun Microsystems, Inc. SPEC License #: 6 Test Method: Single Node
Tested By: Sun Microsystems, Inc. Test Location: Burlington, MA, USA Test Date: Apr 20, 2009
Hardware Availability: Jul-2008 Software Availability: May-2009 Publication: May 6, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 297 23.9
Calibration 2 296 23.9
Calibration 3 296 23.9
100% 296 23.7
90% 291 23.7
80% 286 23.6
70% 280 23.7
60% 273 23.6
50% 267 23.9
40% 259 23.9
30% 251 23.9
20% 243 24.0
10% 235 23.9
Active Idle 225 23.9

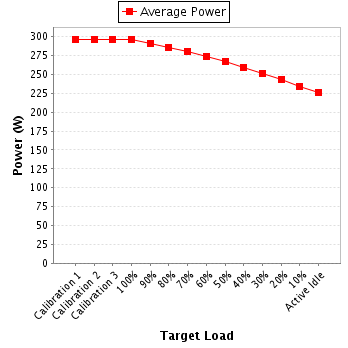

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GC38245
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Corporation of America
Calibration Label: 09-0488
Date of Calibration: 25-Feb-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-b98694b5
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: N/A
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm upwind of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 202 300.0 1.55 2.0 0.942 297 0.4%
Calibration 2 202 300.0 1.55 2.0 0.942 296 0.4%
Calibration 3 203 300.0 1.55 2.0 0.942 296 0.4%
100% 203 300.0 1.55 2.0 0.942 296 0.4%
90% 203 300.0 1.53 2.0 0.941 291 0.4%
80% 203 300.0 1.50 2.0 0.939 286 0.4%
70% 203 300.0 1.47 2.0 0.937 280 0.4%
60% 203 300.0 1.44 2.0 0.935 273 0.4%
50% 204 300.0 1.40 2.0 0.933 267 0.4%
40% 204 300.0 1.37 2.0 0.930 259 0.4%
30% 204 300.0 1.33 2.0 0.928 251 0.4%
20% 204 300.0 1.29 2.0 0.925 243 0.4%
10% 204 300.0 1.24 2.0 0.922 235 0.4%
Active Idle 205 300.0 1.20 2.0 0.919 225 0.5%
Power details for pwr1
