SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R610 (Intel Xeon X5570, 2.93 GHz) | SPECpower_ssj2008 = 1,844 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | May 3, 2009 |
| Hardware Availability: | Jun-2009 | Software Availability: | May-2009 | Publication: | May 20, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

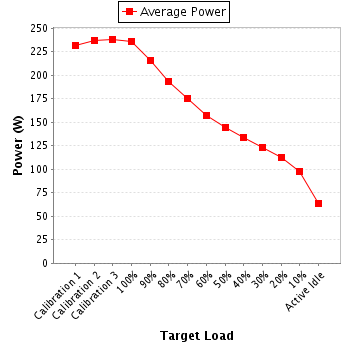

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 232 | 23.1 |
| Calibration 2 | 237 | 23.1 |
| Calibration 3 | 238 | 23.1 |
| 100% | 236 | 23.1 |
| 90% | 216 | 23.2 |
| 80% | 193 | 23.2 |
| 70% | 175 | 23.1 |
| 60% | 157 | 23.2 |
| 50% | 145 | 23.2 |
| 40% | 134 | 23.2 |
| 30% | 124 | 23.2 |
| 20% | 113 | 23.2 |
| 10% | 97.9 | 23.2 |
| Active Idle | 63.2 | 23.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 2565983 |
| Date of Calibration: | 20-Aug-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 1.18 | 2.0 | 0.950 | 232 | 0.4% |
| Calibration 2 | 206 | 300.0 | 1.21 | 2.0 | 0.952 | 237 | 0.4% |
| Calibration 3 | 207 | 300.0 | 1.21 | 2.0 | 0.952 | 238 | 0.4% |
| 100% | 207 | 300.0 | 1.20 | 2.0 | 0.951 | 236 | 0.4% |
| 90% | 208 | 300.0 | 1.10 | 2.0 | 0.941 | 216 | 0.5% |
| 80% | 208 | 300.0 | 1.00 | 2.0 | 0.929 | 193 | 0.5% |
| 70% | 209 | 300.0 | 0.915 | 2.0 | 0.918 | 175 | 0.5% |
| 60% | 209 | 300.0 | 0.830 | 1.0 | 0.906 | 157 | 0.4% |
| 50% | 209 | 300.0 | 0.772 | 1.0 | 0.897 | 145 | 0.4% |
| 40% | 208 | 300.0 | 0.723 | 1.0 | 0.891 | 134 | 0.4% |
| 30% | 208 | 300.0 | 0.673 | 1.0 | 0.884 | 124 | 0.4% |
| 20% | 207 | 300.0 | 0.621 | 1.0 | 0.875 | 113 | 0.5% |
| 10% | 207 | 300.0 | 0.558 | 1.0 | 0.845 | 97.9 | 0.5% |
| Active Idle | 208 | 300.0 | 0.419 | 1.0 | 0.727 | 63.2 | 0.8% |
