IBM Corporation IBM System x iDataPlex dx360 M2 SPECpower_ssj2008 = 2,066 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: May 18, 2009
Hardware Availability: Jun-2009 Software Availability: Jun-2009 Publication: Jun 3, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 458 24.4
Calibration 2 475 24.5
Calibration 3 475 24.6
100% 475 24.7
90% 437 24.6
80% 420 24.6
70% 387 24.6
60% 356 24.7
50% 322 24.7
40% 288 24.8
30% 255 24.8
20% 222 24.8
10% 187 24.8
Active Idle 116 24.7

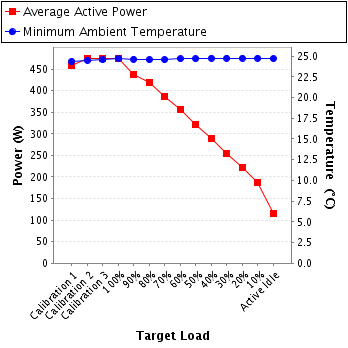

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H245650
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 09-04-BAC-150-01
Date of Calibration: 13-Apr-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 207 300.0 2.27 5.0 0.973 458 0.5%
Calibration 2 207 300.0 2.35 5.0 0.974 475 0.5%
Calibration 3 207 300.0 2.35 5.0 0.974 475 0.5%
100% 207 300.0 2.35 5.0 0.974 475 0.5%
90% 207 300.0 2.17 5.0 0.971 437 0.5%
80% 207 300.0 2.09 5.0 0.969 420 0.5%
70% 207 300.0 1.93 2.0 0.967 387 0.3%
60% 207 300.0 1.79 2.0 0.964 356 0.3%
50% 207 300.0 1.62 2.0 0.961 322 0.3%
40% 207 300.0 1.46 2.0 0.956 288 0.4%
30% 207 300.0 1.30 2.0 0.950 255 0.4%
20% 207 300.0 1.14 2.0 0.941 222 0.4%
10% 209 300.0 0.965 1.0 0.926 187 0.3%
Active Idle 209 300.0 0.621 1.0 0.891 116 0.5%

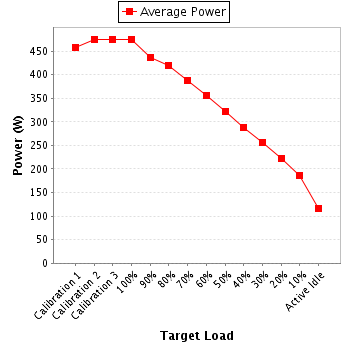

Power details for pwr1
