Hewlett-Packard Company ProLiant BL280c G6 SPECpower_ssj2008 = 1,877 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 25, 2009
Hardware Availability: Aug-2009 Software Availability: Aug-2009 Publication: Jul 15, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.0% 7,210,418 2,783 2,591
90% 90.6% 6,533,072 2,597 2,516
80% 80.1% 5,769,988 2,391 2,413
70% 70.0% 5,046,122 2,191 2,303
60% 59.9% 4,319,974 2,062 2,095
50% 50.0% 3,602,370 1,938 1,858
40% 40.0% 2,883,227 1,815 1,589
30% 30.0% 2,165,299 1,690 1,281
20% 20.0% 1,440,711 1,552 928
10% 10.0% 721,885 1,330 543
Active Idle 0 802 0
∑ssj_ops / ∑power = 1,877

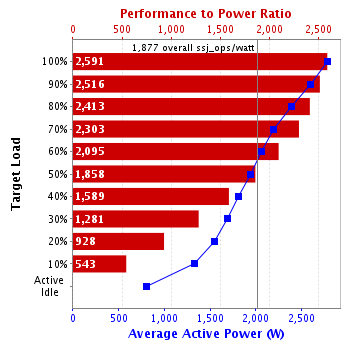

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 32 128 256 128 16 64
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HP BladeSystem c7000 Enclosure
Form Factor: 10U
Power Supply Quantity and Rating (W): 2 x 2400
Power Supply Details: HP Part #499243-B21
Network Switch: None
Network Switch Details: None
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: None
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant BL280c G6
Form Factor: Blade
CPU Name: Intel Xeon L5520
CPU Characteristics: 2.27GHz, 8 MB L3, 1333 MHz system bus
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8.0
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600E; Slots 2A and 4B populated on each CPU node
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: I22 06/01/2009
Management Firmware Version: 1.77 03/30/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard
Model: ProLiant DL360 G5
CPU Description: Intel Xeon E5420
Memory amount (GB): 4
Software
Operating System (OS): Windows 2003 R2 Enterprise Edition Service Pack 2
JVM Vendor: Oracle Corporation
JVM Version: BEA JRockit(R) (build R27.2.0-131-78843-1.6.0-20070320-1457-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705449
Date of Calibration: 17-Dec-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 2,783 25.6
90% 2,597 25.9
80% 2,391 25.6
70% 2,191 25.8
60% 2,062 25.8
50% 1,938 25.9
40% 1,815 25.8
30% 1,690 25.9
20% 1,552 25.8
10% 1,330 25.8
Active Idle 802 25.8
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 25.6 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     7,106,359
Calibration 2     7,201,167
Calibration 3     7,214,764
ssj_ops@calibrated=7,207,965
100% 100.0% 7,207,965 7,210,418
90% 90.6% 6,487,169 6,533,072
80% 80.1% 5,766,372 5,769,988
70% 70.0% 5,045,576 5,046,122
60% 59.9% 4,324,779 4,319,974
50% 50.0% 3,603,983 3,602,370
40% 40.0% 2,883,186 2,883,227
30% 30.0% 2,162,390 2,165,299
20% 20.0% 1,441,593 1,440,711
10% 10.0% 720,797 721,885
Active Idle   0 0

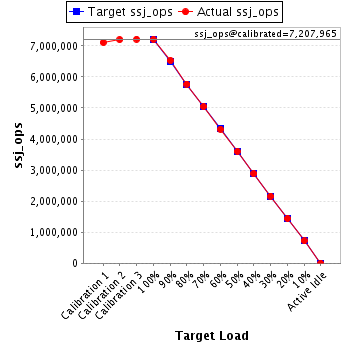

Graph of results
See the Aggregate Performance Report for additional details.
