Dell Inc. PowerEdge R610 (Intel Xeon L5530, 2.40 GHz) SPECpower_ssj2008 = 1,930 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 16, 2009
Hardware Availability: Aug-2009 Software Availability: May-2009 Publication: Sep 9, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 468,471 172 2,721
90% 89.8% 422,024 161 2,619
80% 79.8% 375,048 149 2,510
70% 69.8% 327,870 139 2,356
60% 60.5% 284,444 131 2,175
50% 50.3% 236,387 122 1,936
40% 40.1% 188,615 114 1,652
30% 30.1% 141,325 107 1,326
20% 19.8% 92,925 98.0 949
10% 10.1% 47,511 86.0 552
Active Idle 0 60.0 0
∑ssj_ops / ∑power = 1,930

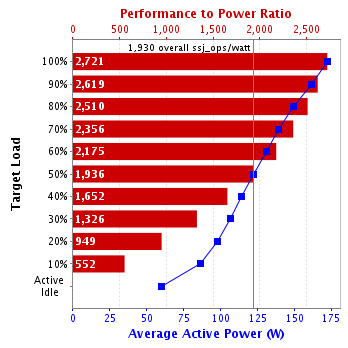

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R610 (Intel Xeon L5530, 2.40 GHz)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad Core, 2.40 GHz, 8 MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB PC3-8500E (Slots A1-A2, B1-B2 populated)
Power Supply Quantity and Rating (W): 1 x 502
Power Supply Details: Dell SKU 330-3517
Disk Drive: 1 x 50GB SSD 2.5" SATA (Dell SKU 341-8857)
Disk Controller: SAS6iR
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port onboard Broadcom NetXtreme II BCM5709
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: SP2 (64-bit)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R)6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: 1.2.5
Management Firmware Version: A01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: Remote Desktop used
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge 1950
CPU Description: Intel Xeon 5160
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows 2003 Server Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: Jrockit(R) 1.6.0_02 build R26.4.0-63 (32-bit)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H648897
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 2565983
Date of Calibration: 20-Aug-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 172 22.7
90% 161 22.8
80% 149 22.8
70% 139 22.8
60% 131 22.8
50% 122 22.8
40% 114 22.8
30% 107 22.8
20% 98.0 22.7
10% 86.0 22.7
Active Idle 60.0 22.7
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 1 wire 22.7 255
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     467,445
Calibration 2     469,572
Calibration 3     470,303
ssj_ops@calibrated=469,937
100% 99.7% 469,937 468,471
90% 89.8% 422,943 422,024
80% 79.8% 375,950 375,048
70% 69.8% 328,956 327,870
60% 60.5% 281,962 284,444
50% 50.3% 234,969 236,387
40% 40.1% 187,975 188,615
30% 30.1% 140,981 141,325
20% 19.8% 93,987 92,925
10% 10.1% 46,994 47,511
Active Idle   0 0
Graph of results
