Plat'Home Cloud Station E SPECpower_ssj2008 = 1,903 overall ssj_ops/watt
Test Sponsor: Plat'Home SPEC License #: 3835 Test Method: Single Node
Tested By: Plat'Home Test Location: Chiyoda-Ku, Tokyo, Japan Test Date: Jul 22, 2009
Hardware Availability: Aug-2009 Software Availability: Jun-2009 Publication: Oct 21, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 172 21.3
Calibration 2 172 21.3
Calibration 3 172 21.2
100% 172 21.2
90% 162 21.1
80% 151 21.1
70% 142 21.2
60% 131 21.2
50% 121 21.1
40% 112 21.1
30% 104 21.1
20% 95.6 20.9
10% 83.0 21.0
Active Idle 56.2 21.0

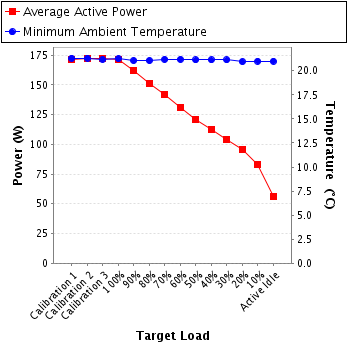

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91J340816
Connectivity: RS-232
Input Connection: Default
Calibration Institute: AIST, JEMIC, and JQA
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: B091354
Date of Calibration: 25-Mar-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.40.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 102 300.0 1.71 2.0 0.982 172 0.5%
Calibration 2 102 300.0 1.72 2.0 0.982 172 0.5%
Calibration 3 102 300.0 1.72 2.0 0.982 172 0.5%
100% 102 300.0 1.71 2.0 0.982 172 0.5%
90% 102 300.0 1.61 2.0 0.980 162 0.5%
80% 102 300.0 1.51 2.0 0.979 151 0.5%
70% 102 300.0 1.42 2.0 0.978 142 0.6%
60% 102 300.0 1.31 2.0 0.978 131 0.6%
50% 102 300.0 1.21 2.0 0.976 121 0.6%
40% 103 300.0 1.13 2.0 0.974 112 0.7%
30% 103 300.0 1.05 2.0 0.969 104 0.7%
20% 103 300.0 0.968 2.0 0.962 95.6 0.8%
10% 103 300.0 0.855 1.0 0.944 83.0 0.5%
Active Idle 103 300.0 0.579 1.0 0.946 56.2 0.7%

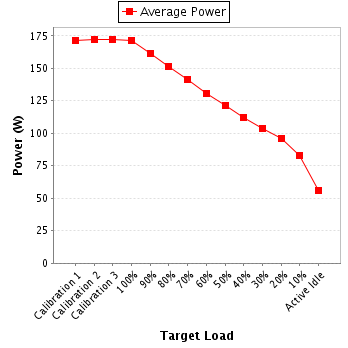

Power details for pwr1
