IBM Corporation IBM System x3550 M2 | SPECpower_ssj2008 = 2,018 overall ssj_ops/watt | ||||
Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
Tested By: | IBM Corporation | Test Location: | Nangang, Taipei, Taiwan | Test Date: | Oct 22, 2009 |
Hardware Availability: | Sep-2009 | Software Availability: | Jun-2009 | Publication: | Nov 18, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

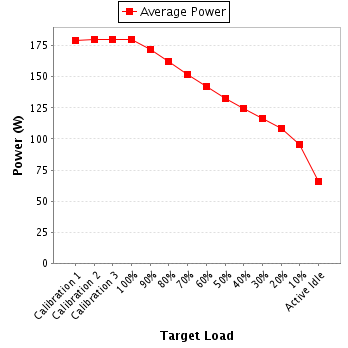

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 179 | 20.9 |
Calibration 2 | 180 | 20.8 |
Calibration 3 | 180 | 20.8 |
100% | 180 | 20.6 |
90% | 172 | 20.6 |
80% | 162 | 20.7 |
70% | 152 | 20.6 |
60% | 142 | 20.7 |
50% | 133 | 20.6 |
40% | 124 | 20.6 |
30% | 117 | 20.6 |
20% | 108 | 20.6 |
10% | 95.2 | 20.6 |
Active Idle | 65.8 | 20.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | YOKOGAWA |
Model: | WT210+ RS-232 |
Serial Number: | 91H245648 |
Connectivity: | RS-232 |
Input Connection: | Default |
Calibration Institute: | NML/ROC |
Accredited by: | ETC, Taiwan |
Calibration Label: | 09-04-BAC-150-02 |
Date of Calibration: | 13-Apr-2009 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.3.8-76a9e72a |
Setup Description: | Unknown |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi, Inc. |
Model: | Watchport/H USB |
Driver Version: | 4.20.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | Unknown |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 209 | 300.0 | 0.925 | 1.0 | 0.927 | 179 | 0.3% |
Calibration 2 | 209 | 300.0 | 0.930 | 1.0 | 0.928 | 180 | 0.3% |
Calibration 3 | 209 | 300.0 | 0.930 | 1.0 | 0.928 | 180 | 0.3% |
100% | 209 | 300.0 | 0.929 | 1.0 | 0.928 | 180 | 0.3% |
90% | 208 | 300.0 | 0.895 | 1.0 | 0.922 | 172 | 0.4% |
80% | 208 | 300.0 | 0.855 | 1.0 | 0.914 | 162 | 0.4% |
70% | 207 | 300.0 | 0.811 | 1.0 | 0.904 | 152 | 0.4% |
60% | 207 | 300.0 | 0.768 | 1.0 | 0.894 | 142 | 0.4% |
50% | 207 | 300.0 | 0.725 | 1.0 | 0.882 | 133 | 0.4% |
40% | 207 | 300.0 | 0.688 | 1.0 | 0.870 | 124 | 0.5% |
30% | 207 | 300.0 | 0.657 | 1.0 | 0.859 | 117 | 0.5% |
20% | 208 | 300.0 | 0.620 | 1.0 | 0.838 | 108 | 0.5% |
10% | 208 | 300.0 | 0.571 | 1.0 | 0.802 | 95.2 | 0.6% |
Active Idle | 208 | 300.0 | 0.454 | 0.5 | 0.698 | 65.8 | 0.5% |
