Acer Incorporated Gateway GR380 F1 SPECpower_ssj2008 = 1,592 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Feb 25, 2010
Hardware Availability: May-2010 Software Availability: Jun-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 465,883 198 2,358
90% 89.8% 418,915 187 2,235
80% 80.1% 373,685 177 2,108
70% 70.1% 326,978 167 1,962
60% 59.9% 279,444 156 1,789
50% 50.0% 233,341 147 1,591
40% 40.2% 187,758 138 1,365
30% 29.6% 138,305 128 1,083
20% 20.1% 93,694 119 790
10% 10.0% 46,557 107 434
Active Idle 0 88.2 0
∑ssj_ops / ∑power = 1,592

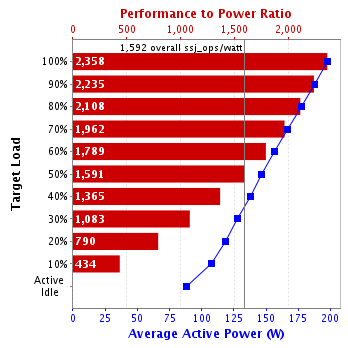

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR380 F1
Form Factor: 2U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8.0
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PWS-721P-1R
Disk Drive: 1 x Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 4 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power enabled in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1600m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: D07 02/25/2010
Management Firmware Version: 1.00 02/23/2010
Workload Version: SSJ 1.2.6
Director Location: SUT
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR160 F1
CPU Description: Intel Xeon E5504
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2008 x64, Enterprise Edition SP2
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H520530
Connectivity: RS232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SE-Laboratories
Calibration Label: C56-0066
Date of Calibration: 22-Dec-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.9-49c8760c
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 198 22.8
90% 187 22.6
80% 177 22.7
70% 167 22.6
60% 156 22.4
50% 147 22.3
40% 138 22.3
30% 128 22.4
20% 119 22.3
10% 107 22.2
Active Idle 88.2 22.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.2 26
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     461,692
Calibration 2     467,472
Calibration 3     465,889
ssj_ops@calibrated=466,680
100% 99.8% 466,680 465,883
90% 89.8% 420,012 418,915
80% 80.1% 373,344 373,685
70% 70.1% 326,676 326,978
60% 59.9% 280,008 279,444
50% 50.0% 233,340 233,341
40% 40.2% 186,672 187,758
30% 29.6% 140,004 138,305
20% 20.1% 93,336 93,694
10% 10.0% 46,668 46,557
Active Idle   0 0
Graph of results
