IBM Corporation IBM System x iDataPlex dx360 M3 ssj_ops@100% = 905,131
ssj_ops@100% per JVM = 150,855
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: Mar 10, 2010
Hardware Availability: Jun-2010 Software Availability: Oct-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     906,578
Calibration 2     910,287
Calibration 3     908,886
ssj_ops@calibrated=909,586
100% 99.5% 909,586 905,131
90% 89.8% 818,628 816,698
80% 80.5% 727,669 732,177
70% 69.7% 636,710 634,230
60% 60.0% 545,752 545,743
50% 50.1% 454,793 455,924
40% 40.1% 363,835 364,530
30% 30.1% 272,876 274,103
20% 20.1% 181,917 183,090
10% 10.0% 90,959 90,514
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x iDataPlex dx360 M3
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600R; slots 3, 6, 8, 11, 14, and 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB SATA SSD, feature code 5197
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel 82575 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver plan in OS
Operating System (OS): Microsoft Windows Server 2008 x64 Datacenter Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: TME145U
Management Firmware Version: YUOO57F
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-RPM67V6CLDF.001 151,149
WIN-RPM67V6CLDF.002 150,976
WIN-RPM67V6CLDF.003 151,837
WIN-RPM67V6CLDF.004 147,134
WIN-RPM67V6CLDF.005 150,684
WIN-RPM67V6CLDF.006 153,351
ssj_ops@100% 905,131
ssj_ops@100% per JVM 150,855

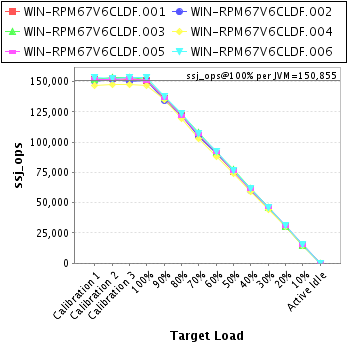

Graph of per-instance results
JVM 'WIN-RPM67V6CLDF.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,841
Calibration 2     152,917
Calibration 3     151,455
ssj_ops@calibrated=152,186
100% 99.3% 152,186 151,149
90% 89.4% 136,968 135,984
80% 80.3% 121,749 122,233
70% 69.2% 106,530 105,262
60% 59.5% 91,312 90,569
50% 49.7% 76,093 75,628
40% 40.3% 60,874 61,397
30% 30.4% 45,656 46,194
20% 20.1% 30,437 30,577
10% 9.9% 15,219 15,106
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPM67V6CLDF.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,248
Calibration 2     151,465
Calibration 3     150,343
ssj_ops@calibrated=150,904
100% 100.0% 150,904 150,976
90% 89.0% 135,814 134,342
80% 80.7% 120,723 121,745
70% 69.2% 105,633 104,456
60% 60.2% 90,542 90,906
50% 50.6% 75,452 76,309
40% 39.7% 60,362 59,963
30% 30.4% 45,271 45,809
20% 20.1% 30,181 30,270
10% 10.1% 15,090 15,194
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPM67V6CLDF.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,017
Calibration 2     153,634
Calibration 3     153,340
ssj_ops@calibrated=153,487
100% 98.9% 153,487 151,837
90% 89.0% 138,138 136,619
80% 80.2% 122,789 123,088
70% 70.2% 107,441 107,776
60% 59.8% 92,092 91,834
50% 50.5% 76,743 77,566
40% 40.4% 61,395 61,974
30% 29.9% 46,046 45,855
20% 19.9% 30,697 30,549
10% 9.6% 15,349 14,765
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPM67V6CLDF.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,056
Calibration 2     147,612
Calibration 3     147,566
ssj_ops@calibrated=147,589
100% 99.7% 147,589 147,134
90% 91.4% 132,830 134,899
80% 81.0% 118,071 119,503
70% 69.7% 103,312 102,897
60% 59.8% 88,553 88,204
50% 50.1% 73,794 74,013
40% 39.9% 59,036 58,851
30% 30.0% 44,277 44,329
20% 20.3% 29,518 30,014
10% 10.2% 14,759 15,032
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPM67V6CLDF.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,032
Calibration 2     151,843
Calibration 3     152,684
ssj_ops@calibrated=152,263
100% 99.0% 152,263 150,684
90% 89.9% 137,037 136,848
80% 80.1% 121,811 121,945
70% 69.8% 106,584 106,354
60% 60.3% 91,358 91,884
50% 49.8% 76,132 75,887
40% 40.1% 60,905 60,983
30% 30.4% 45,679 46,264
20% 20.3% 30,453 30,856
10% 10.0% 15,226 15,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-RPM67V6CLDF.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,384
Calibration 2     152,816
Calibration 3     153,499
ssj_ops@calibrated=153,157
100% 100.1% 153,157 153,351
90% 90.1% 137,842 138,006
80% 80.7% 122,526 123,663
70% 70.2% 107,210 107,483
60% 60.3% 91,894 92,345
50% 50.0% 76,579 76,521
40% 40.1% 61,263 61,362
30% 29.8% 45,947 45,652
20% 20.1% 30,631 30,823
10% 9.9% 15,316 15,234
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
