IBM Corporation IBM System x3650 M3 ssj_ops@100% = 922,152
ssj_ops@100% per JVM = 153,692
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nangang, Taipei, Taiwan Test Date: Mar 10, 2010
Hardware Availability: Jun-2010 Software Availability: Oct-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     921,981
Calibration 2     924,450
Calibration 3     925,110
ssj_ops@calibrated=924,780
100% 99.7% 924,780 922,152
90% 90.1% 832,302 833,151
80% 80.1% 739,824 740,798
70% 70.0% 647,346 647,050
60% 59.9% 554,868 554,392
50% 50.2% 462,390 464,077
40% 39.8% 369,912 368,260
30% 30.1% 277,434 278,063
20% 20.0% 184,956 185,347
10% 10.1% 92,478 93,025
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3650 M3
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600R ECC; slots 3, 6, 9, 12, 15 and 18 populated
Power Supply Quantity and Rating (W): 1 x 675
Power Supply Details: IBM P/N 39Y7200
Disk Drive: 1 x 50GB SATA SSD, IBM Feature code 5197
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Broadcom NetXtreme II Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Note)
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: D6E145W
Management Firmware Version: YUOO57G
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-K3SJKVGA8LB.001 153,506
WIN-K3SJKVGA8LB.002 153,568
WIN-K3SJKVGA8LB.003 153,879
WIN-K3SJKVGA8LB.004 155,742
WIN-K3SJKVGA8LB.005 153,427
WIN-K3SJKVGA8LB.006 152,030
ssj_ops@100% 922,152
ssj_ops@100% per JVM 153,692

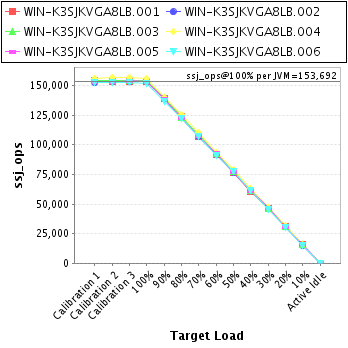

Graph of per-instance results
JVM 'WIN-K3SJKVGA8LB.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,068
Calibration 2     153,370
Calibration 3     153,449
ssj_ops@calibrated=153,410
100% 100.1% 153,410 153,506
90% 90.5% 138,069 138,787
80% 81.0% 122,728 124,239
70% 69.7% 107,387 106,964
60% 59.8% 92,046 91,741
50% 50.1% 76,705 76,906
40% 39.4% 61,364 60,422
30% 30.4% 46,023 46,561
20% 20.1% 30,682 30,805
10% 10.1% 15,341 15,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K3SJKVGA8LB.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,207
Calibration 2     153,655
Calibration 3     153,268
ssj_ops@calibrated=153,461
100% 100.1% 153,461 153,568
90% 90.4% 138,115 138,681
80% 80.2% 122,769 123,066
70% 69.7% 107,423 106,969
60% 60.1% 92,077 92,172
50% 50.0% 76,731 76,660
40% 39.8% 61,385 61,075
30% 29.9% 46,038 45,940
20% 20.1% 30,692 30,902
10% 9.8% 15,346 15,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K3SJKVGA8LB.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,082
Calibration 2     154,702
Calibration 3     154,618
ssj_ops@calibrated=154,660
100% 99.5% 154,660 153,879
90% 90.6% 139,194 140,157
80% 79.5% 123,728 122,959
70% 70.2% 108,262 108,624
60% 59.9% 92,796 92,647
50% 50.2% 77,330 77,661
40% 39.7% 61,864 61,326
30% 30.1% 46,398 46,587
20% 20.1% 30,932 31,094
10% 10.2% 15,466 15,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K3SJKVGA8LB.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,014
Calibration 2     157,072
Calibration 3     156,807
ssj_ops@calibrated=156,940
100% 99.2% 156,940 155,742
90% 89.4% 141,246 140,332
80% 80.0% 125,552 125,630
70% 70.3% 109,858 110,299
60% 59.8% 94,164 93,880
50% 50.2% 78,470 78,747
40% 40.2% 62,776 63,096
30% 29.8% 47,082 46,724
20% 20.2% 31,388 31,702
10% 9.9% 15,694 15,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K3SJKVGA8LB.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,214
Calibration 2     152,919
Calibration 3     153,983
ssj_ops@calibrated=153,451
100% 100.0% 153,451 153,427
90% 90.3% 138,106 138,578
80% 79.9% 122,761 122,577
70% 69.8% 107,416 107,042
60% 60.6% 92,071 93,066
50% 50.0% 76,726 76,754
40% 39.8% 61,381 61,026
30% 30.6% 46,035 46,912
20% 19.9% 30,690 30,578
10% 10.4% 15,345 15,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K3SJKVGA8LB.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,396
Calibration 2     152,733
Calibration 3     152,983
ssj_ops@calibrated=152,858
100% 99.5% 152,858 152,030
90% 89.4% 137,572 136,617
80% 80.0% 122,287 122,327
70% 70.1% 107,001 107,153
60% 59.5% 91,715 90,887
50% 50.6% 76,429 77,348
40% 40.1% 61,143 61,314
30% 29.7% 45,857 45,338
20% 19.8% 30,572 30,266
10% 10.0% 15,286 15,211
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
