Acer Incorporated Acer AT350 F1 SPECpower_ssj2008 = 1,618 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Mar 16, 2010
Hardware Availability: May-2010 Software Availability: Jun-2009 Publication: Apr 21, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 193 21.2
Calibration 2 193 21.1
Calibration 3 193 21.1
100% 193 21.1
90% 183 21.1
80% 173 21.0
70% 164 21.1
60% 154 21.1
50% 145 21.1
40% 136 21.2
30% 127 21.2
20% 118 21.3
10% 107 21.2
Active Idle 88.5 21.1

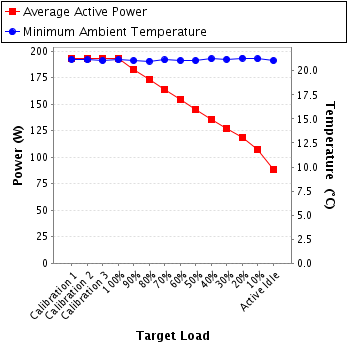

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H520530
Connectivity: RS232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SE-Laboratories
Calibration Label: C56-0066
Date of Calibration: 22-Dec-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 0.974 2.0 0.953 193 0.5%
Calibration 2 208 300.0 0.975 2.0 0.953 193 0.5%
Calibration 3 208 300.0 0.976 2.0 0.953 193 0.5%
100% 208 300.0 0.973 2.0 0.953 193 0.5%
90% 208 300.0 0.926 2.0 0.949 183 0.5%
80% 208 300.0 0.881 2.0 0.945 173 0.5%
70% 208 300.0 0.836 2.0 0.941 164 0.5%
60% 208 300.0 0.792 2.0 0.936 154 0.6%
50% 208 300.0 0.748 2.0 0.932 145 0.6%
40% 208 300.0 0.704 2.0 0.926 136 0.6%
30% 208 300.0 0.665 2.0 0.920 127 0.7%
20% 208 300.0 0.623 2.0 0.913 118 0.7%
10% 208 300.0 0.573 2.0 0.902 107 0.8%
Active Idle 208 300.0 0.483 2.0 0.881 88.5 0.9%

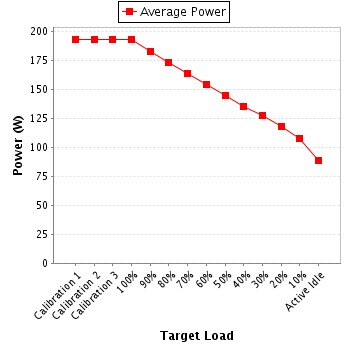

Power details for pwr1
