Hewlett-Packard Company ProLiant DL360 G6 (2.93 GHz, Intel Xeon X5670 processor) SPECpower_ssj2008 = 2,692 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Apr 1, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Apr 21, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 249 23.2
Calibration 2 250 23.2
Calibration 3 250 23.2
100% 250 23.2
90% 229 23.2
80% 206 23.2
70% 188 23.3
60% 170 23.3
50% 158 23.2
40% 147 23.2
30% 136 23.2
20% 127 23.1
10% 113 23.1
Active Idle 68.9 23.1

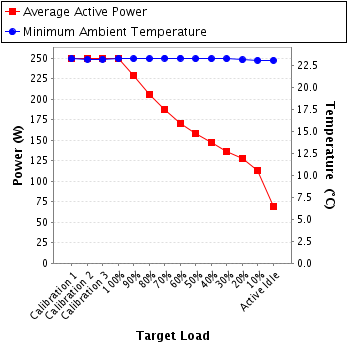

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91J716746
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705673
Date of Calibration: 10-Dec-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main air intake
Notes
none
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 1.26 2.0 0.949 249 0.4%
Calibration 2 210 300.0 1.25 2.0 0.949 250 0.4%
Calibration 3 210 300.0 1.26 2.0 0.949 250 0.4%
100% 210 300.0 1.25 2.0 0.949 250 0.4%
90% 210 300.0 1.16 2.0 0.943 229 0.4%
80% 210 300.0 1.04 2.0 0.941 206 0.5%
70% 210 300.0 0.956 2.0 0.935 188 0.5%
60% 210 300.0 0.880 2.0 0.921 170 0.5%
50% 210 300.0 0.824 2.0 0.914 158 0.6%
40% 210 300.0 0.772 1.0 0.906 147 0.4%
30% 210 300.0 0.720 1.0 0.897 136 0.4%
20% 210 300.0 0.680 1.0 0.891 127 0.4%
10% 211 300.0 0.620 1.0 0.869 113 0.5%
Active Idle 211 300.0 0.406 1.0 0.807 68.9 0.7%

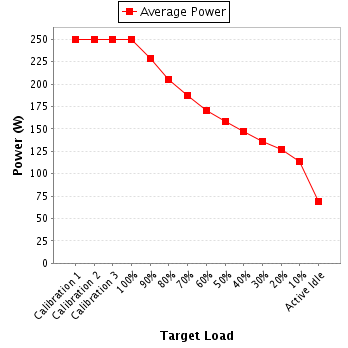

Power details for pwr1
