SPECpower_ssj2008
Host 'WIN-VEDFDCMSAUB' Performance Report
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL380 G6 (2.93 GHz, Intel Xeon X5670 processor) | ssj_ops@100% = 902,465 ssj_ops@100% per JVM = 150,411 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Mar 29, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Sep-2009 | Publication: | Apr 21, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 903,353 | ||
| Calibration 2 | 907,082 | ||
| Calibration 3 | 904,306 | ||
| ssj_ops@calibrated=905,694 | |||
| 100% | 99.6% | 905,694 | 902,465 |
| 90% | 90.8% | 815,125 | 822,600 |
| 80% | 80.9% | 724,555 | 732,446 |
| 70% | 70.2% | 633,986 | 636,159 |
| 60% | 60.2% | 543,417 | 545,033 |
| 50% | 50.0% | 452,847 | 452,736 |
| 40% | 40.1% | 362,278 | 363,625 |
| 30% | 30.0% | 271,708 | 271,682 |
| 20% | 20.1% | 181,139 | 182,300 |
| 10% | 10.0% | 90,569 | 90,807 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | ProLiant DL380 G6 |
| # of Identical Nodes: | 1 |
| Comment: | System Under Test |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL380 G6 (2.93 GHz, Intel Xeon X5670 processor) |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Six-Core, 2.93 GHz, 12 MB L3 cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3-10600E; slots 3 and 6 populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | HP part #: 503296-B21 |
| Disk Drive: | 1 x 60GB SSD 2.5" SATA, HP part #:572071-B21 |
| Disk Controller: | HP Smart Array P410i |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC382i Dual Port Multifunction Gigabit Server Adapters |
| NICs Enabled in Firmware / OS / Connected: | 4/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power saver enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | Used "start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | P64 03/01/2010 |
| Management Firmware Version: | 2.00 12/17/2009 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | none |

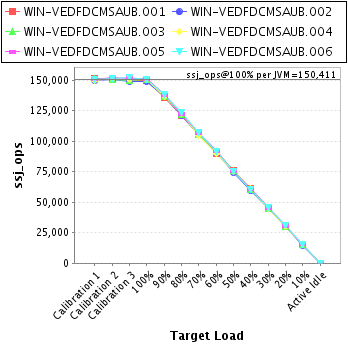

| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-VEDFDCMSAUB.001 | 149,524 |
| WIN-VEDFDCMSAUB.002 | 149,343 |
| WIN-VEDFDCMSAUB.003 | 151,029 |
| WIN-VEDFDCMSAUB.004 | 150,456 |
| WIN-VEDFDCMSAUB.005 | 151,297 |
| WIN-VEDFDCMSAUB.006 | 150,817 |
| ssj_ops@100% | 902,465 |
| ssj_ops@100% per JVM | 150,411 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 151,132 | ||
| Calibration 2 | 151,227 | ||
| Calibration 3 | 150,156 | ||
| ssj_ops@calibrated=150,691 | |||
| 100% | 99.2% | 150,691 | 149,524 |
| 90% | 90.3% | 135,622 | 136,003 |
| 80% | 80.4% | 120,553 | 121,150 |
| 70% | 70.3% | 105,484 | 105,876 |
| 60% | 59.5% | 90,415 | 89,632 |
| 50% | 50.6% | 75,346 | 76,280 |
| 40% | 40.5% | 60,277 | 61,009 |
| 30% | 30.3% | 45,207 | 45,592 |
| 20% | 20.0% | 30,138 | 30,099 |
| 10% | 10.0% | 15,069 | 15,112 |
| Active Idle | 0 | 0 | |

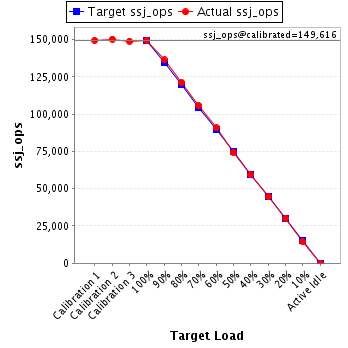

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 149,479 | ||
| Calibration 2 | 150,267 | ||
| Calibration 3 | 148,965 | ||
| ssj_ops@calibrated=149,616 | |||
| 100% | 99.8% | 149,616 | 149,343 |
| 90% | 91.2% | 134,654 | 136,393 |
| 80% | 80.9% | 119,693 | 121,040 |
| 70% | 70.6% | 104,731 | 105,619 |
| 60% | 60.6% | 89,769 | 90,715 |
| 50% | 49.7% | 74,808 | 74,388 |
| 40% | 39.8% | 59,846 | 59,476 |
| 30% | 29.8% | 44,885 | 44,634 |
| 20% | 20.1% | 29,923 | 30,100 |
| 10% | 9.8% | 14,962 | 14,595 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 151,094 | ||
| Calibration 2 | 150,991 | ||
| Calibration 3 | 150,213 | ||
| ssj_ops@calibrated=150,602 | |||
| 100% | 100.3% | 150,602 | 151,029 |
| 90% | 90.8% | 135,542 | 136,737 |
| 80% | 80.9% | 120,482 | 121,906 |
| 70% | 70.3% | 105,422 | 105,829 |
| 60% | 60.6% | 90,361 | 91,312 |
| 50% | 50.6% | 75,301 | 76,153 |
| 40% | 40.0% | 60,241 | 60,192 |
| 30% | 29.9% | 45,181 | 45,025 |
| 20% | 20.2% | 30,120 | 30,477 |
| 10% | 10.0% | 15,060 | 15,108 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 149,667 | ||
| Calibration 2 | 151,150 | ||
| Calibration 3 | 150,905 | ||
| ssj_ops@calibrated=151,028 | |||
| 100% | 99.6% | 151,028 | 150,456 |
| 90% | 90.5% | 135,925 | 136,749 |
| 80% | 81.4% | 120,822 | 122,930 |
| 70% | 69.5% | 105,719 | 104,981 |
| 60% | 59.5% | 90,617 | 89,917 |
| 50% | 49.7% | 75,514 | 75,071 |
| 40% | 40.4% | 60,411 | 60,961 |
| 30% | 29.9% | 45,308 | 45,112 |
| 20% | 20.0% | 30,206 | 30,202 |
| 10% | 10.1% | 15,103 | 15,212 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 150,975 | ||
| Calibration 2 | 152,056 | ||
| Calibration 3 | 151,505 | ||
| ssj_ops@calibrated=151,780 | |||
| 100% | 99.7% | 151,780 | 151,297 |
| 90% | 91.0% | 136,602 | 138,105 |
| 80% | 80.5% | 121,424 | 122,137 |
| 70% | 70.5% | 106,246 | 106,957 |
| 60% | 60.7% | 91,068 | 92,090 |
| 50% | 49.7% | 75,890 | 75,443 |
| 40% | 40.3% | 60,712 | 61,216 |
| 30% | 30.0% | 45,534 | 45,521 |
| 20% | 20.2% | 30,356 | 30,597 |
| 10% | 10.2% | 15,178 | 15,517 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 151,006 | ||
| Calibration 2 | 151,391 | ||
| Calibration 3 | 152,562 | ||
| ssj_ops@calibrated=151,977 | |||
| 100% | 99.2% | 151,977 | 150,817 |
| 90% | 91.2% | 136,779 | 138,613 |
| 80% | 81.1% | 121,581 | 123,283 |
| 70% | 70.3% | 106,384 | 106,896 |
| 60% | 60.1% | 91,186 | 91,367 |
| 50% | 49.6% | 75,988 | 75,402 |
| 40% | 40.0% | 60,791 | 60,770 |
| 30% | 30.1% | 45,593 | 45,798 |
| 20% | 20.3% | 30,395 | 30,825 |
| 10% | 10.0% | 15,198 | 15,262 |
| Active Idle | 0 | 0 | |
