Dell Inc. PowerEdge R815 (AMD Opteron 6174, 2.20 GHz) ssj_ops@100% = 1,840,454
ssj_ops@100% per JVM = 230,057
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jun 6, 2010
Hardware Availability: Jul-2010 Software Availability: Jul-2009 Publication: Jun 30, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,848,592
Calibration 2     1,850,286
Calibration 3     1,850,326
ssj_ops@calibrated=1,850,306
100% 99.5% 1,850,306 1,840,454
90% 90.0% 1,665,275 1,665,847
80% 80.0% 1,480,245 1,479,579
70% 70.2% 1,295,214 1,298,616
60% 60.2% 1,110,184 1,113,275
50% 49.8% 925,153 921,524
40% 40.0% 740,122 739,481
30% 30.0% 555,092 555,325
20% 19.9% 370,061 367,667
10% 10.0% 185,031 185,275
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R815 (AMD Opteron 6174, 2.20 GHz)
Form Factor: 2U
CPU Name: AMD Opteron 6174
CPU Characteristics: Twelve Core, 2.20 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 48 cores, 4 chips, 12 cores/chip
Hardware Threads: 48 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 16 x 2048 MB
Memory Details: 2 GB 2Rx8 PC3-10600E ECC, Slots A1-A4, B1-B4, C1-C4, D1-D4 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Dell PN 9PG9X
Disk Drive: 1 x 50GB 2.5" SATA SSD (Dell PN Y949P)
Disk Controller: PERC H200 Internal
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port onboard Gigabit
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xms1875m -Xmx1875m -Xmn1400m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3F,FC0,3F000,FC0000,3F000000,FC0000000,3F000000000,FC0000000000]
JVM Instances: 8
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 1.1.9
Management Firmware Version: 150 X16 iDRAC
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: Microsoft Hotfix KB974090
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
R815-SPECpower.001 227,389
R815-SPECpower.002 231,257
R815-SPECpower.003 232,001
R815-SPECpower.004 231,618
R815-SPECpower.005 226,506
R815-SPECpower.006 229,281
R815-SPECpower.007 228,004
R815-SPECpower.008 234,398
ssj_ops@100% 1,840,454
ssj_ops@100% per JVM 230,057

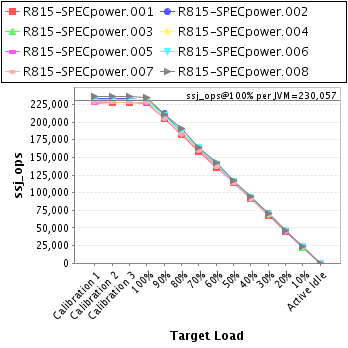

Graph of per-instance results
JVM 'R815-SPECpower.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,671
Calibration 2     228,221
Calibration 3     228,197
ssj_ops@calibrated=228,209
100% 99.6% 228,209 227,389
90% 90.1% 205,388 205,570
80% 79.9% 182,567 182,391
70% 69.4% 159,746 158,404
60% 59.8% 136,925 136,394
50% 50.0% 114,104 114,059
40% 40.1% 91,284 91,420
30% 29.9% 68,463 68,319
20% 20.0% 45,642 45,678
10% 10.1% 22,821 23,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R815-SPECpower.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     233,291
Calibration 2     233,111
Calibration 3     233,213
ssj_ops@calibrated=233,162
100% 99.2% 233,162 231,257
90% 90.8% 209,846 211,811
80% 79.5% 186,530 185,398
70% 70.6% 163,213 164,629
60% 60.3% 139,897 140,489
50% 49.9% 116,581 116,411
40% 39.9% 93,265 92,921
30% 30.3% 69,949 70,672
20% 20.0% 46,632 46,534
10% 10.0% 23,316 23,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R815-SPECpower.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     230,921
Calibration 2     231,487
Calibration 3     232,086
ssj_ops@calibrated=231,787
100% 100.1% 231,787 232,001
90% 90.2% 208,608 209,073
80% 79.7% 185,429 184,849
70% 70.6% 162,251 163,746
60% 60.3% 139,072 139,722
50% 49.8% 115,893 115,513
40% 40.1% 92,715 92,962
30% 30.1% 69,536 69,835
20% 20.0% 46,357 46,374
10% 9.9% 23,179 22,971
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R815-SPECpower.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     231,763
Calibration 2     232,446
Calibration 3     231,960
ssj_ops@calibrated=232,203
100% 99.7% 232,203 231,618
90% 89.3% 208,983 207,286
80% 79.4% 185,763 184,284
70% 70.5% 162,542 163,737
60% 60.2% 139,322 139,746
50% 49.7% 116,102 115,317
40% 39.7% 92,881 92,180
30% 30.0% 69,661 69,568
20% 19.9% 46,441 46,238
10% 10.0% 23,220 23,261
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R815-SPECpower.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,815
Calibration 2     228,410
Calibration 3     228,373
ssj_ops@calibrated=228,391
100% 99.2% 228,391 226,506
90% 90.1% 205,552 205,857
80% 80.2% 182,713 183,059
70% 70.7% 159,874 161,497
60% 60.6% 137,035 138,357
50% 49.9% 114,196 113,994
40% 39.9% 91,357 91,128
30% 30.3% 68,517 69,265
20% 19.6% 45,678 44,857
10% 10.0% 22,839 22,771
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R815-SPECpower.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     231,774
Calibration 2     231,937
Calibration 3     231,423
ssj_ops@calibrated=231,680
100% 99.0% 231,680 229,281
90% 90.6% 208,512 210,003
80% 79.9% 185,344 185,227
70% 70.5% 162,176 163,386
60% 60.2% 139,008 139,582
50% 49.9% 115,840 115,677
40% 40.1% 92,672 92,814
30% 30.0% 69,504 69,421
20% 19.7% 46,336 45,749
10% 10.1% 23,168 23,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R815-SPECpower.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,012
Calibration 2     228,500
Calibration 3     228,273
ssj_ops@calibrated=228,387
100% 99.8% 228,387 228,004
90% 89.8% 205,548 205,124
80% 80.5% 182,709 183,900
70% 69.7% 159,871 159,262
60% 59.9% 137,032 136,809
50% 49.7% 114,193 113,408
40% 40.2% 91,355 91,770
30% 29.7% 68,516 67,924
20% 20.1% 45,677 45,832
10% 10.0% 22,839 22,930
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R815-SPECpower.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,345
Calibration 2     236,175
Calibration 3     236,800
ssj_ops@calibrated=236,487
100% 99.1% 236,487 234,398
90% 89.3% 212,839 211,124
80% 80.5% 189,190 190,470
70% 69.3% 165,541 163,953
60% 60.1% 141,892 142,176
50% 49.5% 118,244 117,146
40% 39.9% 94,595 94,285
30% 29.7% 70,946 70,319
20% 19.6% 47,297 46,406
10% 10.0% 23,649 23,531
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
