Dell Inc. PowerEdge M610 ssj_ops@100% = 899,818
ssj_ops@100% per JVM = 149,970
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 12, 2010
Hardware Availability: Sep-2010 Software Availability: Jul-2009 Publication: Sep 9, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     897,572
Calibration 2     901,321
Calibration 3     900,843
ssj_ops@calibrated=901,082
100% 99.9% 901,082 899,818
90% 90.2% 810,974 812,897
80% 80.0% 720,866 720,955
70% 69.5% 630,758 625,946
60% 59.7% 540,649 538,366
50% 49.8% 450,541 448,995
40% 39.7% 360,433 357,919
30% 30.1% 270,325 271,295
20% 19.9% 180,216 179,644
10% 9.9% 90,108 89,515
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M610
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M610
Form Factor: Blade
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50GB 2.5" SSD SATA (Dell PN Y949P)
Disk Controller: Modular SATA Pass-Through
# and type of Network Interface Cards (NICs) Installed: 1 x onboard dual-port Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.9
Management Firmware Version: iDRAC 3.0.0 A02 / CMC 3.0.1 A00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M610-3.001 147,733
M610-3.002 149,887
M610-3.003 151,977
M610-3.004 152,978
M610-3.005 149,126
M610-3.006 148,116
ssj_ops@100% 899,818
ssj_ops@100% per JVM 149,970

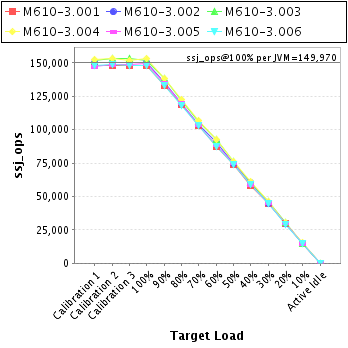

Graph of per-instance results
JVM 'M610-3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,127
Calibration 2     147,715
Calibration 3     147,777
ssj_ops@calibrated=147,746
100% 100.0% 147,746 147,733
90% 90.1% 132,972 133,153
80% 80.4% 118,197 118,795
70% 69.8% 103,422 103,197
60% 59.0% 88,648 87,198
50% 49.8% 73,873 73,647
40% 39.3% 59,099 58,103
30% 30.4% 44,324 44,859
20% 20.2% 29,549 29,787
10% 9.8% 14,775 14,422
Active Idle   0 0
Graph of results
JVM 'M610-3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,885
Calibration 2     149,955
Calibration 3     150,447
ssj_ops@calibrated=150,201
100% 99.8% 150,201 149,887
90% 90.2% 135,181 135,447
80% 79.7% 120,161 119,636
70% 69.0% 105,141 103,624
60% 60.3% 90,121 90,617
50% 49.6% 75,101 74,471
40% 40.1% 60,080 60,157
30% 30.0% 45,060 44,985
20% 19.8% 30,040 29,677
10% 9.9% 15,020 14,932
Active Idle   0 0
Graph of results
JVM 'M610-3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,940
Calibration 2     153,079
Calibration 3     153,474
ssj_ops@calibrated=153,277
100% 99.2% 153,277 151,977
90% 90.2% 137,949 138,179
80% 79.7% 122,621 122,130
70% 69.1% 107,294 105,928
60% 60.2% 91,966 92,294
50% 49.7% 76,638 76,186
40% 39.5% 61,311 60,511
30% 30.1% 45,983 46,127
20% 20.0% 30,655 30,717
10% 9.9% 15,328 15,129
Active Idle   0 0
Graph of results
JVM 'M610-3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,286
Calibration 2     153,373
Calibration 3     152,086
ssj_ops@calibrated=152,730
100% 100.2% 152,730 152,978
90% 90.5% 137,457 138,180
80% 80.2% 122,184 122,539
70% 69.8% 106,911 106,585
60% 60.6% 91,638 92,566
50% 49.9% 76,365 76,148
40% 40.1% 61,092 61,315
30% 30.1% 45,819 45,979
20% 19.7% 30,546 30,130
10% 10.2% 15,273 15,583
Active Idle   0 0
Graph of results
JVM 'M610-3.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,152
Calibration 2     148,460
Calibration 3     149,049
ssj_ops@calibrated=148,754
100% 100.3% 148,754 149,126
90% 90.6% 133,879 134,842
80% 80.6% 119,003 119,851
70% 69.4% 104,128 103,239
60% 59.3% 89,253 88,276
50% 50.3% 74,377 74,832
40% 39.4% 59,502 58,635
30% 30.2% 44,626 44,881
20% 20.2% 29,751 29,997
10% 9.8% 14,875 14,560
Active Idle   0 0
Graph of results
JVM 'M610-3.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,182
Calibration 2     148,739
Calibration 3     148,010
ssj_ops@calibrated=148,375
100% 99.8% 148,375 148,116
90% 89.7% 133,537 133,096
80% 79.5% 118,700 118,005
70% 69.7% 103,862 103,372
60% 58.9% 89,025 87,414
50% 49.7% 74,187 73,711
40% 39.9% 59,350 59,198
30% 30.0% 44,512 44,464
20% 19.8% 29,675 29,335
10% 10.0% 14,837 14,890
Active Idle   0 0
Graph of results
