Acer Incorporated Gateway GR360 F1 (Intel Xeon X5670, 2.93 GHz) ssj_ops@100% = 891,056
ssj_ops@100% per JVM = 148,509
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Aug 20, 2010
Hardware Availability: Jun-2010 Software Availability: Dec-2009 Publication: Sep 22, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     894,356
Calibration 2     895,491
Calibration 3     895,858
ssj_ops@calibrated=895,675
100% 99.5% 895,675 891,056
90% 90.1% 806,107 806,961
80% 80.0% 716,540 716,219
70% 70.2% 626,972 628,835
60% 59.8% 537,405 535,677
50% 50.1% 447,837 448,513
40% 40.2% 358,270 359,714
30% 30.0% 268,702 268,299
20% 19.9% 179,135 178,149
10% 10.0% 89,567 89,575
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR360 F1 (Intel Xeon X5670, 2.93 GHz)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: PWS-703P-1R
Disk Drive: 1 x 64GB SSD 2.5" SATA, Acer Part#KF.0640N.001
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P02
Management Firmware Version: 1.01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-VD0SLJF7GLU.001 152,052
WIN-VD0SLJF7GLU.002 146,997
WIN-VD0SLJF7GLU.003 146,908
WIN-VD0SLJF7GLU.004 149,306
WIN-VD0SLJF7GLU.005 148,542
WIN-VD0SLJF7GLU.006 147,252
ssj_ops@100% 891,056
ssj_ops@100% per JVM 148,509

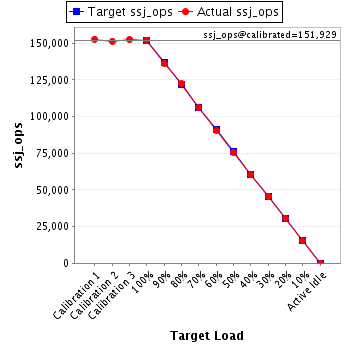

Graph of per-instance results
JVM 'WIN-VD0SLJF7GLU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,732
Calibration 2     151,354
Calibration 3     152,504
ssj_ops@calibrated=151,929
100% 100.1% 151,929 152,052
90% 89.6% 136,736 136,200
80% 80.6% 121,543 122,407
70% 70.0% 106,350 106,334
60% 59.5% 91,157 90,436
50% 49.9% 75,964 75,741
40% 39.7% 60,772 60,366
30% 30.1% 45,579 45,660
20% 20.1% 30,386 30,584
10% 10.1% 15,193 15,354
Active Idle   0 0
Graph of results
JVM 'WIN-VD0SLJF7GLU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,083
Calibration 2     146,818
Calibration 3     147,215
ssj_ops@calibrated=147,016
100% 100.0% 147,016 146,997
90% 90.3% 132,315 132,806
80% 80.2% 117,613 117,854
70% 70.1% 102,911 103,028
60% 59.5% 88,210 87,410
50% 50.1% 73,508 73,632
40% 40.5% 58,807 59,563
30% 30.0% 44,105 44,147
20% 20.1% 29,403 29,574
10% 9.8% 14,702 14,462
Active Idle   0 0
Graph of results
JVM 'WIN-VD0SLJF7GLU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,406
Calibration 2     147,610
Calibration 3     147,883
ssj_ops@calibrated=147,746
100% 99.4% 147,746 146,908
90% 90.0% 132,972 132,930
80% 79.9% 118,197 118,046
70% 70.5% 103,422 104,183
60% 60.5% 88,648 89,453
50% 50.0% 73,873 73,842
40% 39.9% 59,099 58,919
30% 29.9% 44,324 44,145
20% 19.8% 29,549 29,241
10% 10.1% 14,775 14,933
Active Idle   0 0
Graph of results
JVM 'WIN-VD0SLJF7GLU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,758
Calibration 2     151,707
Calibration 3     151,060
ssj_ops@calibrated=151,383
100% 98.6% 151,383 149,306
90% 90.1% 136,245 136,344
80% 80.1% 121,107 121,184
70% 70.8% 105,968 107,203
60% 59.8% 90,830 90,479
50% 49.9% 75,692 75,477
40% 40.6% 60,553 61,527
30% 30.2% 45,415 45,658
20% 19.6% 30,277 29,744
10% 9.9% 15,138 14,977
Active Idle   0 0
Graph of results
JVM 'WIN-VD0SLJF7GLU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,975
Calibration 2     150,306
Calibration 3     150,077
ssj_ops@calibrated=150,192
100% 98.9% 150,192 148,542
90% 90.1% 135,172 135,348
80% 79.5% 120,153 119,463
70% 69.8% 105,134 104,896
60% 60.1% 90,115 90,260
50% 50.7% 75,096 76,080
40% 39.9% 60,077 59,958
30% 29.9% 45,057 44,865
20% 19.9% 30,038 29,871
10% 10.1% 15,019 15,175
Active Idle   0 0
Graph of results
JVM 'WIN-VD0SLJF7GLU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,401
Calibration 2     147,695
Calibration 3     147,121
ssj_ops@calibrated=147,408
100% 99.9% 147,408 147,252
90% 90.5% 132,667 133,334
80% 79.6% 117,926 117,264
70% 70.0% 103,186 103,190
60% 59.5% 88,445 87,638
50% 50.0% 73,704 73,741
40% 40.3% 58,963 59,381
30% 29.7% 44,222 43,824
20% 19.8% 29,482 29,135
10% 10.0% 14,741 14,674
Active Idle   0 0
Graph of results
