Acer Incorporated Acer AT350 F1 (Intel Xeon X5670, 2.93 GHz) ssj_ops@100% = 905,850
ssj_ops@100% per JVM = 150,975
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Sep 14, 2010
Hardware Availability: Jun-2010 Software Availability: Dec-2009 Publication: Oct 6, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     908,719
Calibration 2     908,937
Calibration 3     909,547
ssj_ops@calibrated=909,242
100% 99.6% 909,242 905,850
90% 89.6% 818,318 815,054
80% 79.9% 727,394 726,302
70% 70.0% 636,469 636,771
60% 60.1% 545,545 546,532
50% 50.1% 454,621 455,907
40% 39.9% 363,697 362,751
30% 29.8% 272,773 271,362
20% 20.2% 181,848 183,438
10% 10.0% 90,924 90,769
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AT350 F1 (Intel Xeon X5670, 2.93 GHz)
Form Factor: Tower
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PWS-721P-1R
Disk Drive: 1 x 64GB SSD 2.5" SATA, Acer Part#KF.0640N.001
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P03
Management Firmware Version: 1.01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
=
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-4MGP0BVVQIA.001 151,723
WIN-4MGP0BVVQIA.002 150,253
WIN-4MGP0BVVQIA.003 150,750
WIN-4MGP0BVVQIA.004 154,019
WIN-4MGP0BVVQIA.005 149,964
WIN-4MGP0BVVQIA.006 149,140
ssj_ops@100% 905,850
ssj_ops@100% per JVM 150,975
Graph of per-instance results
JVM 'WIN-4MGP0BVVQIA.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,362
Calibration 2     152,751
Calibration 3     152,148
ssj_ops@calibrated=152,450
100% 99.5% 152,450 151,723
90% 90.0% 137,205 137,139
80% 80.2% 121,960 122,222
70% 70.4% 106,715 107,387
60% 60.0% 91,470 91,512
50% 50.0% 76,225 76,175
40% 40.3% 60,980 61,446
30% 29.6% 45,735 45,073
20% 20.5% 30,490 31,310
10% 9.7% 15,245 14,808
Active Idle   0 0
Graph of results
JVM 'WIN-4MGP0BVVQIA.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,395
Calibration 2     149,818
Calibration 3     150,781
ssj_ops@calibrated=150,300
100% 100.0% 150,300 150,253
90% 90.0% 135,270 135,209
80% 80.0% 120,240 120,292
70% 70.1% 105,210 105,309
60% 61.2% 90,180 92,019
50% 50.1% 75,150 75,339
40% 39.9% 60,120 60,033
30% 29.8% 45,090 44,792
20% 20.3% 30,060 30,523
10% 10.3% 15,030 15,462
Active Idle   0 0
Graph of results
JVM 'WIN-4MGP0BVVQIA.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,551
Calibration 2     151,618
Calibration 3     151,236
ssj_ops@calibrated=151,427
100% 99.6% 151,427 150,750
90% 89.4% 136,284 135,302
80% 80.2% 121,141 121,482
70% 69.6% 105,999 105,322
60% 59.6% 90,856 90,305
50% 50.3% 75,713 76,163
40% 40.1% 60,571 60,732
30% 29.8% 45,428 45,161
20% 20.0% 30,285 30,340
10% 10.0% 15,143 15,187
Active Idle   0 0
Graph of results
JVM 'WIN-4MGP0BVVQIA.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,604
Calibration 2     153,708
Calibration 3     154,712
ssj_ops@calibrated=154,210
100% 99.9% 154,210 154,019
90% 89.0% 138,789 137,291
80% 78.9% 123,368 121,631
70% 70.0% 107,947 107,898
60% 59.8% 92,526 92,179
50% 49.6% 77,105 76,484
40% 39.7% 61,684 61,281
30% 29.9% 46,263 46,110
20% 19.9% 30,842 30,619
10% 10.0% 15,421 15,367
Active Idle   0 0
Graph of results
JVM 'WIN-4MGP0BVVQIA.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,046
Calibration 2     151,280
Calibration 3     150,932
ssj_ops@calibrated=151,106
100% 99.2% 151,106 149,964
90% 89.4% 135,995 135,088
80% 79.8% 120,885 120,549
70% 69.8% 105,774 105,415
60% 60.5% 90,664 91,425
50% 50.3% 75,553 76,009
40% 39.5% 60,442 59,712
30% 30.3% 45,332 45,747
20% 20.1% 30,221 30,406
10% 9.9% 15,111 14,975
Active Idle   0 0
Graph of results
JVM 'WIN-4MGP0BVVQIA.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,761
Calibration 2     149,762
Calibration 3     149,738
ssj_ops@calibrated=149,750
100% 99.6% 149,750 149,140
90% 90.2% 134,775 135,024
80% 80.2% 119,800 120,126
70% 70.4% 104,825 105,439
60% 59.5% 89,850 89,093
50% 50.6% 74,875 75,738
40% 39.8% 59,900 59,547
30% 29.7% 44,925 44,480
20% 20.2% 29,950 30,241
10% 10.0% 14,975 14,971
Active Idle   0 0

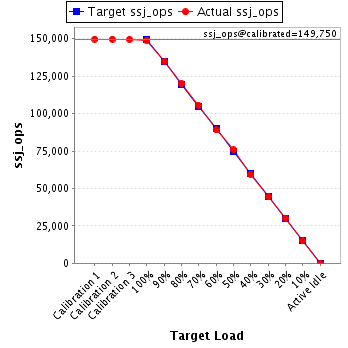

Graph of results
