Acer Incorporated Gateway GT150 F1(Intel Xeon X5670, 2.93 GHz) SPECpower_ssj2008 = 2,716 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Aug 5, 2010
Hardware Availability: Jun-2010 Software Availability: Dec-2009 Publication: Oct 6, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 245 22.6
Calibration 2 246 23.3
Calibration 3 246 23.9
100% 245 24.6
90% 230 25.0
80% 216 25.3
70% 202 25.7
60% 184 25.9
50% 167 26.1
40% 151 26.2
30% 137 26.2
20% 126 26.4
10% 114 26.4
Active Idle 65.5 26.5

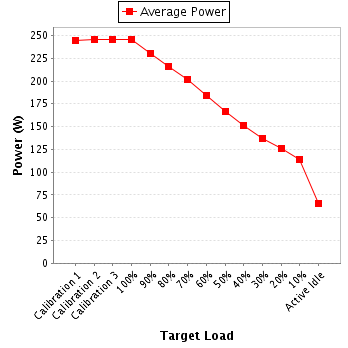

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 10-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 1.19 2.0 0.930 245 0.4%
Calibration 2 221 300.0 1.19 2.0 0.930 246 0.4%
Calibration 3 221 300.0 1.20 2.0 0.931 246 0.4%
100% 221 300.0 1.19 2.0 0.931 245 0.4%
90% 221 300.0 1.12 2.0 0.928 230 0.4%
80% 221 300.0 1.06 2.0 0.925 216 0.5%
70% 221 300.0 0.989 1.0 0.921 202 0.3%
60% 221 300.0 0.910 1.0 0.915 184 0.4%
50% 221 300.0 0.831 1.0 0.908 167 0.4%
40% 221 300.0 0.757 1.0 0.901 151 0.4%
30% 221 300.0 0.693 1.0 0.894 137 0.4%
20% 221 300.0 0.642 1.0 0.887 126 0.4%
10% 222 300.0 0.586 1.0 0.877 114 0.5%
Active Idle 222 300.0 0.368 1.0 0.804 65.5 0.7%
Power details for pwr1
