Bull SAS NovaScale R440 F2 (Intel Xeon X5670, 2.93 GHz) SPECpower_ssj2008 = 2,831 overall ssj_ops/watt
Test Sponsor: Bull SAS SPEC License #: 20 Test Method: Single Node
Tested By: Bull SAS Test Location: Les Clayes-sous-Bois, Yvelines, France Test Date: Sep 21, 2010
Hardware Availability: Jul-2010 Software Availability: Sep-2009 Publication: Oct 20, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 241 22.6
Calibration 2 246 22.7
Calibration 3 248 22.6
100% 247 22.6
90% 229 22.7
80% 211 22.7
70% 191 22.7
60% 173 22.7
50% 157 22.6
40% 144 22.6
30% 133 22.5
20% 122 22.6
10% 107 22.6
Active Idle 60.4 22.5

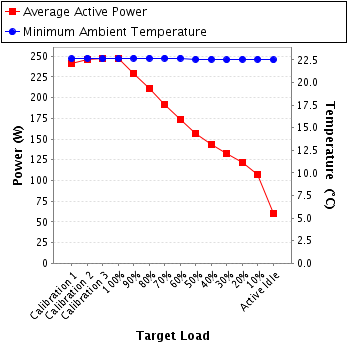

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Zimmer Electronics Systems
Model: LMG450
Serial Number: 07240901
Connectivity: RS-232
Input Connection: Default
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: ZES Zimmer Electronic Systems
Calibration Label: 07241006.3f
Date of Calibration: 15-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.30.5.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 234 250.0 1.07 2.5 0.961 241 0.6%
Calibration 2 236 250.0 1.09 2.5 0.963 246 0.6%
Calibration 3 234 250.0 1.10 2.5 0.963 248 0.6%
100% 233 250.0 1.10 2.5 0.963 247 0.6%
90% 234 250.0 1.02 2.5 0.958 229 0.6%
80% 234 250.0 0.943 2.5 0.954 211 0.6%
70% 235 250.0 0.860 1.2 0.948 191 0.4%
60% 235 250.0 0.783 1.2 0.943 173 0.4%
50% 234 250.0 0.716 1.2 0.936 157 0.5%
40% 234 250.0 0.661 1.2 0.929 144 0.5%
30% 236 250.0 0.613 1.2 0.919 133 0.5%
20% 235 250.0 0.568 1.2 0.912 122 0.6%
10% 235 250.0 0.512 0.6 0.893 107 0.3%
Active Idle 236 250.0 0.353 0.6 0.725 60.4 0.6%
Power details for pwr1
