SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| IBM Corporation System x3250 M3 | SPECpower_ssj2008 = 2,215 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | NanKang, Taipei, Taiwan | Test Date: | Sep 27, 2010 |
| Hardware Availability: | Nov-2010 | Software Availability: | Jun-2009 | Publication: | Oct 20, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

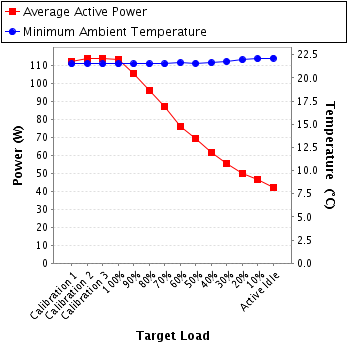

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 112 | 21.5 |
| Calibration 2 | 114 | 21.6 |
| Calibration 3 | 114 | 21.5 |
| 100% | 113 | 21.5 |
| 90% | 106 | 21.5 |
| 80% | 96.1 | 21.5 |
| 70% | 87.0 | 21.5 |
| 60% | 76.1 | 21.6 |
| 50% | 69.3 | 21.6 |
| 40% | 61.8 | 21.6 |
| 30% | 55.4 | 21.8 |
| 20% | 49.7 | 21.9 |
| 10% | 46.7 | 22.1 |
| Active Idle | 42.3 | 22.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-04-BAC-377-03 |
| Date of Calibration: | 23-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |

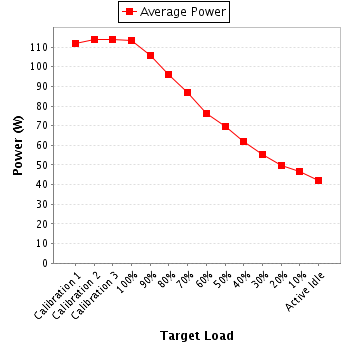

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 0.569 | 1.0 | 0.948 | 112 | 0.4% |
| Calibration 2 | 207 | 300.0 | 0.579 | 1.0 | 0.950 | 114 | 0.4% |
| Calibration 3 | 207 | 300.0 | 0.578 | 1.0 | 0.950 | 114 | 0.4% |
| 100% | 207 | 300.0 | 0.578 | 1.0 | 0.950 | 113 | 0.4% |
| 90% | 208 | 300.0 | 0.541 | 1.0 | 0.940 | 106 | 0.5% |
| 80% | 208 | 300.0 | 0.499 | 1.0 | 0.928 | 96.1 | 0.5% |
| 70% | 208 | 300.0 | 0.458 | 0.5 | 0.914 | 87.0 | 0.4% |
| 60% | 208 | 300.0 | 0.409 | 0.5 | 0.896 | 76.1 | 0.4% |
| 50% | 208 | 300.0 | 0.378 | 0.5 | 0.881 | 69.3 | 0.4% |
| 40% | 209 | 300.0 | 0.345 | 0.5 | 0.860 | 61.8 | 0.5% |
| 30% | 209 | 300.0 | 0.318 | 0.5 | 0.836 | 55.4 | 0.5% |
| 20% | 208 | 300.0 | 0.294 | 0.5 | 0.811 | 49.7 | 0.5% |
| 10% | 208 | 300.0 | 0.282 | 0.5 | 0.795 | 46.7 | 0.6% |
| Active Idle | 208 | 300.0 | 0.264 | 0.5 | 0.769 | 42.3 | 0.6% |
