Acer Incorporated Gateway GW2000h-GW175h F1 | ssj_ops@100% = 930,228 ssj_ops@100% per JVM = 232,557 |
||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Oct 5, 2010 |
Hardware Availability: | Aug-2010 | Software Availability: | Dec-2009 | Publication: | Nov 10, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 937,137 | ||
Calibration 2 | 936,669 | ||
Calibration 3 | 933,783 | ||
ssj_ops@calibrated=935,226 | |||
100% | 99.5% | 935,226 | 930,228 |
90% | 89.9% | 841,703 | 840,495 |
80% | 80.2% | 748,181 | 750,144 |
70% | 70.3% | 654,658 | 657,602 |
60% | 60.2% | 561,135 | 563,295 |
50% | 50.1% | 467,613 | 468,795 |
40% | 40.0% | 374,090 | 374,275 |
30% | 29.9% | 280,568 | 279,224 |
20% | 20.0% | 187,045 | 187,380 |
10% | 10.1% | 93,523 | 94,643 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 4 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Gateway GW2000h-GW175h F1 |
Form Factor: | 1U |
CPU Name: | AMD Opteron 6174 |
CPU Characteristics: | 12-Core, 2.20 GHz, 12 MB L3 cache |
CPU Frequency (MHz): | 2200 |
CPU(s) Enabled: | 24 cores, 2 chips, 12 cores/chip |
Hardware Threads: | 24 (1 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
Tertiary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 6 cores |
Other Cache: | None |
Memory Amount (GB): | 16 |
# and size of DIMM: | 8 x 2048 MB |
Memory Details: | 2GB 1Rx8 PC3-10600E; slots 1A, 2A, 3A and 4A populated on each processor |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | 1 x 64GB SSD 2.5" SATA, Acer P/N:KF.0640N.001 |
Disk Controller: | onboard SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x dual-port Intel 82576EB Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | USB |
Mouse: | USB |
Monitor: | Direct |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power save enabled in OS |
Operating System (OS): | Windows Server 2008, Enterprise Edition |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [00003F, 000FC0, 03F000, FC0000] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 1875 |
JVM Maximum Heap (MB): | 1875 |
JVM Address Bits: | 64 |
Boot Firmware Version: | T01 |
Management Firmware Version: | 1.00 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64bit |

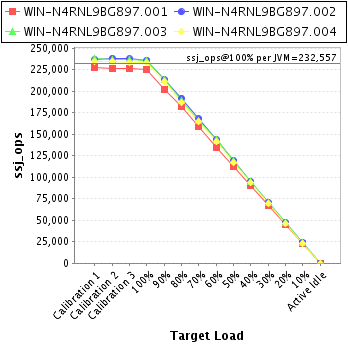

JVM Instance | ssj_ops@100% |
---|---|
WIN-N4RNL9BG897.001 | 225,749 |
WIN-N4RNL9BG897.002 | 236,149 |
WIN-N4RNL9BG897.003 | 235,170 |
WIN-N4RNL9BG897.004 | 233,159 |
ssj_ops@100% | 930,228 |
ssj_ops@100% per JVM | 232,557 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 227,191 | ||
Calibration 2 | 226,585 | ||
Calibration 3 | 225,888 | ||
ssj_ops@calibrated=226,236 | |||
100% | 99.8% | 226,236 | 225,749 |
90% | 89.5% | 203,613 | 202,382 |
80% | 80.4% | 180,989 | 182,002 |
70% | 70.5% | 158,365 | 159,487 |
60% | 59.7% | 135,742 | 135,033 |
50% | 49.9% | 113,118 | 112,820 |
40% | 40.1% | 90,495 | 90,708 |
30% | 29.8% | 67,871 | 67,418 |
20% | 20.0% | 45,247 | 45,355 |
10% | 10.2% | 22,624 | 23,109 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 236,944 | ||
Calibration 2 | 238,329 | ||
Calibration 3 | 237,558 | ||
ssj_ops@calibrated=237,944 | |||
100% | 99.2% | 237,944 | 236,149 |
90% | 89.6% | 214,149 | 213,205 |
80% | 80.6% | 190,355 | 191,894 |
70% | 70.5% | 166,560 | 167,861 |
60% | 60.2% | 142,766 | 143,342 |
50% | 50.3% | 118,972 | 119,699 |
40% | 40.0% | 95,177 | 95,225 |
30% | 29.9% | 71,383 | 71,102 |
20% | 20.0% | 47,589 | 47,511 |
10% | 10.2% | 23,794 | 24,208 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 238,193 | ||
Calibration 2 | 236,986 | ||
Calibration 3 | 236,544 | ||
ssj_ops@calibrated=236,765 | |||
100% | 99.3% | 236,765 | 235,170 |
90% | 90.2% | 213,089 | 213,603 |
80% | 79.8% | 189,412 | 188,859 |
70% | 70.0% | 165,736 | 165,794 |
60% | 60.7% | 142,059 | 143,750 |
50% | 50.4% | 118,383 | 119,349 |
40% | 40.1% | 94,706 | 94,869 |
30% | 29.9% | 71,030 | 70,767 |
20% | 20.2% | 47,353 | 47,936 |
10% | 10.1% | 23,677 | 23,842 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 234,809 | ||
Calibration 2 | 234,769 | ||
Calibration 3 | 233,793 | ||
ssj_ops@calibrated=234,281 | |||
100% | 99.5% | 234,281 | 233,159 |
90% | 90.2% | 210,853 | 211,305 |
80% | 80.0% | 187,425 | 187,389 |
70% | 70.2% | 163,996 | 164,460 |
60% | 60.3% | 140,568 | 141,171 |
50% | 49.9% | 117,140 | 116,927 |
40% | 39.9% | 93,712 | 93,472 |
30% | 29.9% | 70,284 | 69,937 |
20% | 19.9% | 46,856 | 46,578 |
10% | 10.0% | 23,428 | 23,484 |
Active Idle | 0 | 0 |
