Acer Incorporated Gateway GT115 F1 (AMD Opteron 4164EE, 1.80 GHz) | SPECpower_ssj2008 = 1,971 overall ssj_ops/watt | ||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, ROC | Test Date: | Sep 29, 2010 |
Hardware Availability: | Oct-2010 | Software Availability: | Sep-2009 | Publication: | Nov 3, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

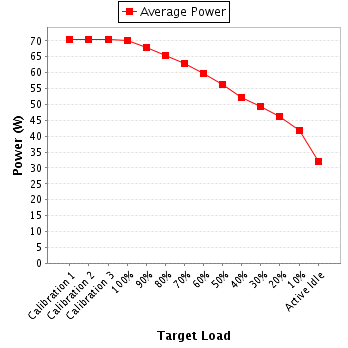

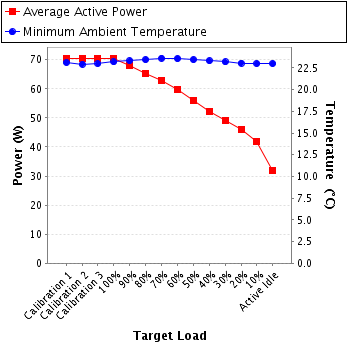

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 70.3 | 23.1 |
Calibration 2 | 70.5 | 22.9 |
Calibration 3 | 70.5 | 23.0 |
100% | 70.3 | 23.2 |
90% | 68.1 | 23.3 |
80% | 65.3 | 23.4 |
70% | 62.8 | 23.6 |
60% | 59.6 | 23.6 |
50% | 56.1 | 23.4 |
40% | 52.3 | 23.3 |
30% | 49.2 | 23.2 |
20% | 46.2 | 23.1 |
10% | 41.7 | 23.0 |
Active Idle | 32.0 | 23.0 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91GC17356 |
Connectivity: | RS-232-C |
Input Connection: | Default |
Calibration Institute: | Tai Yi Electronics & Surveillance Co., Ltd. |
Accredited by: | Tai Yi Electronics & Surveillance Co., Ltd. |
Calibration Label: | T9802230701 |
Date of Calibration: | 30-Mar-2010 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.0-7071d9e7 |
Setup Description: | SUT Power Supply |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Temperature@lert |
Model: | Temperature@lert |
Driver Version: | 2.6.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 50 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 115 | 150.0 | 0.623 | 1.0 | 0.978 | 70.3 | 0.4% |
Calibration 2 | 115 | 150.0 | 0.625 | 1.0 | 0.978 | 70.5 | 0.4% |
Calibration 3 | 115 | 150.0 | 0.625 | 1.0 | 0.978 | 70.5 | 0.4% |
100% | 115 | 150.0 | 0.623 | 1.0 | 0.978 | 70.3 | 0.4% |
90% | 115 | 150.0 | 0.603 | 1.0 | 0.978 | 68.1 | 0.4% |
80% | 115 | 150.0 | 0.580 | 1.0 | 0.977 | 65.3 | 0.4% |
70% | 115 | 150.0 | 0.558 | 1.0 | 0.976 | 62.8 | 0.4% |
60% | 115 | 150.0 | 0.532 | 1.0 | 0.973 | 59.6 | 0.4% |
50% | 115 | 150.0 | 0.503 | 1.0 | 0.968 | 56.1 | 0.4% |
40% | 115 | 150.0 | 0.470 | 1.0 | 0.965 | 52.3 | 0.4% |
30% | 115 | 150.0 | 0.443 | 1.0 | 0.964 | 49.2 | 0.5% |
20% | 115 | 150.0 | 0.415 | 1.0 | 0.963 | 46.2 | 0.5% |
10% | 116 | 150.0 | 0.378 | 1.0 | 0.956 | 41.7 | 0.5% |
Active Idle | 116 | 150.0 | 0.292 | 1.0 | 0.948 | 32.0 | 0.6% |
