Acer Incorporated Gateway GR385 F1 (AMD Opteron 6174, 2.20 GHz) ssj_ops@100% = 932,415
ssj_ops@100% per JVM = 233,104
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Oct 19, 2010
Hardware Availability: Oct-2010 Software Availability: Dec-2009 Publication: Nov 18, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     939,698
Calibration 2     940,515
Calibration 3     938,543
ssj_ops@calibrated=939,529
100% 99.2% 939,529 932,415
90% 90.2% 845,576 847,493
80% 80.0% 751,623 751,423
70% 69.8% 657,670 655,635
60% 60.0% 563,717 563,895
50% 50.0% 469,765 470,210
40% 40.1% 375,812 376,403
30% 29.9% 281,859 281,052
20% 20.0% 187,906 187,838
10% 10.0% 93,953 94,104
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR385 F1 (AMD Opteron 6174, 2.20 GHz)
Form Factor: 2U
CPU Name: AMD Opteron 6174
CPU Characteristics: Twelve Core, 2.20 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 8 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PWS-721P-1R
Disk Drive: 1 x 64GB SSD 2.5" SATA, Acer P/N:KF.0640N.001
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/2
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [00003F, 000FC0, 03F000, FC0000]
JVM Instances: 4
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: T01
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-JDSB2B638IF.001 232,062
WIN-JDSB2B638IF.002 234,584
WIN-JDSB2B638IF.003 234,457
WIN-JDSB2B638IF.004 231,312
ssj_ops@100% 932,415
ssj_ops@100% per JVM 233,104

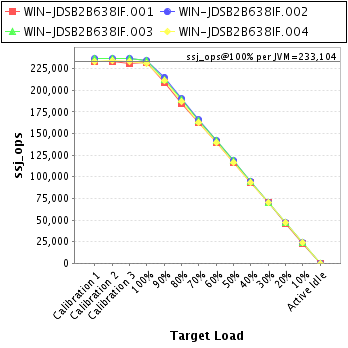

Graph of per-instance results
JVM 'WIN-JDSB2B638IF.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     233,423
Calibration 2     232,997
Calibration 3     231,456
ssj_ops@calibrated=232,226
100% 99.9% 232,226 232,062
90% 89.8% 209,004 208,486
80% 79.5% 185,781 184,547
70% 69.9% 162,558 162,317
60% 60.3% 139,336 139,969
50% 50.0% 116,113 116,135
40% 40.3% 92,891 93,493
30% 30.3% 69,668 70,424
20% 20.0% 46,445 46,484
10% 10.0% 23,223 23,116
Active Idle   0 0
Graph of results
JVM 'WIN-JDSB2B638IF.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,497
Calibration 2     236,606
Calibration 3     237,145
ssj_ops@calibrated=236,875
100% 99.0% 236,875 234,584
90% 90.8% 213,188 215,106
80% 80.3% 189,500 190,285
70% 70.0% 165,813 165,696
60% 60.1% 142,125 142,259
50% 50.2% 118,438 118,811
40% 40.0% 94,750 94,837
30% 29.7% 71,063 70,253
20% 19.8% 47,375 46,813
10% 10.0% 23,688 23,638
Active Idle   0 0
Graph of results
JVM 'WIN-JDSB2B638IF.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     236,726
Calibration 2     236,850
Calibration 3     236,433
ssj_ops@calibrated=236,642
100% 99.1% 236,642 234,457
90% 89.9% 212,977 212,817
80% 80.2% 189,313 189,712
70% 69.7% 165,649 164,921
60% 60.1% 141,985 142,293
50% 50.1% 118,321 118,607
40% 40.0% 94,657 94,605
30% 29.5% 70,992 69,764
20% 20.1% 47,328 47,493
10% 10.0% 23,664 23,776
Active Idle   0 0
Graph of results
JVM 'WIN-JDSB2B638IF.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     233,051
Calibration 2     234,062
Calibration 3     233,509
ssj_ops@calibrated=233,786
100% 98.9% 233,786 231,312
90% 90.3% 210,407 211,083
80% 79.9% 187,029 186,880
70% 69.6% 163,650 162,701
60% 59.6% 140,271 139,374
50% 49.9% 116,893 116,657
40% 40.0% 93,514 93,467
30% 30.2% 70,136 70,611
20% 20.1% 46,757 47,047
10% 10.1% 23,379 23,574
Active Idle   0 0
Graph of results
