Hitachi, Ltd. HA8000/SS10 (DK1) ssj_ops@100% = 149,942
ssj_ops@100% per JVM = 74,971
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jan 27, 2011
Hardware Availability: Dec-2010 Software Availability: Jun-2010 Publication: Feb 23, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,769
Calibration 2     150,025
Calibration 3     150,506
ssj_ops@calibrated=150,266
100% 99.8% 150,266 149,942
90% 89.9% 135,239 135,062
80% 80.0% 120,213 120,278
70% 70.3% 105,186 105,649
60% 59.5% 90,159 89,441
50% 49.3% 75,133 74,153
40% 39.3% 60,106 59,020
30% 30.0% 45,080 45,119
20% 19.7% 30,053 29,662
10% 10.2% 15,027 15,254
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/SS10 (DK1)
Form Factor: Tower
CPU Name: Intel Core i3-540
CPU Characteristics: Dual Core, 3.06GHz, 4MB L3 Cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600E ECC CL9; slots DIMM_#1 and DIMM_#2 populated
Power Supply Quantity and Rating (W): 1 x 250
Power Supply Details: Lead Year TFX-2582
Disk Drive: 1 x 250GB SATA (Hitachi P/N:GQ-UH72504S)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82574L Gigabit Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1875m -Xmx1875m -Xmn1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3,C]
JVM Instances: 2
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 1.0.4109
Management Firmware Version: None
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-A3JILGHV5LP.001 74,889
WIN-A3JILGHV5LP.002 75,053
ssj_ops@100% 149,942
ssj_ops@100% per JVM 74,971

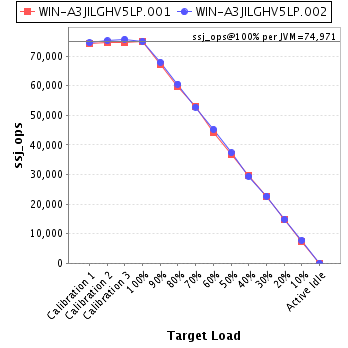

Graph of per-instance results
JVM 'WIN-A3JILGHV5LP.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,243
Calibration 2     74,785
Calibration 3     74,759
ssj_ops@calibrated=74,772
100% 100.2% 74,772 74,889
90% 89.8% 67,295 67,115
80% 79.8% 59,818 59,700
70% 70.7% 52,340 52,837
60% 59.1% 44,863 44,162
50% 49.2% 37,386 36,770
40% 39.7% 29,909 29,654
30% 30.0% 22,432 22,458
20% 19.8% 14,954 14,787
10% 10.0% 7,477 7,467
Active Idle   0 0
Graph of results
JVM 'WIN-A3JILGHV5LP.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,526
Calibration 2     75,241
Calibration 3     75,747
ssj_ops@calibrated=75,494
100% 99.4% 75,494 75,053
90% 90.0% 67,944 67,946
80% 80.2% 60,395 60,578
70% 70.0% 52,846 52,812
60% 60.0% 45,296 45,279
50% 49.5% 37,747 37,382
40% 38.9% 30,197 29,366
30% 30.0% 22,648 22,661
20% 19.7% 15,099 14,875
10% 10.3% 7,549 7,787
Active Idle   0 0
Graph of results
