SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX300 S6 (Intel Xeon X5675) | SPECpower_ssj2008 = 2,989 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Dec 7, 2010 |
| Hardware Availability: | Feb-2010 | Software Availability: | Nov-2009 | Publication: | Mar 9, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

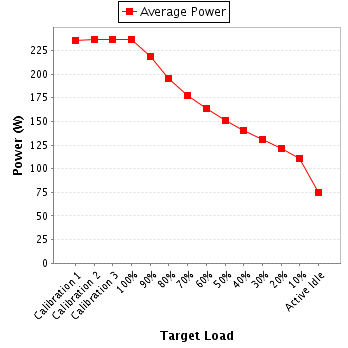

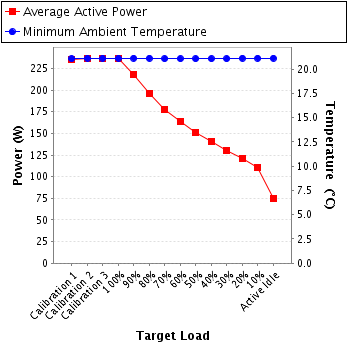

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 236 | 21.1 |
| Calibration 2 | 237 | 21.1 |
| Calibration 3 | 237 | 21.1 |
| 100% | 236 | 21.1 |
| 90% | 218 | 21.1 |
| 80% | 196 | 21.1 |
| 70% | 177 | 21.1 |
| 60% | 163 | 21.1 |
| 50% | 151 | 21.1 |
| 40% | 141 | 21.1 |
| 30% | 131 | 21.1 |
| 20% | 121 | 21.1 |
| 10% | 110 | 21.1 |
| Active Idle | 74.8 | 21.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91HA48097 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Kalibrierdienst Stenger |
| Calibration Label: | 10119075 |
| Date of Calibration: | 16-Nov-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 227 | 300.0 | 1.10 | 2.0 | 0.946 | 236 | 0.4% |
| Calibration 2 | 227 | 300.0 | 1.10 | 2.0 | 0.947 | 237 | 0.4% |
| Calibration 3 | 227 | 300.0 | 1.10 | 2.0 | 0.947 | 237 | 0.4% |
| 100% | 227 | 300.0 | 1.10 | 2.0 | 0.947 | 236 | 0.4% |
| 90% | 227 | 300.0 | 1.02 | 1.0 | 0.941 | 218 | 0.3% |
| 80% | 226 | 300.0 | 0.928 | 1.0 | 0.932 | 196 | 0.3% |
| 70% | 227 | 300.0 | 0.847 | 1.0 | 0.923 | 177 | 0.4% |
| 60% | 229 | 300.0 | 0.783 | 1.0 | 0.913 | 163 | 0.4% |
| 50% | 229 | 300.0 | 0.731 | 1.0 | 0.904 | 151 | 0.4% |
| 40% | 229 | 300.0 | 0.687 | 1.0 | 0.893 | 141 | 0.4% |
| 30% | 229 | 300.0 | 0.646 | 1.0 | 0.882 | 131 | 0.4% |
| 20% | 230 | 300.0 | 0.608 | 1.0 | 0.869 | 121 | 0.5% |
| 10% | 230 | 300.0 | 0.566 | 1.0 | 0.847 | 110 | 0.5% |
| Active Idle | 230 | 300.0 | 0.423 | 0.5 | 0.768 | 74.8 | 0.5% |
