Fujitsu PRIMERGY TX300 S6 (Intel Xeon X5675) ssj_ops@100% = 930,315
ssj_ops@100% per JVM = 155,052
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Dec 7, 2010
Hardware Availability: Feb-2010 Software Availability: Nov-2009 Publication: Mar 9, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     933,887
Calibration 2     932,964
Calibration 3     934,046
ssj_ops@calibrated=933,505
100% 99.7% 933,505 930,315
90% 90.5% 840,154 844,613
80% 80.2% 746,804 748,822
70% 69.8% 653,453 651,271
60% 60.4% 560,103 563,397
50% 50.3% 466,752 469,527
40% 40.1% 373,402 374,284
30% 29.9% 280,051 279,445
20% 19.9% 186,701 186,107
10% 9.9% 93,350 92,352
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX300 S6 (Intel Xeon X5675)
Form Factor: Tower
CPU Name: Intel Xeon X5675
CPU Characteristics: Hexa-Core, 3.06GHz, 12MB L3 Cache
CPU Frequency (MHz): 3066
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC CL9; slots 1A, 1B, 1C, 1D, 1E, 1F populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F556-E10
Disk Drive: 1 x 32GB SSD (Fujitsu S26361-F3298-E32)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82575EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1300m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.08
Management Firmware Version: 5.22A
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-A33TEI5PLE1.001 152,694
WIN-A33TEI5PLE1.002 154,034
WIN-A33TEI5PLE1.003 157,704
WIN-A33TEI5PLE1.004 153,125
WIN-A33TEI5PLE1.005 156,740
WIN-A33TEI5PLE1.006 156,019
ssj_ops@100% 930,315
ssj_ops@100% per JVM 155,052

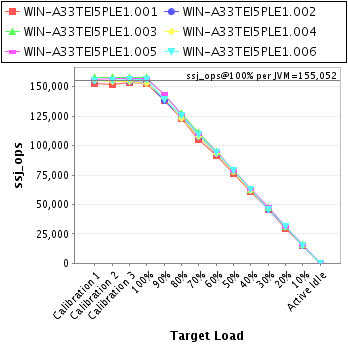

Graph of per-instance results
JVM 'WIN-A33TEI5PLE1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,053
Calibration 2     152,207
Calibration 3     153,406
ssj_ops@calibrated=152,806
100% 99.9% 152,806 152,694
90% 90.8% 137,526 138,678
80% 80.4% 122,245 122,781
70% 69.0% 106,964 105,493
60% 60.2% 91,684 91,969
50% 50.1% 76,403 76,555
40% 39.9% 61,122 60,994
30% 30.0% 45,842 45,836
20% 19.5% 30,561 29,747
10% 9.9% 15,281 15,171
Active Idle   0 0
Graph of results
JVM 'WIN-A33TEI5PLE1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,553
Calibration 2     155,238
Calibration 3     154,104
ssj_ops@calibrated=154,671
100% 99.6% 154,671 154,034
90% 89.6% 139,204 138,637
80% 80.1% 123,737 123,835
70% 69.8% 108,270 107,900
60% 60.5% 92,803 93,603
50% 50.8% 77,336 78,605
40% 40.4% 61,869 62,420
30% 29.7% 46,401 45,880
20% 20.3% 30,934 31,420
10% 9.8% 15,467 15,191
Active Idle   0 0
Graph of results
JVM 'WIN-A33TEI5PLE1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,089
Calibration 2     158,171
Calibration 3     157,799
ssj_ops@calibrated=157,985
100% 99.8% 157,985 157,704
90% 90.4% 142,186 142,833
80% 80.5% 126,388 127,165
70% 70.2% 110,589 110,912
60% 60.4% 94,791 95,406
50% 50.0% 78,992 78,949
40% 39.7% 63,194 62,791
30% 30.2% 47,395 47,771
20% 19.7% 31,597 31,201
10% 10.0% 15,798 15,833
Active Idle   0 0
Graph of results
JVM 'WIN-A33TEI5PLE1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,159
Calibration 2     154,915
Calibration 3     154,713
ssj_ops@calibrated=154,814
100% 98.9% 154,814 153,125
90% 91.2% 139,332 141,116
80% 79.4% 123,851 122,918
70% 69.7% 108,370 107,959
60% 60.1% 92,888 92,988
50% 50.1% 77,407 77,631
40% 39.8% 61,925 61,631
30% 30.2% 46,444 46,742
20% 20.2% 30,963 31,313
10% 9.8% 15,481 15,209
Active Idle   0 0
Graph of results
JVM 'WIN-A33TEI5PLE1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,457
Calibration 2     156,897
Calibration 3     157,391
ssj_ops@calibrated=157,144
100% 99.7% 157,144 156,740
90% 91.5% 141,430 143,746
80% 80.7% 125,715 126,839
70% 69.9% 110,001 109,867
60% 60.5% 94,287 95,027
50% 50.0% 78,572 78,576
40% 40.4% 62,858 63,417
30% 30.2% 47,143 47,404
20% 19.9% 31,429 31,204
10% 9.9% 15,714 15,558
Active Idle   0 0
Graph of results
JVM 'WIN-A33TEI5PLE1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,576
Calibration 2     155,537
Calibration 3     156,633
ssj_ops@calibrated=156,085
100% 100.0% 156,085 156,019
90% 89.4% 140,476 139,602
80% 80.3% 124,868 125,284
70% 69.9% 109,259 109,140
60% 60.5% 93,651 94,403
50% 50.7% 78,042 79,211
40% 40.4% 62,434 63,031
30% 29.4% 46,825 45,812
20% 20.0% 31,217 31,223
10% 9.9% 15,608 15,389
Active Idle   0 0
Graph of results
