SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Acer Incorporated Gateway GW2000h-GW170h F1 | SPECpower_ssj2008 = 2,795 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Various |
| Hardware Availability: | Feb-2011 | Software Availability: | Dec-2009 | Publication: | Mar 23, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

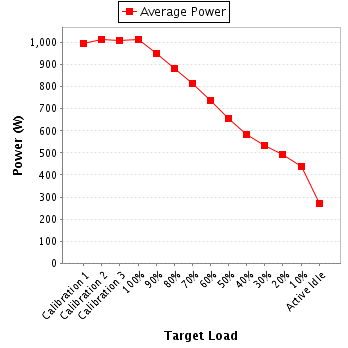

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 997 | 24.1 |
| Calibration 2 | 1,015 | 24.4 |
| Calibration 3 | 1,011 | 24.7 |
| 100% | 1,014 | 24.9 |
| 90% | 948 | 24.6 |
| 80% | 883 | 24.5 |
| 70% | 814 | 24.6 |
| 60% | 736 | 24.4 |
| 50% | 654 | 24.4 |
| 40% | 585 | 24.4 |
| 30% | 533 | 24.4 |
| 20% | 491 | 24.2 |
| 10% | 440 | 24.2 |
| Active Idle | 269 | 24.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-06-BAC-041-01 |
| Date of Calibration: | 10-Jun-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 213 | 300.0 | 4.72 | 10.0 | 0.993 | 997 | 0.4% |
| Calibration 2 | 212 | 300.0 | 4.82 | 10.0 | 0.993 | 1,015 | 0.4% |
| Calibration 3 | 212 | 300.0 | 4.80 | 10.0 | 0.993 | 1,011 | 0.4% |
| 100% | 212 | 300.0 | 4.82 | 10.0 | 0.993 | 1,014 | 0.4% |
| 90% | 212 | 300.0 | 4.50 | 10.0 | 0.992 | 948 | 0.4% |
| 80% | 212 | 300.0 | 4.19 | 10.0 | 0.991 | 883 | 0.5% |
| 70% | 212 | 300.0 | 3.88 | 5.0 | 0.990 | 814 | 0.3% |
| 60% | 213 | 300.0 | 3.50 | 5.0 | 0.988 | 736 | 0.3% |
| 50% | 213 | 300.0 | 3.12 | 5.0 | 0.986 | 654 | 0.4% |
| 40% | 214 | 300.0 | 2.78 | 5.0 | 0.984 | 585 | 0.4% |
| 30% | 213 | 300.0 | 2.54 | 5.0 | 0.982 | 533 | 0.4% |
| 20% | 214 | 300.0 | 2.34 | 2.0 | 0.980 | 491 | 0.3% |
| 10% | 215 | 300.0 | 2.10 | 2.0 | 0.977 | 440 | 0.3% |
| Active Idle | 216 | 300.0 | 1.30 | 2.0 | 0.959 | 269 | 0.4% |
