Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 128,931
ssj_ops@100% per JVM = 64,466
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     127,432
Calibration 2     129,188
Calibration 3     129,282
ssj_ops@calibrated=129,235
100% 99.8% 129,235 128,931
90% 89.0% 116,312 114,995
80% 79.8% 103,388 103,114
70% 70.1% 90,465 90,572
60% 60.1% 77,541 77,616
50% 50.0% 64,618 64,664
40% 40.1% 51,694 51,857
30% 30.0% 38,771 38,723
20% 19.9% 25,847 25,660
10% 10.0% 12,924 12,983
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI11.001 64,350
HITACHI11.002 64,581
ssj_ops@100% 128,931
ssj_ops@100% per JVM 64,466

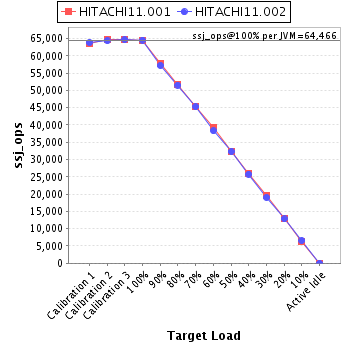

Graph of per-instance results
JVM 'HITACHI11.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,581
Calibration 2     64,830
Calibration 3     64,612
ssj_ops@calibrated=64,721
100% 99.4% 64,721 64,350
90% 89.3% 58,249 57,768
80% 79.7% 51,777 51,586
70% 70.0% 45,305 45,304
60% 60.7% 38,833 39,313
50% 50.0% 32,361 32,335
40% 40.3% 25,888 26,066
30% 30.4% 19,416 19,648
20% 19.8% 12,944 12,842
10% 9.9% 6,472 6,412
Active Idle   0 0
Graph of results
JVM 'HITACHI11.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     63,851
Calibration 2     64,358
Calibration 3     64,670
ssj_ops@calibrated=64,514
100% 100.1% 64,514 64,581
90% 88.7% 58,063 57,226
80% 79.9% 51,611 51,528
70% 70.2% 45,160 45,268
60% 59.4% 38,708 38,303
50% 50.1% 32,257 32,329
40% 40.0% 25,806 25,791
30% 29.6% 19,354 19,074
20% 19.9% 12,903 12,818
10% 10.2% 6,451 6,571
Active Idle   0 0
Graph of results
